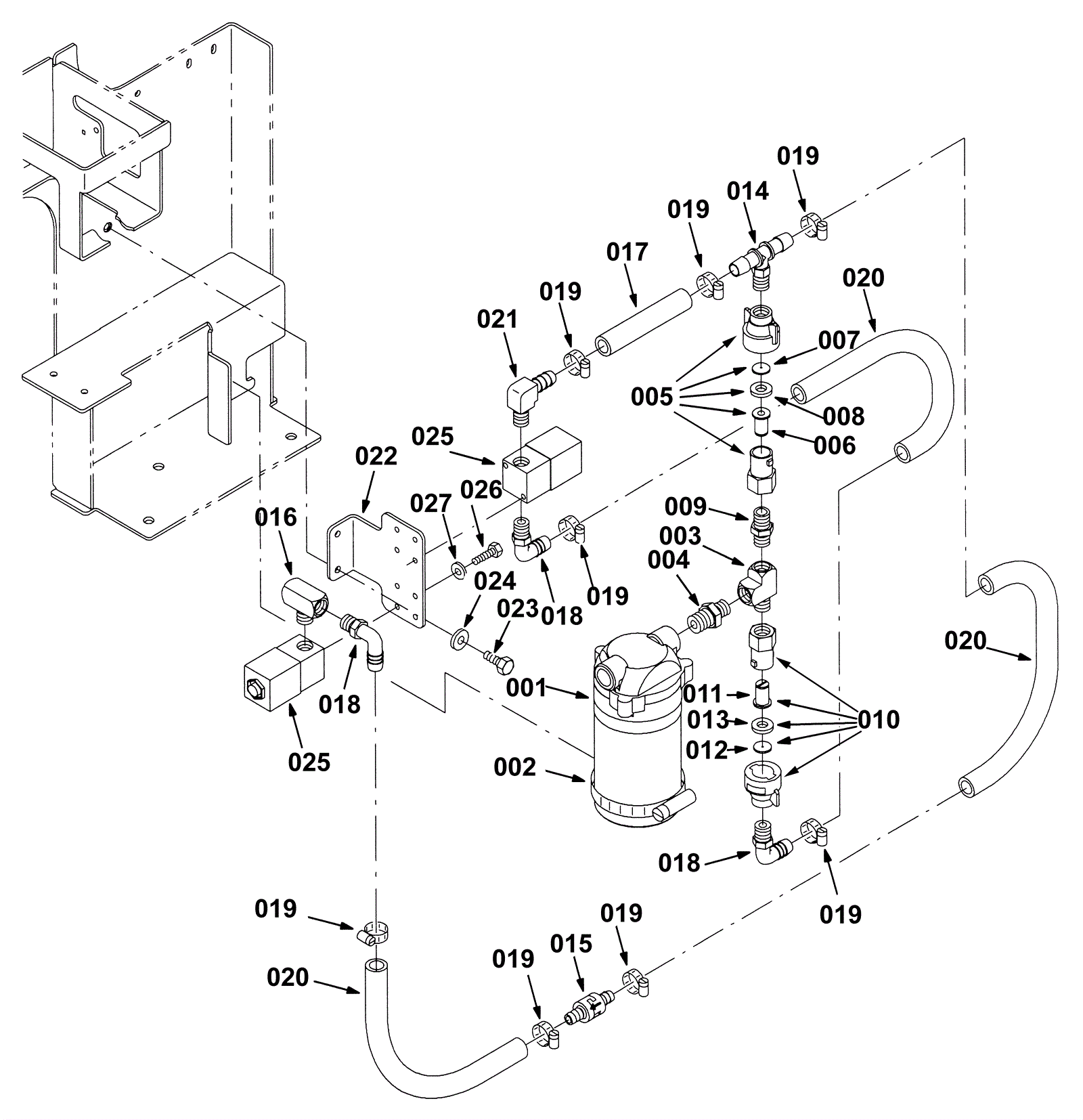

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-5242
|
36V solution pump |
1 |
|
|
002 |
997-2009
|
Hose clamp |
1 |
|
|
003 |
175-6029
|
Straight tee |
1 |
|
|
004 |
175-9699
|
Straight brass fitting |
1 |
|
|
005 |
275-8327
|
FITTING ASSY, CAP, 0.067B, PF04 (Tennant Industrial) |
1 |
(includes 6-8) |
|
006 |
175-5248
|
Mesh screen |
1 |
|
|
007 |
275-8328
|
PLATE, ORIFICE, 0.067ID (Tennant Industrial) |
1 |
|
|
008 |
175-5246
|
Washer 11/32 x 3/4 x 1/8 flat viton |
1 |
|
|
009 |
275-8329
|
FITTING, BRS, STR, PM04/PM04 (Tennant Industrial) |
1 |
|
|
010 |
275-8330
|
FITTING ASSY, CAP, 0.086B, PF04 (Tennant Industrial) |
1 |
(includes 11-13) |
|
011 |
175-5248
|
Mesh screen |
1 |
|
|
012 |
275-8331
|
PLATE, ORIFICE, 0.086ID (Tennant Industrial) |
1 |
|
|
013 |
175-5246
|
Washer 11/32 x 3/4 x 1/8 flat viton |
1 |
|
|
014 |
275-4755
|
Tee fitting |
1 |
|
|
015 |
275-8332
|
VALVE, CHECK, 2GPM .5PSI BM08/BM08 (Tennant Industrial) |
1 |
|
|
016 |
175-5243
|
Brass tee fitting |
1 |
|
|
017 |
175-5249
|
Hose 1/2 x 1 foot (Tennant Industrial) |
1 |
|
|
018 |
175-5228
|
Plastic fitting |
3 |
|
|
019 |
175-6081
|
Hose clamp |
8 |
|
|
020 |
175-5229
|
HOSE, AFMKT, PVC, BRD, 0.50ID, 02FT, CLR (Tennant Industria |
3 |
|
|
021 |
175-5226
|
Brass fitting |
1 |
|
|
022 |
275-8333
|
BRACKET, MTG, VALVE, SOLENOID (Tennant Industrial) |
1 |
|
|
023 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
|
024 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
025 |
275-9293
|
VALVE, WATER, SOLENOID, 36VDC 6.0MM PF04 (Tennant Industria |
2 |
|
|
026 |
275-0923
|
Screw M5 - 7/8 hex lock |
4 |
|
|
027 |
999-0006
|
Washer 3/16 flat zinc plated |
4 |
|
|
