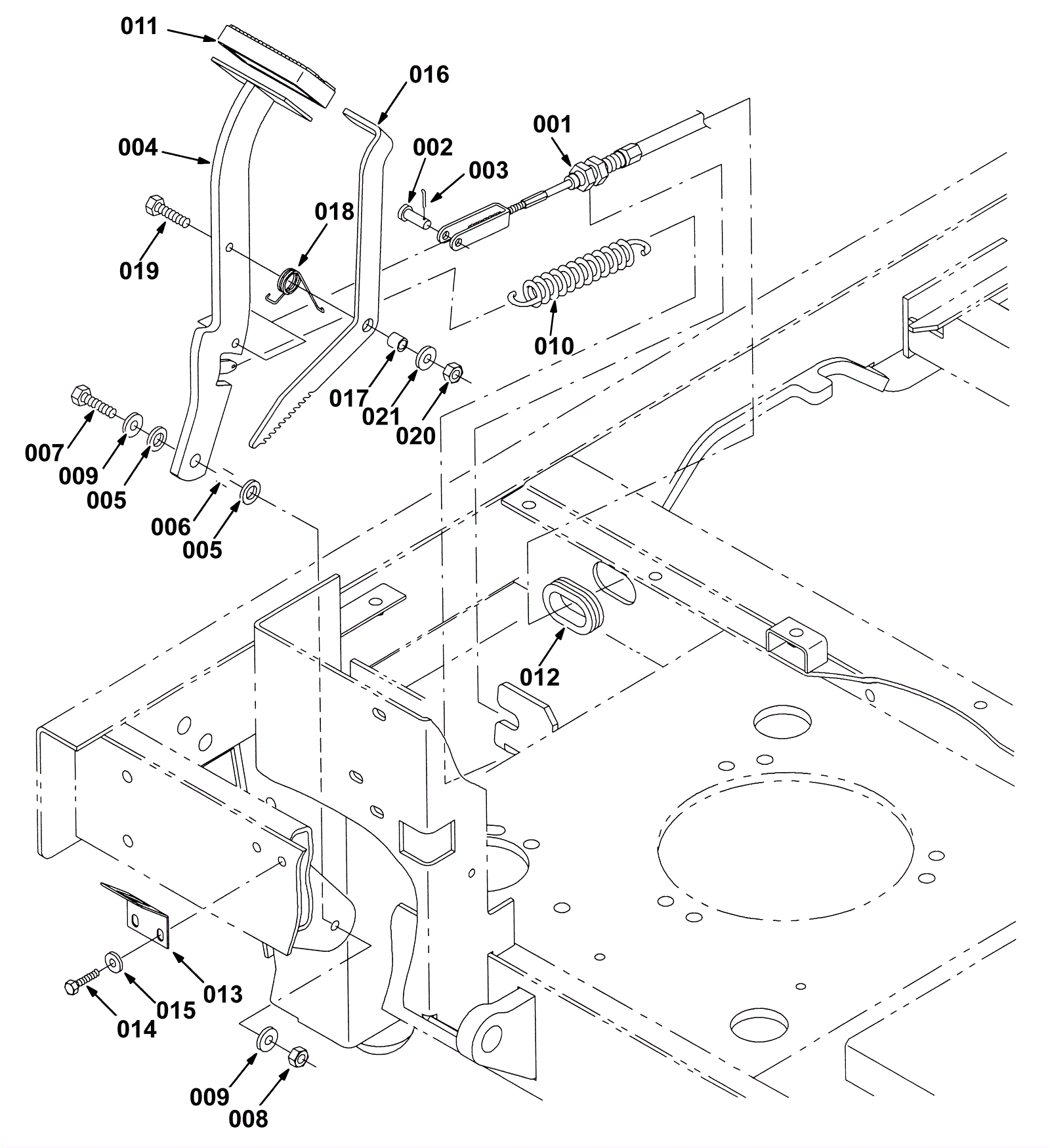

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-0627
|
CABLE, PULL, 049.0L, .3CLEVIS /.3CLEVIS (Tennant Industrial |
1 |
|
|
002 |
175-3351
|
Clevis pin |
1 |
|
|
003 |
175-6176
|
Cotter pin |
1 |
|
|
004a |
275-7957
|
Iron lever weldment (Tennant Industrial) |
1 |
(after SN 006998) |
|
004b |
275-7957
|
Iron lever weldment (Tennant Industrial) |
1 |
(after SN 006999) |
|
005 |
175-3354
|
Thrust washer |
2 |
|
|
006 |
175-2249
|
Sleeve |
1 |
|
|
007 |
999-0787
|
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
1 |
|
|
008 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
009 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
010 |
175-0629
|
SPRING, EXTN, 1.00OD 0.11WIR 05.5L (Tennant Industrial) |
1 |
|
|
011 |
175-3279
|
Pedal pad |
1 |
|
|
012 |
175-2366
|
Rubber grommet |
1 |
|
|
013 |
175-0630
|
PLATE, STOP (Tennant Industrial) |
1 |
|
|
014 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
2 |
|
|
015 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
016a |
275-7958
|
Iron parking brake pedal (Tennant Industrial) |
1 |
(after SN 006998) |
|
016b |
275-7958
|
Iron parking brake pedal (Tennant Industrial) |
1 |
(after SN 006999) |
|
017 |
175-0632
|
Sleeve bushing |
1 |
|
|
018 |
175-0633
|
Spring |
1 |
|
|
019 |
175-0634
|
Bolt M8-1 1/4 x 35mm hex head |
1 |
|
|
020 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
021 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
