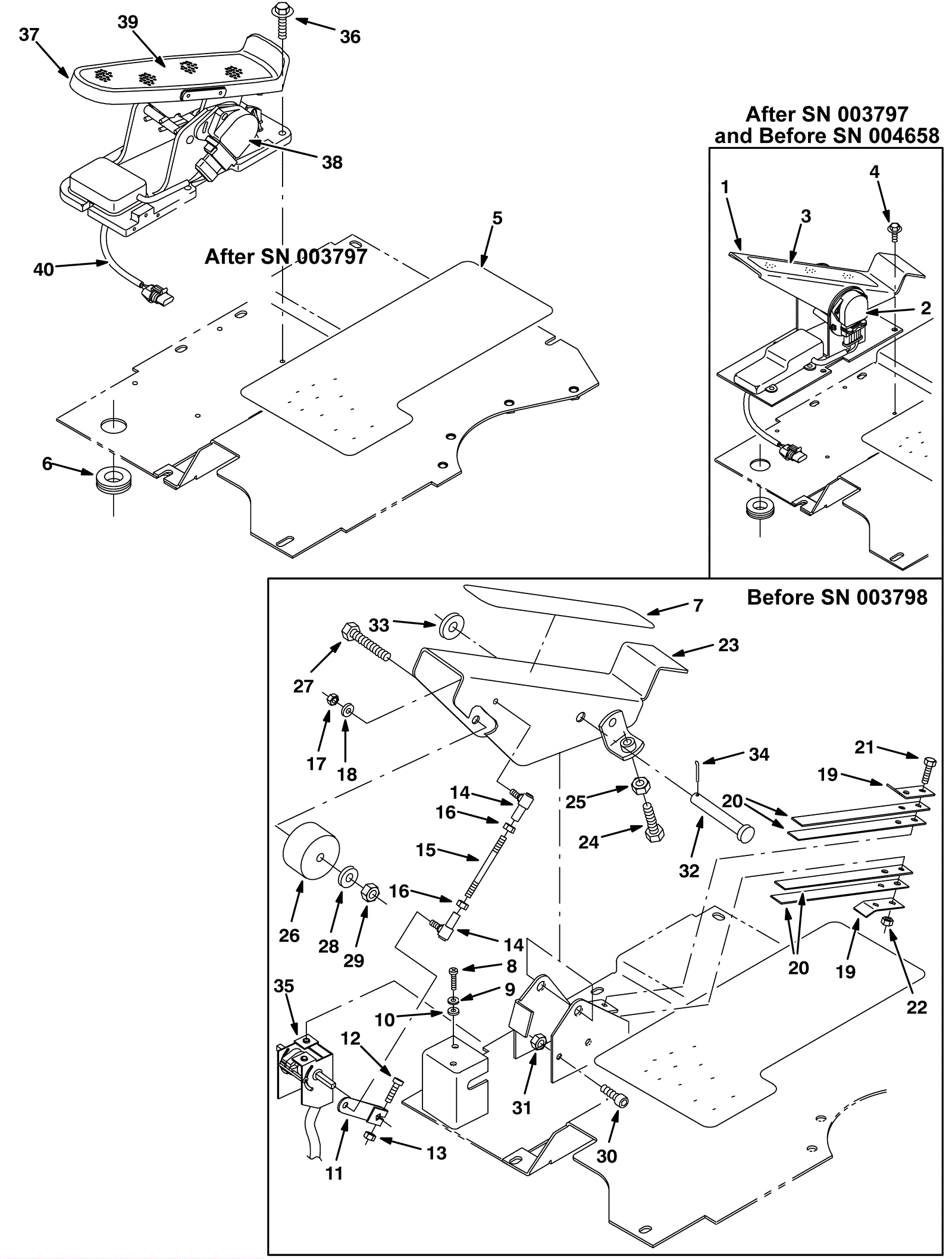

8300 Directional Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-9282 PEDAL ASSY, PROPEL, 36VDC (Tennant Industrial) $972.61 1 (after SN 003797 and before SN 004658) (includes 2 and 3) usually ships 6-16 days
2 175-9511 VR, SENSOR, POSITION, PEDAL (Tennant Industrial) $345.02 1 (after SN 003797 and before SN 004658) usually ships 6-16 days
3 175-3307 Non-skid tread $5.30 1 (after SN 003797 and before SN 004658) usually ships 6-16 days
4 175-3298 Bolt M6-1 x 12mm hex head $4.06 4 (after SN 003797 and before SN 004658) ships same day
5 275-8320 TREAD, NON-SKID, 06.0W 15.5L (Tennant Industrial) $37.74 1 (after SN 003797) usually ships 1-5 days
6 175-3311 Rubber grommet $4.50 1 (after SN 003797) usually ships 1-5 days
7 175-3307 Non-skid tread $5.30 1 (before SN 003798) usually ships 6-16 days
8 175-0598 Screw 5mm-.8 x 6 pan head $2.80 2 (before SN 003798) usually ships 1-5 days
9 999-0998 Washer #10 flat stainless steel $0.99 2 (before SN 003798) ships same day
10 999-0089 Washer #10 internal star lock zinc plated $0.99 2 (before SN 003798) ships same day
11 175-0599 Electronic control throttle arm $25.90 1 (before SN 003798) usually ships 1-5 days
12 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated $0.90 1 (before SN 003798) ships same day
13 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 (before SN 003798) ships same day
14 175-3302 Balljoint 1/4-28 $8.30 2 (before SN 003798) usually ships 6-16 days
15 175-0600 2 end thread rod $24.90 1 (before SN 003798) usually ships 1-5 days
16 999-0651 Nut 1/4-28 hex stainless steel $0.90 2 (before SN 003798) ships same day
17 999-1201 Nut 1/4-28 nylon insert lock hex stainless steel $0.90 2 (before SN 003798) ships same day
18 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 (before SN 003798) ships same day
19 175-3299 Spring retainer $15.30 2 (before SN 003798) usually ships 1-5 days
20 175-3300 Strip stainless $15.30 4 (before SN 003798) usually ships 1-5 days
21 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.90 2 (before SN 003798) ships same day
22 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 (before SN 003798) ships same day
23 175-3301 Accelerator pedal weldment $66.50 1 (before SN 003798) usually ships 1-5 days
24 175-3258 Bolt M10-1.5 x 35mm hex head $3.60 1 (before SN 003798) usually ships 1-5 days
25 999-0767 Nut M10-1.5 hex coarse thread $0.99 1 (before SN 003798) ships same day
26 175-3303 Spacer $6.60 1 (before SN 003798) usually ships 1-5 days
27 999-9081 Screw M10-1.5 x 65mm hex head stainless steel $2.72 1 (before SN 003798) ships same day
28 999-0120 Washer 3/8 SAE flat $0.99 1 (before SN 003798) ships same day
29 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 1 (before SN 003798) usually ships 1-5 days
30 175-0602 Screw M8-1.25 x 25mm socket $3.00 1 (before SN 003798) usually ships 6-16 days
31 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 (before SN 003798) ships same day
32 175-3280 Clevis pin $5.30 1 (before SN 003798) usually ships 6-16 days
33 999-0114 Washer 1/2 SAE flat $0.99 1 (before SN 003798) ships same day
34 175-3281 Cotter pin $2.42 1 (before SN 003798) usually ships 6-16 days
35 175-0597 Speed controller $1,028.50 1 (before SN 003798) usually ships 6-16 days
36 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 4 (after SN 004657) ships same day
37 275-9282 PEDAL ASSY, PROPEL, 36VDC (Tennant Industrial) $972.61 1 (after SN 004657) (includes 38-40) usually ships 6-16 days
38 175-9511 VR, SENSOR, POSITION, PEDAL (Tennant Industrial) $345.02 1 (after SN 004657) usually ships 6-16 days
39 275-9283 Non-skid tread $10.10 1 (after SN 004657) usually ships 1-5 days
40 275-9284 Pedal Circuitboard $394.50 1 (after SN 004657) usually ships 6-16 days
