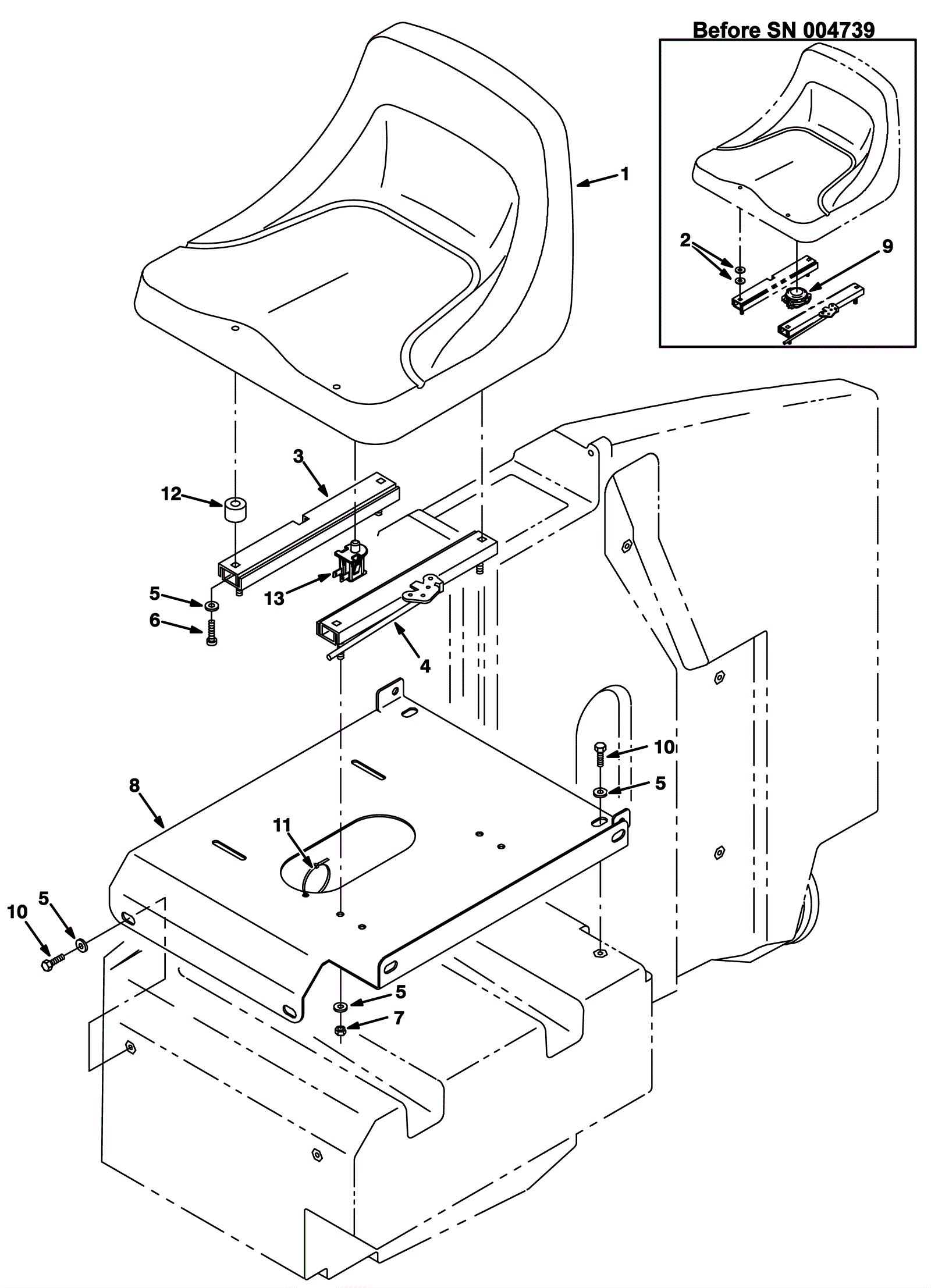

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
275-9328
|
Seat kit (includes screw and spacer) |
1 |
(before SN 004739) |
|
1b |
N/A
|
Not available |
1 |
(basic seat kit replacement) (after SN 004738 and before SN 007374) |
|
1c |
275-6563
|
Seat kit |
1 |
(after SN 007373) |
|
2 |
175-2367
|
Steel plated washer |
8 |
|
|
3 |
175-3174
|
12 1/2 inch adjustable seat slide track |
1 |
|
|
4 |
275-2671
|
11 1/2 inch seat adjuster rail (Tennant Industrial) |
1 |
|
|
5 |
999-9097
|
Washer M8 flat stainless steel |
14 |
|
|
6a |
999-0399
|
Screw 5/16-18 x 3/4 pan head phillips zinc plated |
4 |
(before SN 004739) |
|
6b |
275-9278
|
SCREW, PAN, PHL, .31-18 X 1.00, G2 (Tennant Industrial) |
4 |
(after SN 004738 and before SN 007374) |
|
6c |
999-0814
|
Screw 5/16-18 x 1 1/2 pan head phillips zinc plated |
4 |
(after SN 007373) |
|
7 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
|
8 |
275-7956
|
Iron seat plate (Tennant Industrial) |
1 |
|
|
9 |
175-0596
|
Seat switch |
1 |
(before SN 004739) |
|
10 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
6 |
|
|
11 |
175-2162
|
Nylon wire tie |
1 |
|
|
12 |
275-9333
|
Spacer |
4 |
(after SN 004738) |
|
13 |
275-9280
|
Seat switch |
1 |
(after SN 004738) |
|
