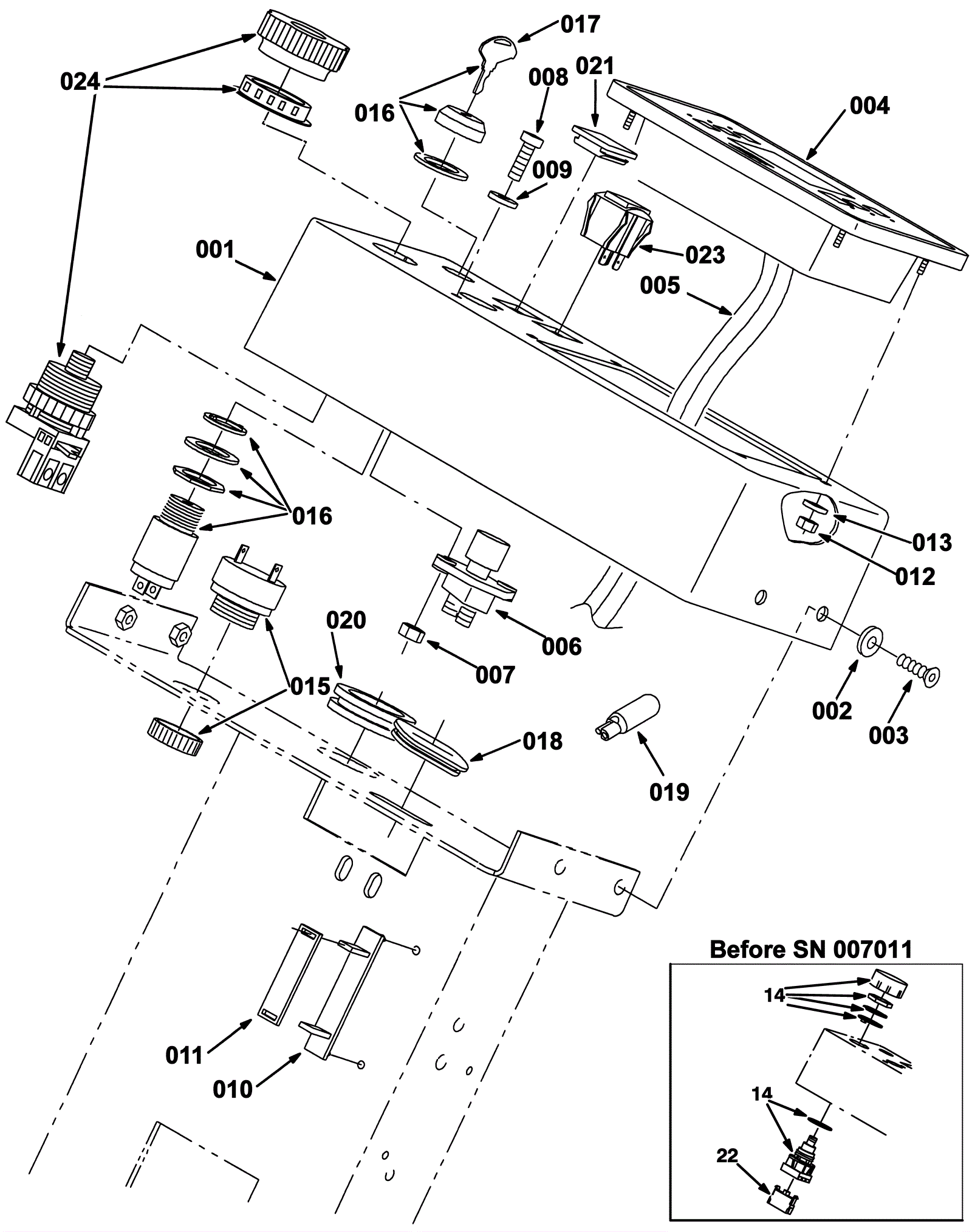

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-0560
|
PANEL, INSTMT (Tennant Industrial) |
1 |
|
|
002 |
999-1261
|
Washer M6 flat stainless steel |
4 |
|
|
003 |
175-0562
|
SCREW, FLT, SOC, M6 X 1.00 X 20, 10.9 (Tennant Industrial) |
4 |
|
|
004a |
275-2446
|
Panel assembly (Tennant Industrial) |
1 |
(before SN 007094) |
|
004b |
275-2447
|
Panel assembly (Tennant Industrial) |
1 |
(after SN 007093) |
|
005 |
175-0564
|
CABLE, RIBBON, 36.0L [34 COND, SHIELDED] (Tennant Industria |
1 |
|
|
006 |
175-3218
|
Push switch SPST |
1 |
|
|
007 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
2 |
|
|
008 |
999-1087
|
Bolt M6-1 x 25mm hex head stainless steel |
2 |
|
|
009 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
010 |
175-0565
|
CLAMP, CABLE, RIBBON, BASE, .6W 2.7L (Tennant Industrial) |
1 |
|
|
011 |
175-0566
|
CLAMP, CABLE, RIBBON, HOLD-DOWN .6W 2.9L (Tennant Industria |
1 |
|
|
012 |
175-2894
|
Nut M5-.8 hex nylon locking |
4 |
|
|
013 |
999-0006
|
Washer 3/16 flat zinc plated |
4 |
|
|
014 |
175-3220
|
Push switch |
1 |
(before SN 007009) |
|
015 |
175-0567
|
ALARM, AUDIO, 10-48VDC [MALLORY] (Tennant Industrial) |
1 |
|
|
016 |
175-3214
|
Key switch |
1 |
(includes 17) |
|
017 |
175-3215
|
Key (sold individually) |
1 |
|
|
018 |
175-0568
|
GROMMET, RIBBON CABLE, .63 X 1.81 (Tennant Industrial) |
1 |
|
|
019 |
175-2216
|
Diode plug |
7 |
|
|
020 |
175-2366
|
Rubber grommet |
1 |
|
|
021 |
175-2537
|
Switch plug |
2 |
|
|
022 |
175-3221
|
Switch contact |
1 |
(before SN 007009) |
|
023 |
175-0569
|
Rocker switch |
1 |
|
|
024 |
175-3220
|
Push switch |
1 |
(after SN 1053841) |
|
026 |
175-9375
|
Hole plug |
2 |
(after SN 007285) |
|
