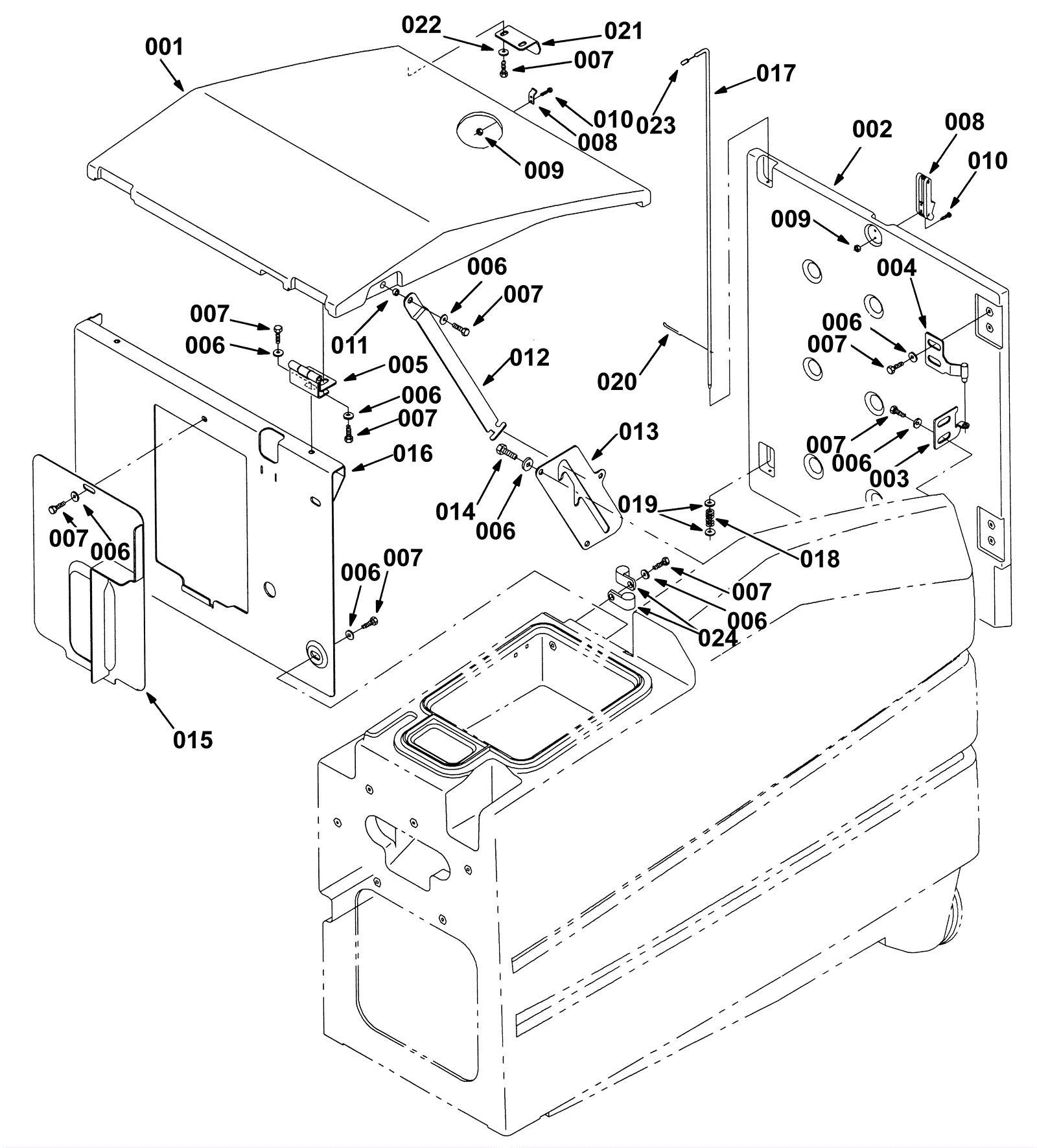

Cover Assembly - Rear

#PartDescription ReqNotesAvailability
001a 175-0545 COVER, TANK, TOP (Tennant Industrial) 1 (before SN 007000)
001b 275-9269 Top tank cover (teal) (Tennant Industrial) 1 (after SN 006999)
002a 175-0546 COVER, REAR (Tennant Industrial) 1 (before SN 007000)
002b 275-9270 Rear cover (teal) (Tennant Industrial) 1 (after SN 006999)
003a 175-0547 PLATE, HINGE (Tennant Industrial) 2 (before SN 007000)
003b 275-9271 Hinge plate (iron gray) (Tennant Industrial) 1 (after SN 006999)
004a 175-0548 HINGE WLDT, W/ PIN (Tennant Industrial) 2 (before SN 007000)
004b 275-9272 Hinge weldment with pin (iron gray) (Tennant Industrial) 1 (after SN 006999)
005a 175-0549 HINGE ASSY (Tennant Industrial) 2 (before SN 007000)
005b 275-9273 Hinge assembly (iron gray) (Tennant Industrial) 1 (after SN 006999)
006 999-9097 Washer M8 flat stainless steel 24
007 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 23
008a 175-3369 Hood latch 1
008b 991-8561 Rubber draw latch with keeper 1
009 999-0954 Nut M4-.7 nylon insert lock stainless steel 4
10 999-0534 Screw M4-.7 x 10mm pan head slotted zinc 4
11 175-0550 Sleeve 1
12 175-0551 ROD (Tennant Industrial) 1
13a 175-0552 PLATE (Tennant Industrial) 1 (before SN 007000)
13b 275-9274 Plate (iron gray) (Tennant Industrial) 1 (after SN 006999)
14 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 3
15a 175-0553 COVER WLDT (Tennant Industrial) 1 (before SN 007000)
15b 275-9275 Cover weldment (iron gray) (Tennant Industrial) 1 (after SN 006999)
16 175-0554 PANEL, FRONT, W/ LABEL (Tennant Industrial) 1
17 175-0555 ROD, DOOR, REAR (Tennant Industrial) 1
18 175-0556 SPRING, CMPR, 0.36OD .04WIR 02.5L (Tennant Industrial) 1
19 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
20 175-2361 Cotter pin 1
22 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
23 175-0558 CAP, VYL, .23ID .750L, BLK (Tennant Industrial) 1
24 175-0559 P clamp 2
