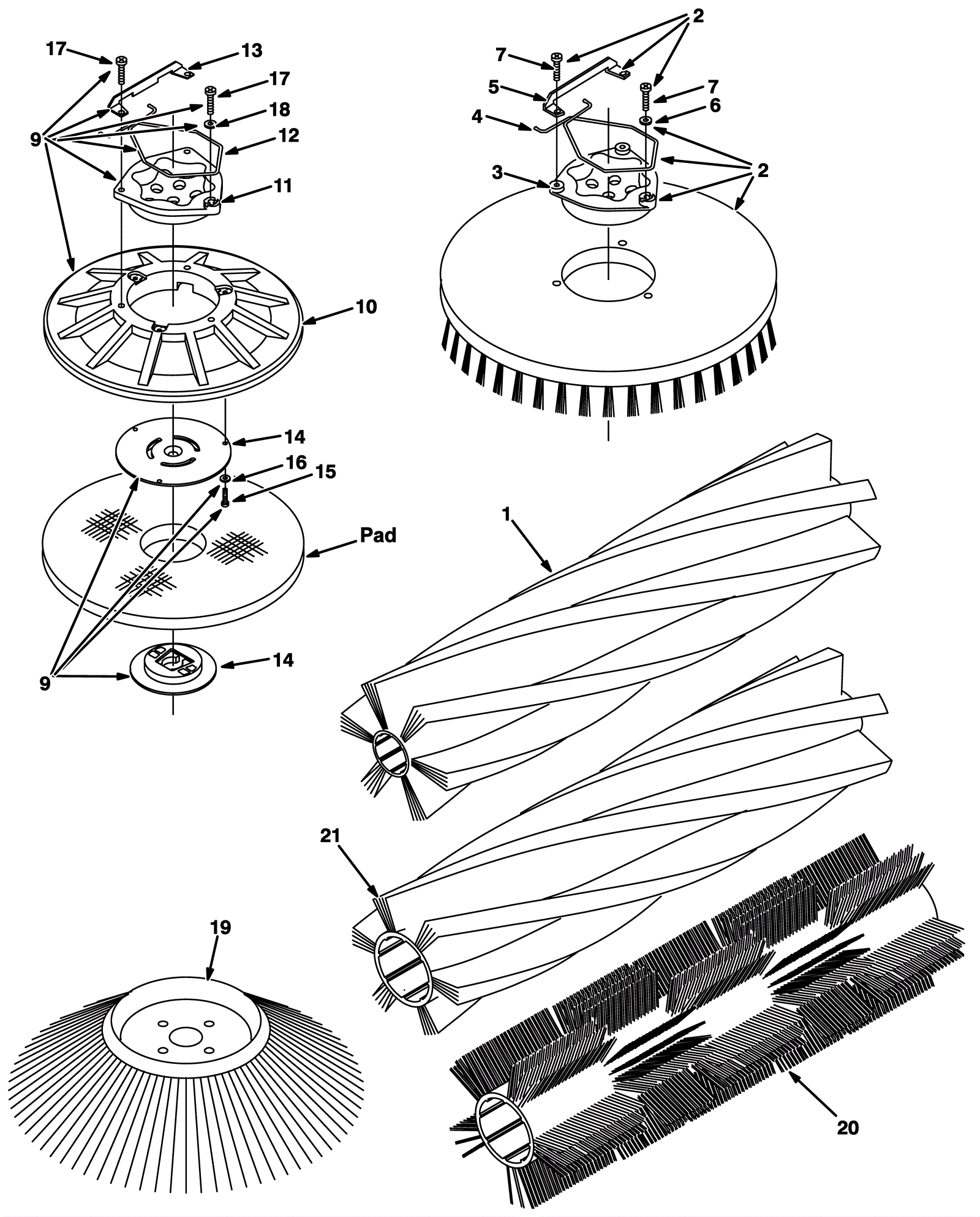

Replacement Brushes

#PartDescription ReqNotesAvailability
1 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 2
2a 175-0504 Scrub brush disk assembly 20 D Nylon (Tennant Industrial) 2 (includes 3a, 4, 5, 6, and 7) (MaxPro 1000)
2b 996-1019 Polypropelene scrubbing brush ( Tennant Industrial) 2 (includes 3a, 4, 5, 6, and 7) (MaxPro 1000)
2c 996-1624 19 inch heavy grit stripping brush - 80 grit 2 (includes 3a, 4, 5, 6, and 7) (MaxPro 1000)
2d 275-6002 16 inch super abrasive scrubbing brush 3 (includes 3b, 4, 5, 6, and 7) (MaxPro 1200)
2e 996-1034 16 inch nylon scrubbing brush 3 (includes 3b, 4, 5, 6, and 7) (MaxPro 1200)
2f 996-1037 16 inch polypropelene scrubbing brush 3 (includes 3b, 4, 5, 6, and 7) (MaxPro 1200)
3a 175-2335 Brush adaptor 1 (MaxPro 1000)
3b 275-4936 Brush hub 3 hole 1 (MaxPro 1200)
4 175-2071 Brush retaining spring 1
5a 175-2072 Spring retainer bracket 1
5b 991-3047 Spring retainer bracket 1 (NON-OEM)
6 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
7 175-0505 Screw M6-1 x 35mm pan head stainless steel 3
9a 175-0513 DRIVER ASSY, PAD, 20.0D (Tennant Industrial) 2 (includes 10-18) (MaxPro 1000)
9b 175-2405 Pad driver assembly 2 (includes 10-18) (MaxPro 1200)
9c 991-3046 Pad driver assembly 2 (includes 10-18) (MaxPro 1200)
10 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 1
11 175-2335 Brush adaptor 1
12 175-2071 Brush retaining spring 1
13a 175-2072 Spring retainer bracket 1
13b 991-3047 Spring retainer bracket 1 (NON-OEM)
14 175-0515 Centering device (OBSOLETE) 1
15 175-2079 Screw M4-.07 x 35mm pan head stainless steel 3
16 999-0266 Washer #8 SAE flat stainless steel 3
17 175-0505 Screw M6-1 x 35mm pan head stainless steel 3
18 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
20 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 1
