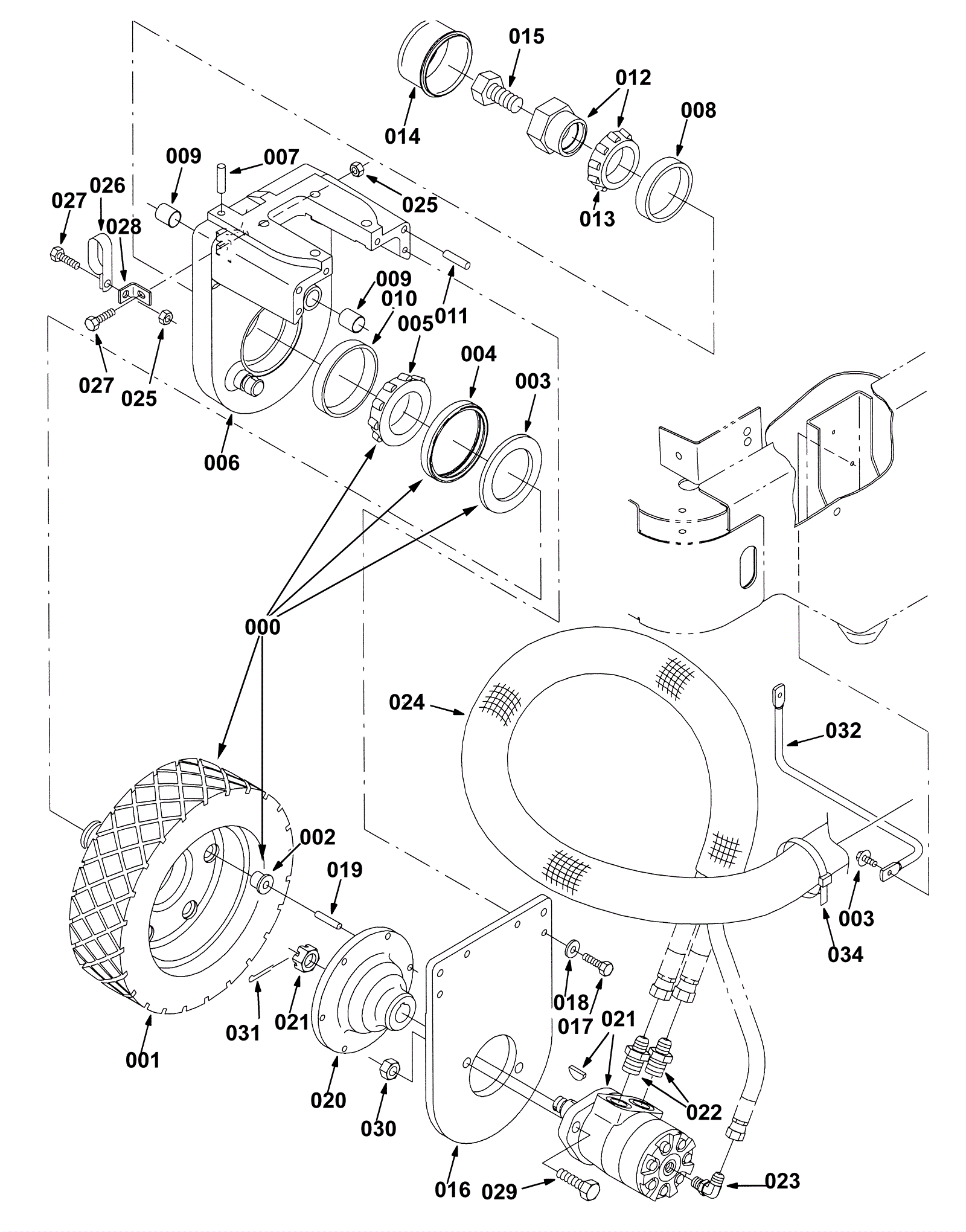

6200 Front Drive Wheel Group

#PartDescriptionPriceReqNotesAvailability
000 275-0419 TIRE ASSY, SOLID, 12.0 X 4.0, W/ BRG (Tennant Industrial) $1,197.57 1 includes 001-005 usually ships 1-5 days
001 275-0420 Solid tire (Tennant Industrial) (OBSOLETE) $480.27 1 usually ships 1-5 days
002 175-9953 Urethane isolator bushing $7.92 6 usually ships 5-16 days
003 175-9954 Washer 2.80 x 4.06 x .25 $14.85 1 usually ships 5-16 days
004 175-9955 Seal $23.87 1 usually ships 5-16 days
005 175-9956 Cone bearing 2.25 bore .86 width $46.97 1 usually ships 5-16 days
006 175-9957 Drive wheel housing $1,303.17 1 includes 007-011 usually ships 1-5 days
007 175-9958 Dowel pin 1/2 x 1 1/2 $4.88 1 usually ships 5-16 days
008 175-9959 Cup bearing 82 $18.26 1 usually ships 5-16 days
009 175-9960 Bushing $20.90 2 usually ships 1-5 days
010 175-9961 Cup bearing 3 13/16 $25.85 1 usually ships 5-16 days
011 175-9962 Dowel pin 3/8 x 2 $7.15 2 usually ships 1-5 days
012 175-9963 Bearing sleeve assembly $105.27 1 includes 013 usually ships 5-16 days
013 175-9964 Cone bearing 50 bore $40.37 1 usually ships 5-16 days
014 175-9976 Front wheel cap $25.85 1 usually ships 5-16 days
015 175-9966 Screw M20-2.5 x 35 hex head nylon lock $10.67 1 usually ships 5-16 days
016 275-0421 PLATE, MTG, MOTOR (Tennant Industrial) $236.88 1 usually ships 1-5 days
017 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 4 ships same day
018 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
019 275-0422 PIN, DOWEL, 0.3127D X 1.50L (Tennant Industrial) $5.67 6 usually ships 1-5 days
020 275-0423 ADAPTER, MOTOR (Tennant Industrial) $375.08 1 usually ships 1-5 days
021 275-0424 MOTOR, HYD, GEAR, INT 06.2 BI-DIR 2500 (Tennant Industrial) $1,115.06 1 usually ships 1-5 days
022 275-0425 Straight hydraulic fitting $14.30 2 usually ships 1-5 days
023 175-6919 Elbow fitting $14.30 1 usually ships 5-16 days
024 275-0426 Number 27 nylon sleeve 65l $42.57 1 usually ships 5-16 days
025 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
026 175-6894 CLAMP, CABLE, STL, 1.0X2.0X0.62W, 1HOLE (Tennant Industrial $8.84 1 usually ships 1-5 days
027 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 2 ships same day
028 275-0427 BRACKET, MTG, CLAMP (Tennant Industrial) $41.01 1 usually ships 1-5 days
029 175-0647 SCREW, HEX, M12 X 1.75 X 40, 8.8 (Tennant Industrial) $6.17 2 usually ships 1-5 days
030 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 2 ships same day
031 175-3281 Cotter pin $3.04 1 usually ships 5-16 days
032 275-0428 RETAINER, HOSE (Tennant Industrial) (OBSOLETE) $45.13 1 usually ships 1-5 days
033 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
034 275-0080 TIE, CABLE, NYL, 15.3L . W 4.5 MAX D (Tennant Industrial) $5.17 1 usually ships 1-5 days
