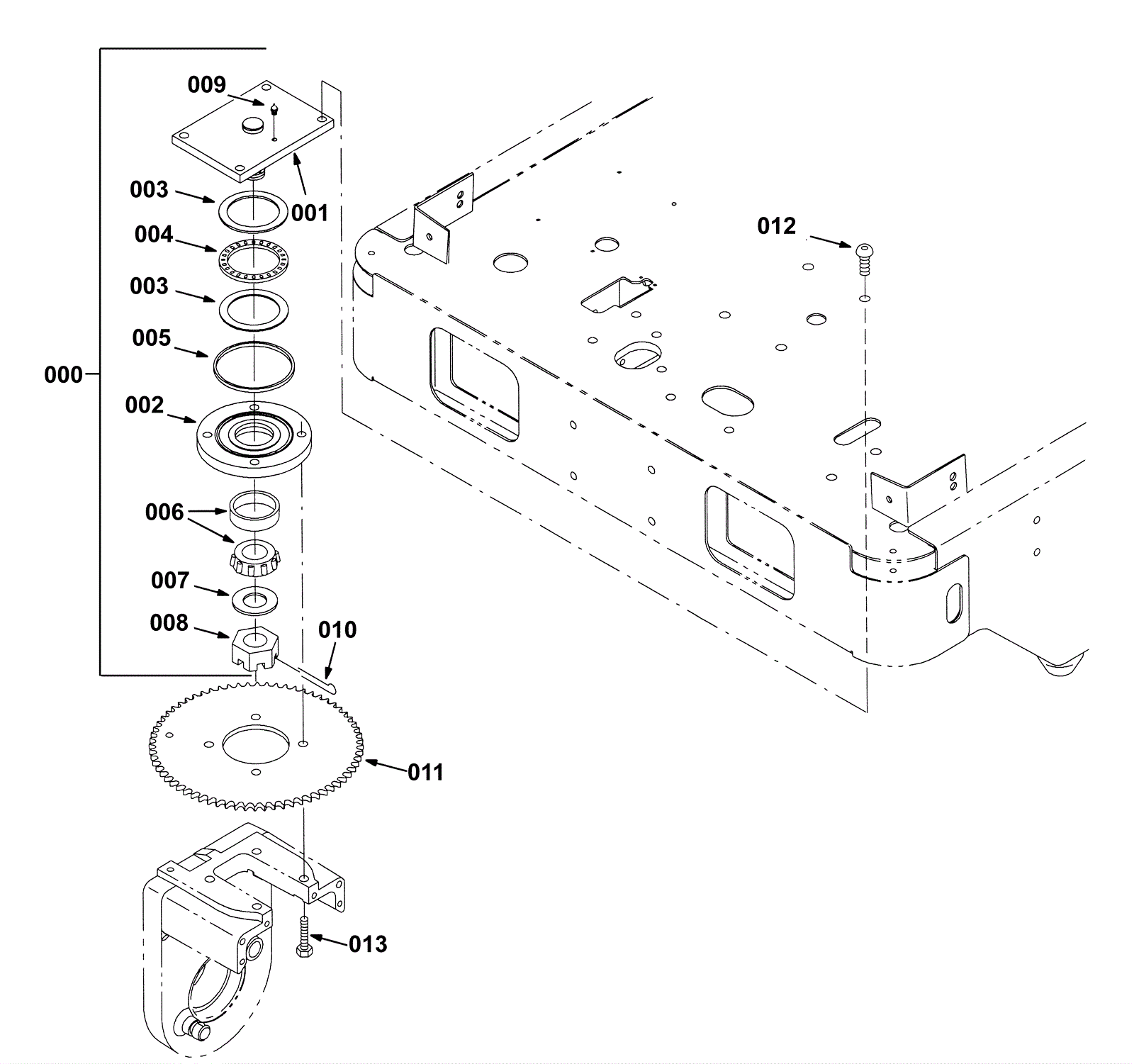

6200 Front Wheel Pivot Group

#PartDescriptionPriceReqNotesAvailability
000 175-9967 Caster assembly $547.47 1 includes 001-010 usually ships 5-16 days
001 175-9968 Swivel plate weldment $238.15 1 usually ships 5-16 days
002 175-3252 Bottom swivel plate $282.59 1 usually ships 5-16 days
003 175-3249 Washer thrust $6.82 2 usually ships 5-16 days
004 175-3250 Thrust bearing $21.89 1 usually ships 5-16 days
005 175-3251 Felt seal $8.14 1 usually ships 5-16 days
006 175-3253 Bearing assembly cup/cone $99.33 1 usually ships 5-16 days
007 175-3254 Washer $6.82 1 usually ships 5-16 days
008 175-3255 Nut hexslot 1 1/4 x 12 $9.57 1 usually ships 1-5 days
009 175-3248 Grease fitting $4.09 1 usually ships 5-16 days
010 275-0418 Cotter pin 5/32 x 2 $4.09 1 usually ships 1-5 days
011 175-9970 Drive steering sprocket $40.70 1 usually ships 1-5 days
012 175-9971 Screw M12-1.75 x 30 Button head nylon lock $6.05 4 usually ships 1-5 days
013 175-9972 Screw M12-1.75 x 45mm hex head nylon lock $4.09 4 usually ships 1-5 days
