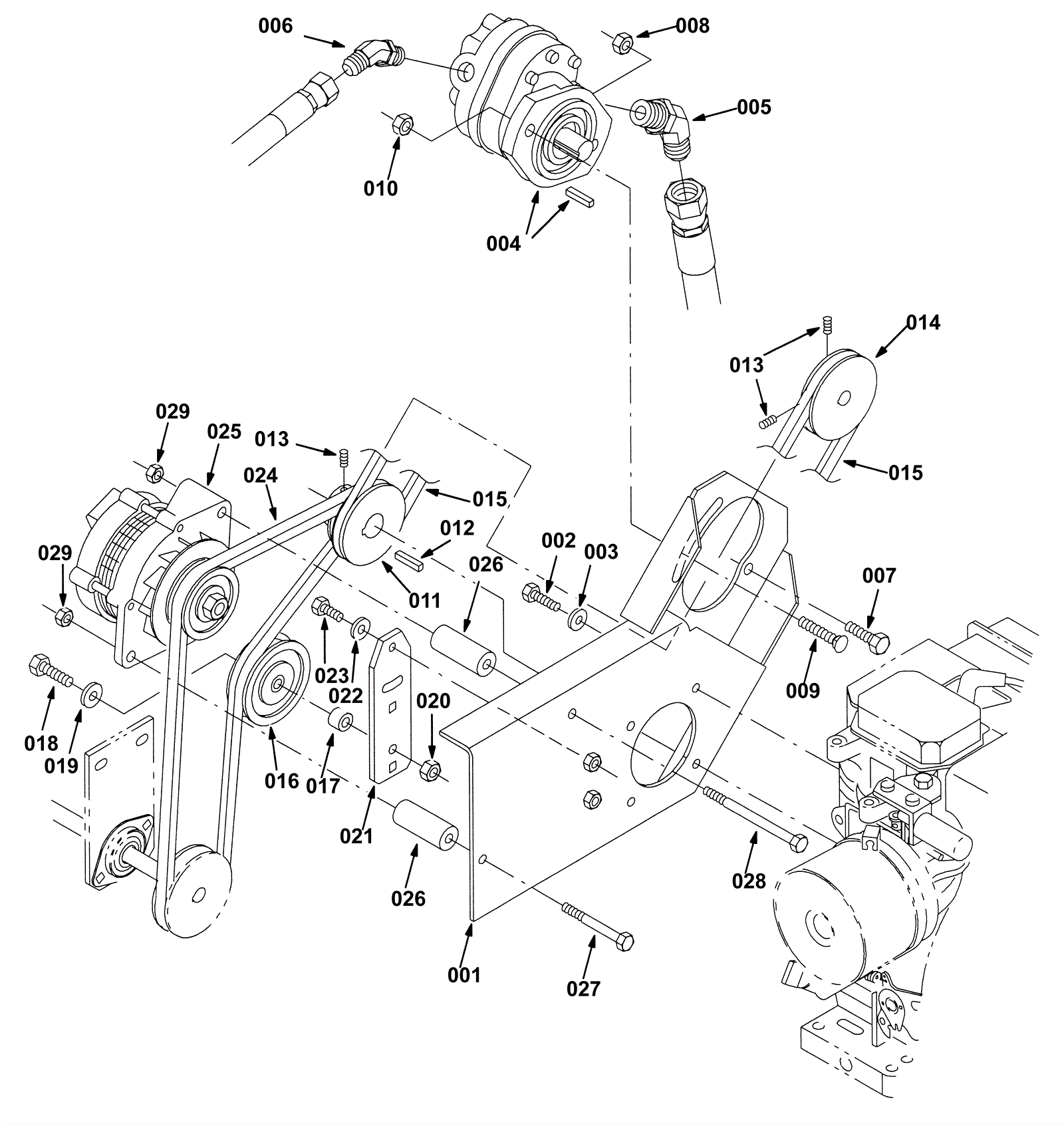

6200 Hydraulic Pump and Belts Group

#PartDescriptionPriceReqNotesAvailability
001 275-0392 BRACKET WLDT, MTG, PUMP/ALTERNATOR (Tennant Industrial) $123.91 1 usually ships 1-5 days
002 999-1143 Bolt 5/16-24 x 3/4 hex head stainless steel $1.01 4 ships same day
003 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
004 275-0393 PUMP, HYD, GEAR, EXT, 00.40 3000 (Tennant Industrial) $670.13 1 usually ships 1-5 days
005 275-0394 45 degree elbow hydraulic fitting $51.81 1 usually ships 1-5 days
006 275-0395 FITTING, HYD, E45, JM08/OM10 (Tennant Industrial) $50.68 1 usually ships 1-5 days
007 175-3258 Bolt M10-1.5 x 35mm hex head $4.88 1 usually ships 1-5 days
008 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 1 usually ships 1-5 days
009 999-0209 Screw 3/8-16 x 1 1/2 carriage head grade 5 zinc $1.23 1 ships same day
010 175-6922 Nut 3/8 - 16 hex lock $4.09 1 usually ships 1-5 days
011 275-0396 SHEAVE, 02GRV, 03.0PD 1.00B [3V] (Tennant Industrial) $226.88 1 usually ships 1-5 days
012 275-0397 Square keyway $4.09 1 usually ships 5-16 days
013 999-1413 Screw M6-1 x 8mm socket cup point set $0.99 4 ships same day
014 275-0398 SHEAVE, 01GRV, 03.8PD 0.63B [3V] (Tennant Industrial) $193.87 1 usually ships 1-5 days
015 275-0399 V-belt 25l $23.32 1 usually ships 5-16 days
016 275-0088 PULLEY, IDLER W/ BEARING, PLSTC (Tennant Industrial) $85.85 1 usually ships 5-16 days
017 275-0400 Steel plated round tube 3/4d .44b .7l $14.63 1 usually ships 1-5 days
018 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated $1.19 1 ships same day
019 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
020 175-6922 Nut 3/8 - 16 hex lock $4.09 1 usually ships 1-5 days
021 275-0401 ARM, IDLER (Tennant Industrial) (OBSOLETE) $30.17 1 usually ships 1-5 days
022 999-0105 Washer 5/16 external star lock zinc plated $0.99 2 ships same day
023 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
024 275-0402 BELT, V, 46.0L [3V, HY-T] (Tennant Industrial) $36.01 1 usually ships 5-16 days
025a 275-0403 Alternator (Tennant Industrial) $1,122.56 1 includes 025b-025f usually ships 1-5 days
025b 275-0404 VR, REGULATOR, ALTERNATOR, 12VDC (Tennant Industrial) $312.90 1 usually ships 1-5 days
025c 175-9071 Ball bearing 43/64 x 1-37/64 x 15/32 $18.37 1 usually ships 1-5 days
025d 275-0405 VR, KIT, BRUSH, ALTERNATOR (Tennant Industrial) $17.50 1 usually ships 1-5 days
025e 275-0406 VR, RECTIFIER, ALTERNATOR (Tennant Industrial) $96.69 1 usually ships 1-5 days
025f 275-0407 VR, PULLEY, ALTERNATOR (Tennant Industrial) $33.34 1 usually ships 1-5 days
026 275-0408 TUBE, 0.38ID 1.00OD 02.5L, STL, PL (Tennant Industrial) $39.75 2 usually ships 1-5 days
027 999-0923 Bolt 5/16-18 x 3 1/4 hex head grade 8 plain finish $0.99 1 usually ships 1-5 days
028 999-0007 Screw 5/16-18 x 5 hex head stainless steel $4.29 1 usually ships 11-24 days
029 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
