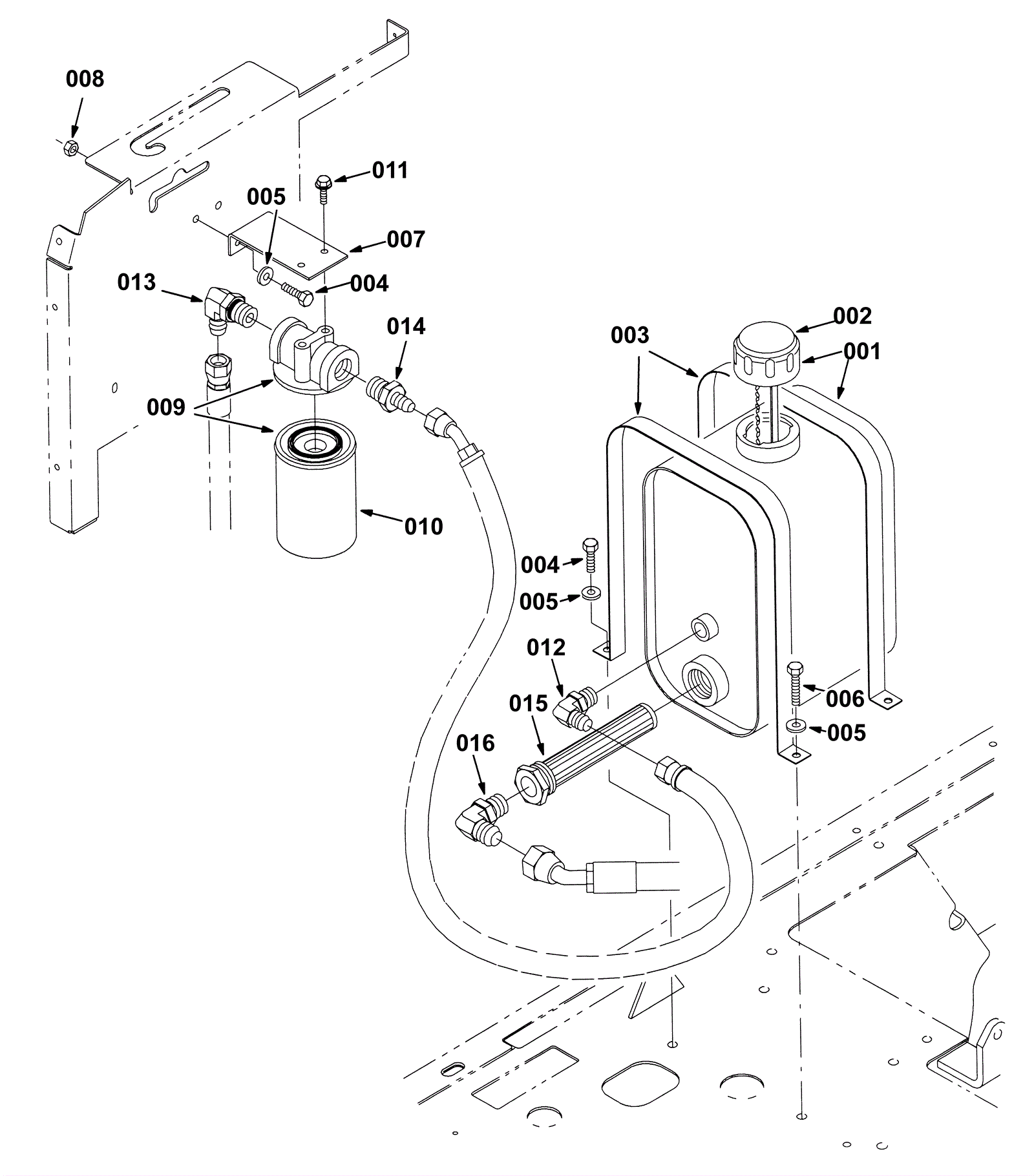

6200 Hydraulic Reservoir Group

#PartDescriptionPriceReqNotesAvailability
001 275-0385 RESERVOIR ASSY, 02.0 GAL (Tennant Industrial) $469.27 1 includes 002a-002b usually ships 5-16 days
002a 275-0386 Hydraulic breather cap $97.90 1 usually ships 1-5 days
002b 175-8101 Cap gasket $5.28 1 usually ships 1-5 days
003 275-0387 STRAP, MTG, TANK, .06 1.00W 31.7L (Tennant Industrial) $48.76 2 usually ships 1-5 days
004 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
005 999-0024 Washer 5/16 flat stainless steel $1.34 6 ships same day
006 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 2 ships same day
007 275-0388 Hydraulic filter bracket (OBSOLETE) $23.21 1 usually ships 1-5 days
008 999-0665 Nut M8-1.25 flange lock $0.99 2 ships same day
009 275-0389 Spin-on oil filter assembly $102.30 1 usually ships 5-16 days
010 275-0390 Hydraulic oil filter $20.90 1 usually ships 5-16 days
011 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 ships same day
012 175-6893 Elbow fitting $35.97 1 usually ships 1-5 days
013 175-6879 Elbow fitting $28.60 1 usually ships 1-5 days
014 175-6967 Strainer fitting $15.18 1 usually ships 1-5 days
015 175-8102 Strainer $132.55 1 usually ships 5-16 days
016 275-0391 90 degree elbow hydraulic fitting $18.15 1 usually ships 1-5 days
