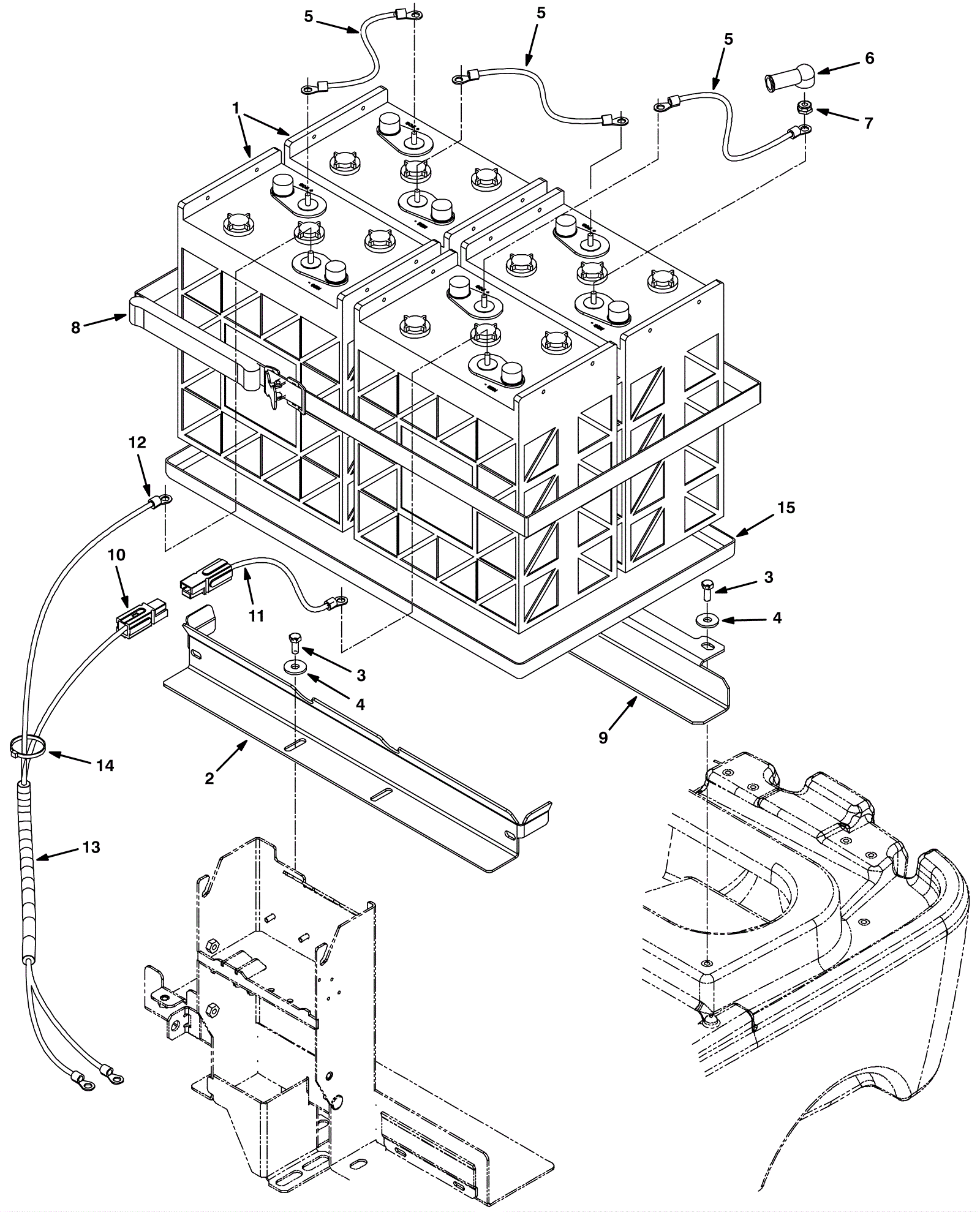

STRIVE RIDER Battery Assembly

#PartDescriptionPriceReqNotesAvailability
1a 162-0005 6V 305Ah wet battery (SNSR) $412.50 4 ships same day
1b 162-0003 6V 225Ah wet battery (SNSR) $269.50 4 ships same day
2 275-8190 Battery bracket $96.91 1 usually ships 1-5 days
3 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 ships same day
4 175-7920 Washer M8 flat stainless steel $3.30 4 ships same day
5a 998-0010 Battery jumper cable - ring type (red) $4.84 3 ships same day
5b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $14.54 3 (NON-OEM) usually ships 5-16 days
6 175-1103 Battery cable boot (black) $4.73 8 ships same day
7 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 8 ships same day
8 175-2130 Strap $33.33 1 ships same day
9 275-8192 Battery support angle $61.38 1 usually ships 5-16 days
10 275-0732 Wire assembly (red) $63.80 1 ships same day
11 275-0733 Wire assembly (red) $55.77 1 ships same day
12 175-9591 Wire (black) $35.53 1 usually ships 5-16 days
13 275-8193 1 foot nylon sleeve $26.29 1 usually ships 5-16 days
14 175-2202 Nylon wire tie $3.30 4 ships same day
15 275-9408 Battery tray $112.86 1 ships same day
