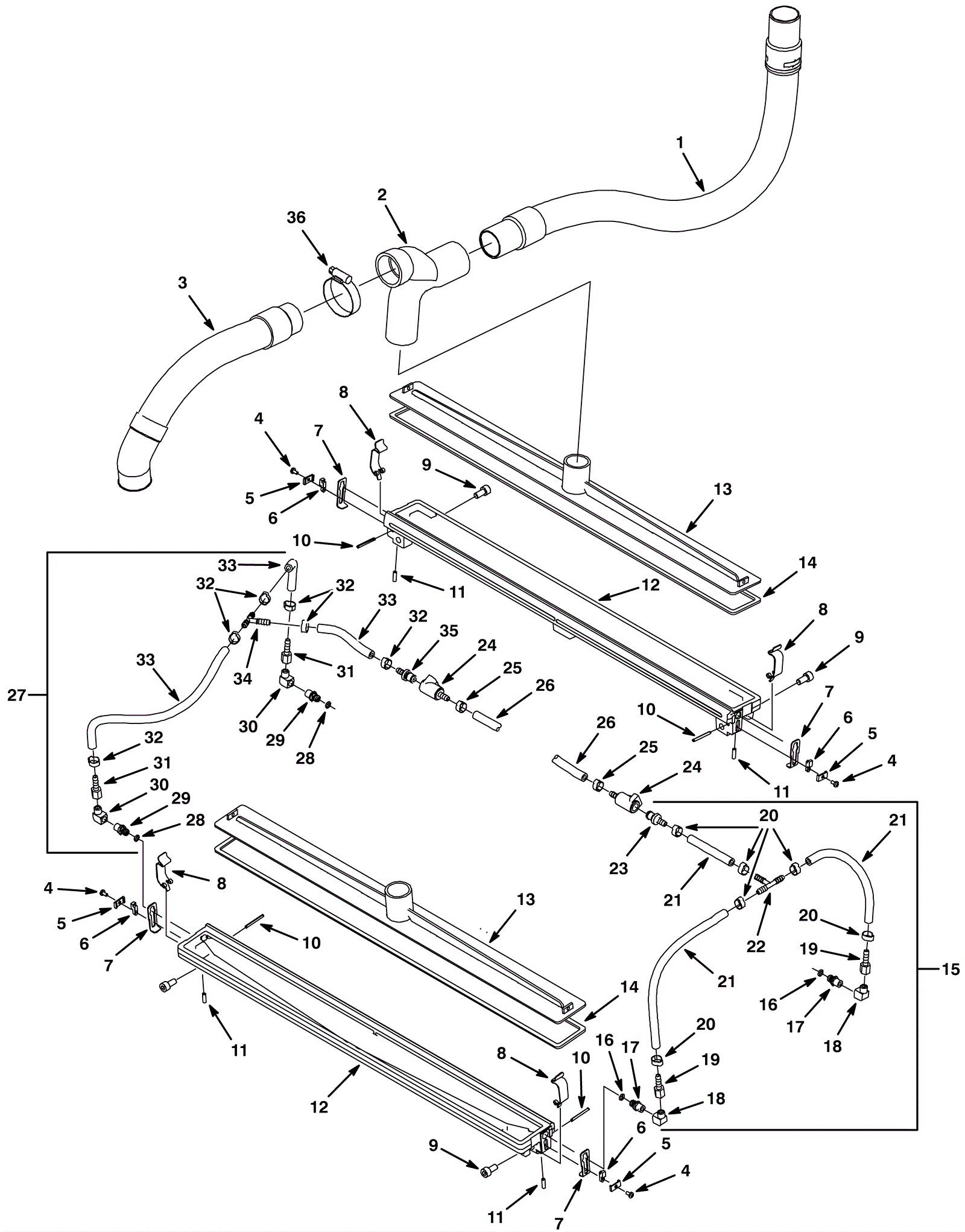

STRIVE RIDER Vacuum Shoe and Solution Flush Line Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-9698 Vacuum hose 1 1/2 x 29 inch $66.88 1 usually ships 5-16 days
2 275-9699 PVC fitting $67.21 1 usually ships 1-5 days
3 275-9700 Vacuum hose 1 1/2 x 17 inch $56.87 1 usually ships 5-16 days
4 999-0534 Screw M4-.7 x 10mm pan head slotted zinc $0.99 4 ships same day
5 175-8847 Latch retainer $18.59 4 usually ships 5-16 days
6 175-8846 Timing key $26.84 4 usually ships 5-16 days
7 175-8845 Nozzle retaining latch $10.67 4 usually ships 5-16 days
8 175-8843 Vacuum tool cover mounting clip $4.95 4 usually ships 5-16 days
9 999-0802 Screw M8-1.25 x 16mm socket head $0.99 4 ships same day
10 175-8844 Roll pin 1/8 x 1 1/4 inch $2.42 4 ships same day
11 175-8842 Compression spring $5.61 4 ships same day
12 275-9701 Roller vacuum tool $556.14 2 ships same day
13 275-9702 Roller vacuum tool cover $233.42 2 usually ships 5-16 days
14 275-9703 Roller vacuum tool cover gasket $14.85 2 ships same day
15 275-9704 Left hand hose assembly $314.93 1 (includes 16-23) usually ships 1-5 days
16 175-8835 O-ring seal $5.28 2 usually ships 5-16 days
17 175-8836 Brass tip fitting $36.85 2 usually ships 5-16 days
18 175-1661 90 degree elbow fitting $4.95 2 usually ships 5-16 days
19 175-3529 Brass fitting $4.95 2 ships same day
20 175-6170 Hose clamp $3.96 6 ships same day
21 275-9705 PVC hose 1/4 x 3 feet (gray) $39.82 1 usually ships 5-16 days
22 175-7303 1/4 inch union tee $10.12 1 usually ships 5-16 days
23 175-8839 Strainer fitting $10.89 1 usually ships 5-16 days
24 175-5311 Female fitting with valve $55.44 2 usually ships 5-16 days
25 175-6170 Hose clamp $3.96 2 ships same day
26 275-9705 PVC hose 1/4 x 3 feet (gray) $39.82 1 usually ships 5-16 days
27 275-9706 Right hand hose assembly $316.47 1 (includes 28-35) usually ships 1-5 days
28 175-8835 O-ring seal $5.28 2 usually ships 5-16 days
29 175-8836 Brass tip fitting $36.85 2 usually ships 5-16 days
30 175-1661 90 degree elbow fitting $4.95 2 usually ships 5-16 days
31 175-3529 Brass fitting $4.95 2 ships same day
32 175-6170 Hose clamp $3.96 6 ships same day
33 275-9705 PVC hose 1/4 x 3 feet (gray) $39.82 1 usually ships 5-16 days
34 175-7303 1/4 inch union tee $10.12 1 usually ships 5-16 days
35 175-8839 Strainer fitting $10.89 1 usually ships 5-16 days
36 997-2000 Hose clamp $2.37 1 ships same day
