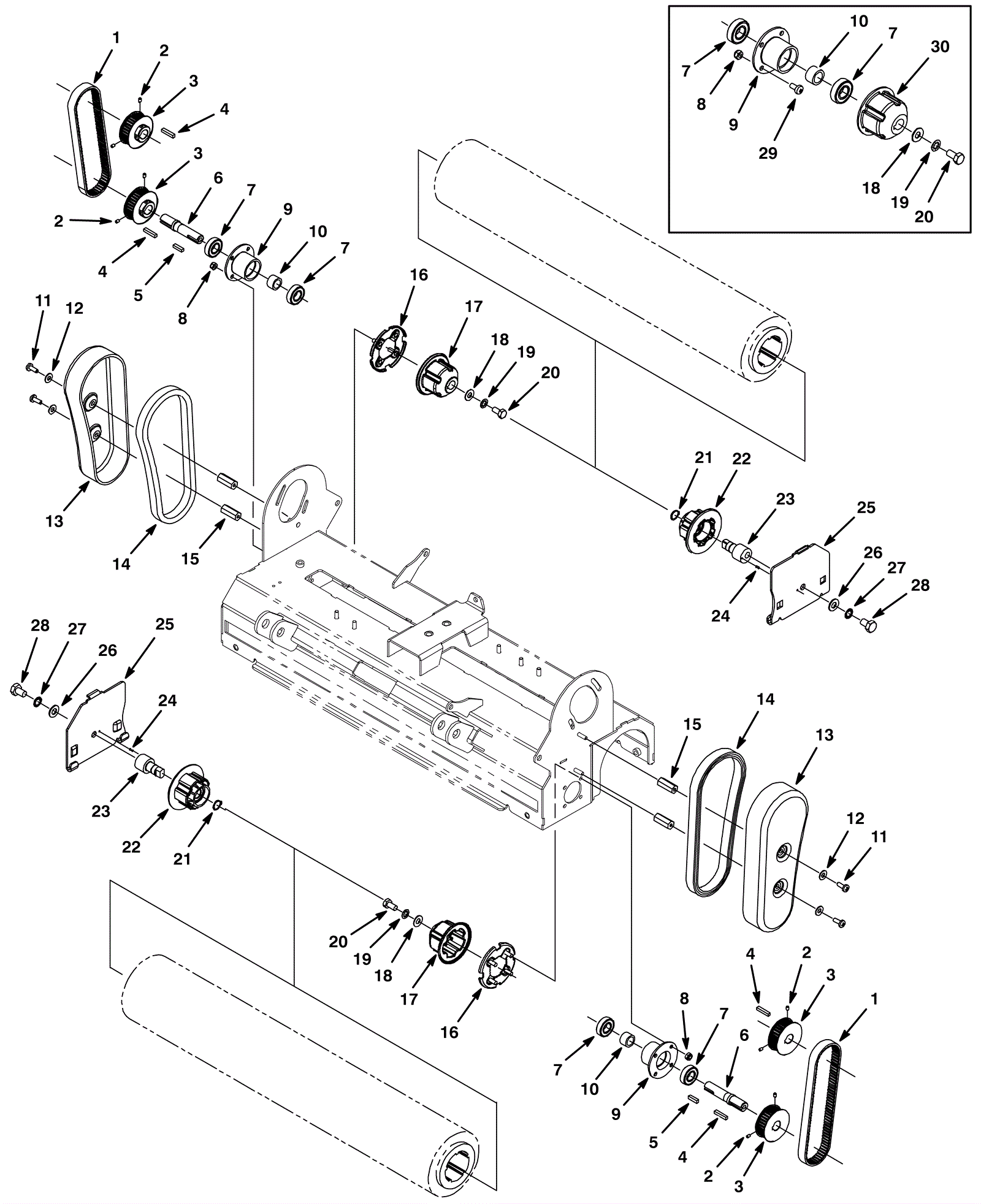

STRIVE RIDER Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-8816 Belt $88.55 2 usually ships 5-16 days
2 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish $0.99 8 ships same day
3 275-9690 34tooth timing sprocket $108.46 4 ships same day
4 175-3200 Square keyway $3.30 4 ships same day
5 175-8818 Square keyway $3.30 2 usually ships 5-16 days
6 275-9691 Drive shaft $145.09 2 usually ships 5-16 days
7 175-2471 Ball bearing $18.81 4 ships same day
8 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 8 ships same day
9 175-8821 Bearing housing $120.56 2 usually ships 5-16 days
10 175-8820 Spacer $15.62 2 ships same day
11 999-1257 Screw M6-1 x 16mm pan head Phillips $1.47 4 ships same day
12 999-0016 Washer 1/4 flat plain finish $0.99 8 ships same day
13 275-9692 Belt cover $110.11 2 usually ships 5-16 days
14 175-8827 Foam gasket $24.64 2 ships same day
15 175-8826 Spacer $17.71 4 usually ships 5-16 days
16 275-9693 Thread guard $28.93 2 usually ships 5-16 days
17 275-9694 Casting brush drive plug $82.28 2 usually ships 5-16 days
18 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
19 999-1053 Washer 5/16 internal star lock stainless steel $0.99 2 ships same day
20 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 ships same day
21 175-2472 Retaining ring $2.42 2 usually ships 5-16 days
22 175-2478 Brush idler plug $28.27 2 ships same day
23 175-2476 Idler plug shaft $73.15 2 usually ships 5-16 days
24 175-2477 Roll pin $2.42 2 usually ships 5-16 days
25 275-9695 Roller door $83.49 2 usually ships 5-16 days
26 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
27 175-4494 Washer M10 $3.30 2 ships same day
28 175-2947 Bolt M10 x 1-1/2 x 16 hex head stainless steel $3.96 2 ships same day
29 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel $0.99 8 ships same day
30 275-9696 Drive plug and thread guard $169.18 2 usually ships 1-5 days
