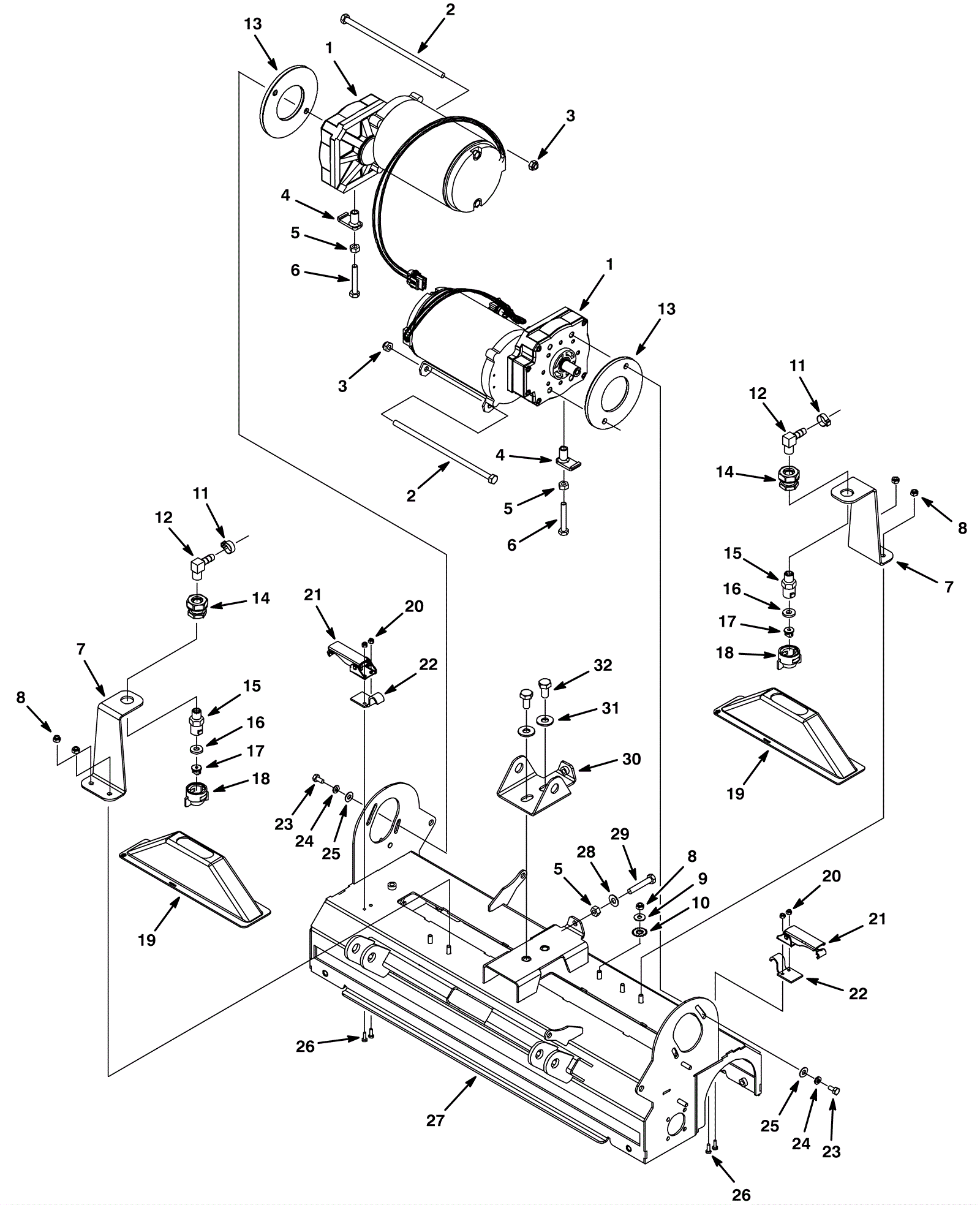

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
275-9681
|
Motor |
2 |
(includes 1b) |
|
1b |
275-9682
|
Motor carbon brush |
2 |
|
|
2 |
275-9683
|
Screw M8-1.25 x 210mm hex head |
2 |
|
|
3 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
4 |
275-9684
|
Motor mount lift bracket |
2 |
|
|
5 |
999-1424
|
Nut M8-1.25 hex stainless steel |
3 |
|
|
6 |
999-1692
|
Screw M8-1.25 x 50mm hex stainless steel |
2 |
|
|
7 |
275-9685
|
Spray nozzle mounting bracket |
2 |
|
|
8 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
5 |
|
|
9 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
10 |
175-2893
|
Washer 5/16 internal/external locking |
1 |
|
|
11 |
175-6032
|
Hose clamp |
2 |
|
|
12 |
175-2997
|
Elbow |
2 |
|
|
13 |
275-9686
|
Motor brush gasket |
2 |
|
|
14 |
175-4814
|
Brass strainer fitting |
2 |
|
|
15 |
175-4192
|
Quick jet body |
2 |
|
|
16 |
175-4193
|
Quick jet gasket |
2 |
|
|
17 |
175-6330
|
Spray nozzle |
2 |
|
|
18 |
175-4194
|
Quick jet cap (green) |
2 |
|
|
19 |
275-9687
|
Splash shroud |
2 |
|
|
20 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
4 |
|
|
21 |
175-8831
|
Latch |
2 |
|
|
22 |
175-8832
|
Keeper clip |
2 |
|
|
23 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
4 |
|
|
24 |
175-4544
|
Washer M6 locking |
4 |
|
|
25 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
26 |
999-0521
|
Screw M4-.7 x 12mm pan head phillips zinc |
4 |
|
|
27 |
275-9688
|
Housing weldment |
1 |
|
|
28 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
29 |
175-2854
|
Screw M8-1.25 x 45mm hex head stainless steel |
1 |
|
|
30 |
275-9689
|
Lift bracket |
1 |
|
|
31 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
32 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
2 |
|
|
