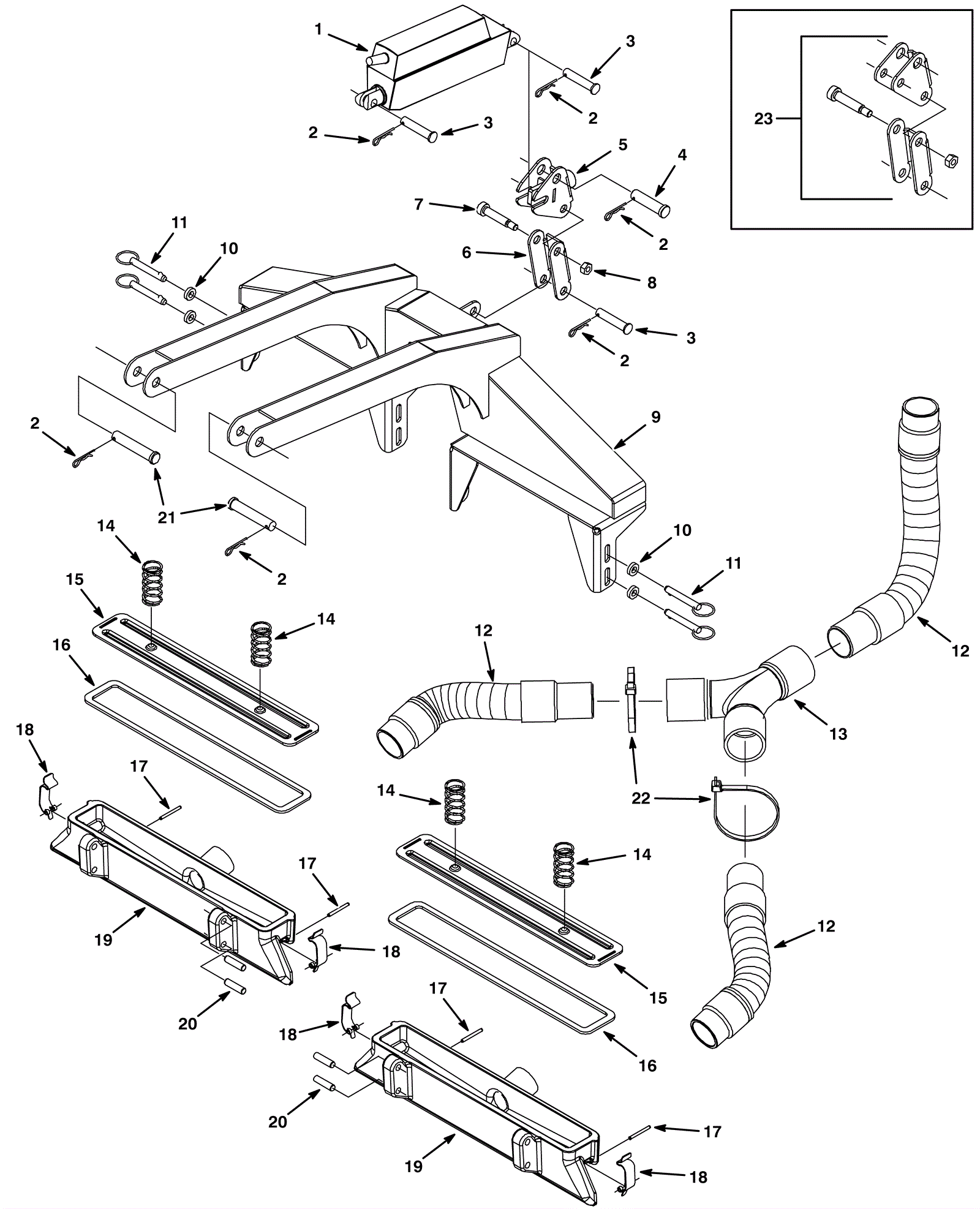

STRIVE RIDER Vacuum Floor Tool Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7142 Actuator $477.51 1 ships same day
2 175-2113 Cotter pin $2.42 6 ships same day
3 275-8195 Clevis pin $5.83 3 ships same day
4 175-2382 Clevis pin $4.84 1 usually ships 5-16 days
5 275-9670 Bellcrank link assembly with spring relief $209.99 1 (after SN 10419188) (includes 6-8) usually ships 1-5 days
6 275-9671 Floor tool link $28.93 1 (after SN 10419188) usually ships 1-5 days
7 275-9672 Screw 10 x 40mm $8.80 1 usually ships 1-5 days
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
9 275-9673 Split low profile floor tool frame weldment $774.40 1 usually ships 1-5 days
10 175-6139 Spacer $3.85 4 usually ships 5-16 days
11 275-8138 Hitch pin $7.92 4 ships same day
12a 275-9674 Vacuum hose 1 1/2 x 12 1/5 (black) $37.18 3 usually ships 5-16 days
12b 991-9190 HOSE, VACUUM, 1.50ID X 012.2L, 2CUFF,BLK $24.06 3 (NON-OEM) usually ships 5-16 days
13 275-9675 Hose fitting $70.62 1 usually ships 5-16 days
14 275-9676 Spring $5.61 4 usually ships 5-16 days
15 275-9677 Carpet tool cover plate $46.20 2 usually ships 5-16 days
16 275-9678 Floor tool cover gasket $8.91 2 ships same day
17 175-8844 Roll pin 1/8 x 1 1/4 inch $2.42 4 ships same day
18 175-8843 Vacuum tool cover mounting clip $4.95 4 usually ships 5-16 days
19 275-9679 Low profile machined floor tool $470.69 2 ships same day
20 275-9680 Dowel pin $9.13 4 usually ships 5-16 days
21 175-5888 Clevis pin 1/2 x 2 1/2 inch $5.61 2 usually ships 1-5 days
22 175-2226 Nylon wire tie $3.30 2 ships same day
23 275-9670 Bellcrank link assembly with spring relief $209.99 1 (before SN 10419189) usually ships 1-5 days
