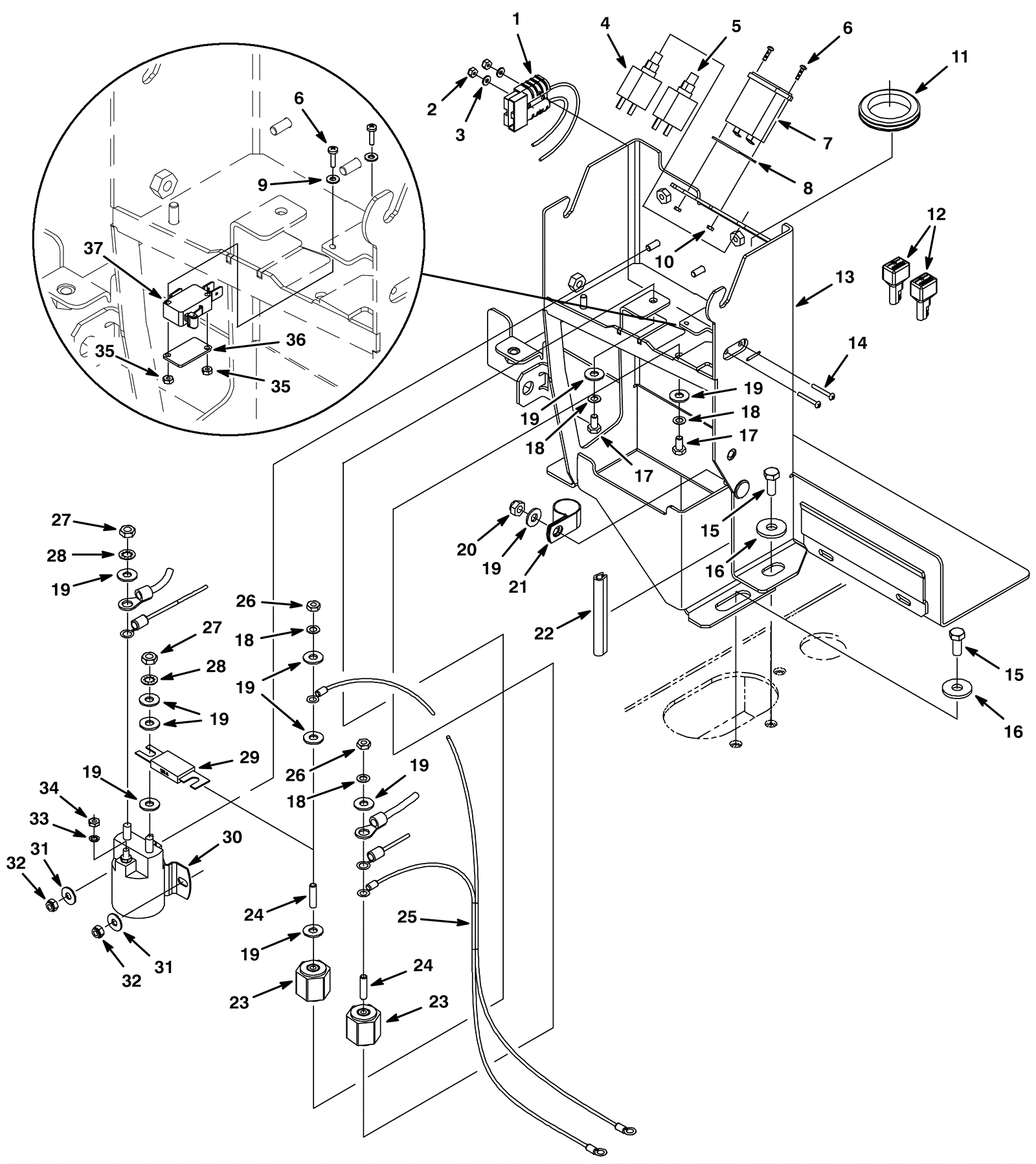

Electrical Assembly

#PartDescription ReqNotesAvailability
1 275-8222 Charger harness 1
2 175-3224 Nut 6-32 hex lock 2
3 999-0377 Washer 6 SAE flat plain finish 2
4 175-0842 15amp circuit breaker 1
5 175-2557 5amp circuit breaker 1
6 175-4933 Screw M3-.5 x 12mm pan head 4
7a 175-7079 Hour meter 1
7b 991-7137 Hour meter 1 (NON-OEM)
8 175-2327 Gasket 1
9 275-9752 Washer .17 flat stainless steel 2
10 999-1161 Nut M3-.5 hex nylock stainless steel 2
11 275-0543 Rubber grommet 1
12 175-2216 Diode plug 2
13 275-4967 Actuator support weldment 1
14 275-8223 SCREW, PAN, PHL, 06-32 X 1.00, G1 (Tennant Industrial) 2
15 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 5
16 175-7920 Washer M8 flat stainless steel 5
17 175-9950 Bolt 1/4-20 x 1/2 hex head nylon lock 2
18 999-0238 Washer 1/4 internal star lock zinc plated 4
19 999-0123 Washer 1/4 SAE flat zinc plated 11
20 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
21 175-2260 P clamp 1
22 275-8203 Molding 1
23 175-3226 Insulated stand off 2
24 275-8221 Rod 1/4-20 full thread 2
25 275-8224 Power harness 1
26 999-0181 Nut 1/4-20 hex jam plain finish 2
27 999-0763 Nut 5/16-24 hex jam plain finish 2
28 999-0406 Washer 5/16 internal star lock zinc plated 2
29 275-1438 100amp fuse 1
30a 175-9139 24V 100amp relay 1
30b 991-1226 24V solenoid 4 post (2 large 2 small) 1 (NON-OEM)
31 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
32 999-0497 Nut M6-1 nylon insert lock stainless steel 2
33 999-0053 Washer #10 split lock plain finish 2
34 275-8219 Nut 10-32 hex head stainless steel 2
35 999-1161 Nut M3-.5 hex nylock stainless steel 2
36 175-1200 Switch backing plate 1
37 175-1199 Snap switch 1
