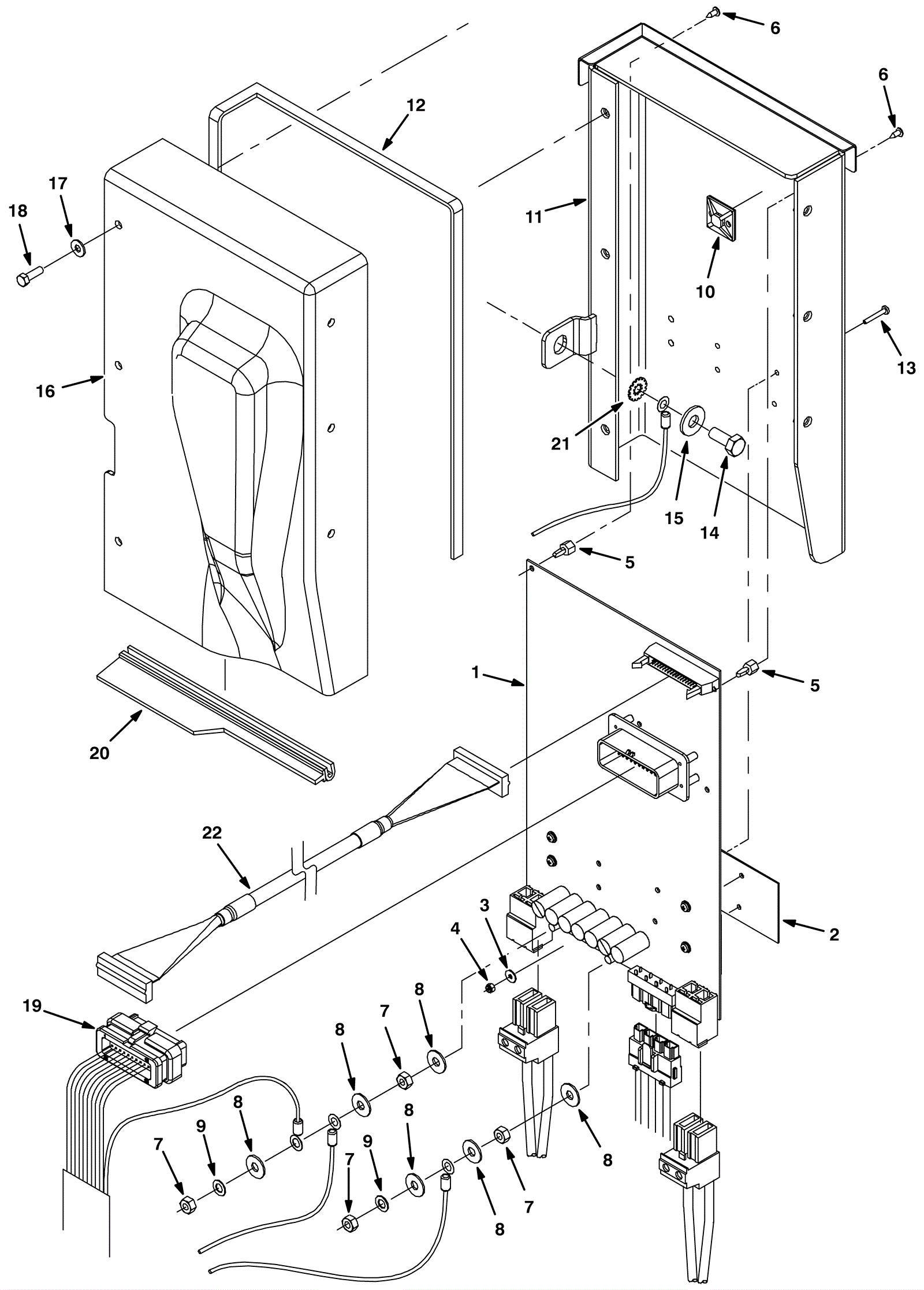

STRIVE RIDER Circuit Board Assembly

#PartDescriptionPriceReqNotesAvailability
1a 275-9668 Controller kit (OBSOLETE) $1,579.38 1 (includes 1b-13) usually ships 1-5 days
1b 275-1425 Static ground strap (Tennant Industrial) $11.19 1 ships same day
2 275-1426 Heat sink thermal pad $21.56 1 usually ships 5-16 days
3 275-1431 Washer 0.14b x 0.31d flat $3.08 4 usually ships 1-5 days
4 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 4 ships same day
5 275-1430 Circuit board support $5.28 2 usually ships 1-5 days
6 999-0434 Screw 6 x 3/8 pan head phillips $0.99 2 ships same day
7 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
8 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 6 ships same day
9 999-0238 Washer 1/4 internal star lock zinc plated $0.99 2 ships same day
10 175-3233 Cable tie mount $3.41 1 usually ships 1-5 days
11 275-8216 Control panel weldment $169.73 1 usually ships 5-16 days
12 N/A Not available Call for price 1 (obsolete with no replacement) usually ships 3-26 days
13 999-1040 Screw M3-.5 x 20mm pan head $0.99 4 ships same day
14 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 1 ships same day
15 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
16 275-8213 Electric cover panel $101.42 1 usually ships 1-5 days
17 175-2009 WASHER, SEALING, 0.28B 0.75D SS, NEO $3.30 6 usually ships 5-16 days
18 175-6939 Screw M5 x 16mm stainless steel $2.97 6 ships same day
19 275-9669 Main harness $1,107.04 1 usually ships 5-16 days
20 275-8214 Seal $30.25 1 usually ships 5-16 days
21 175-2893 Washer 5/16 internal/external locking $3.30 1 usually ships 5-16 days
22 275-8217 Ribbon cable $165.11 1 usually ships 5-16 days
