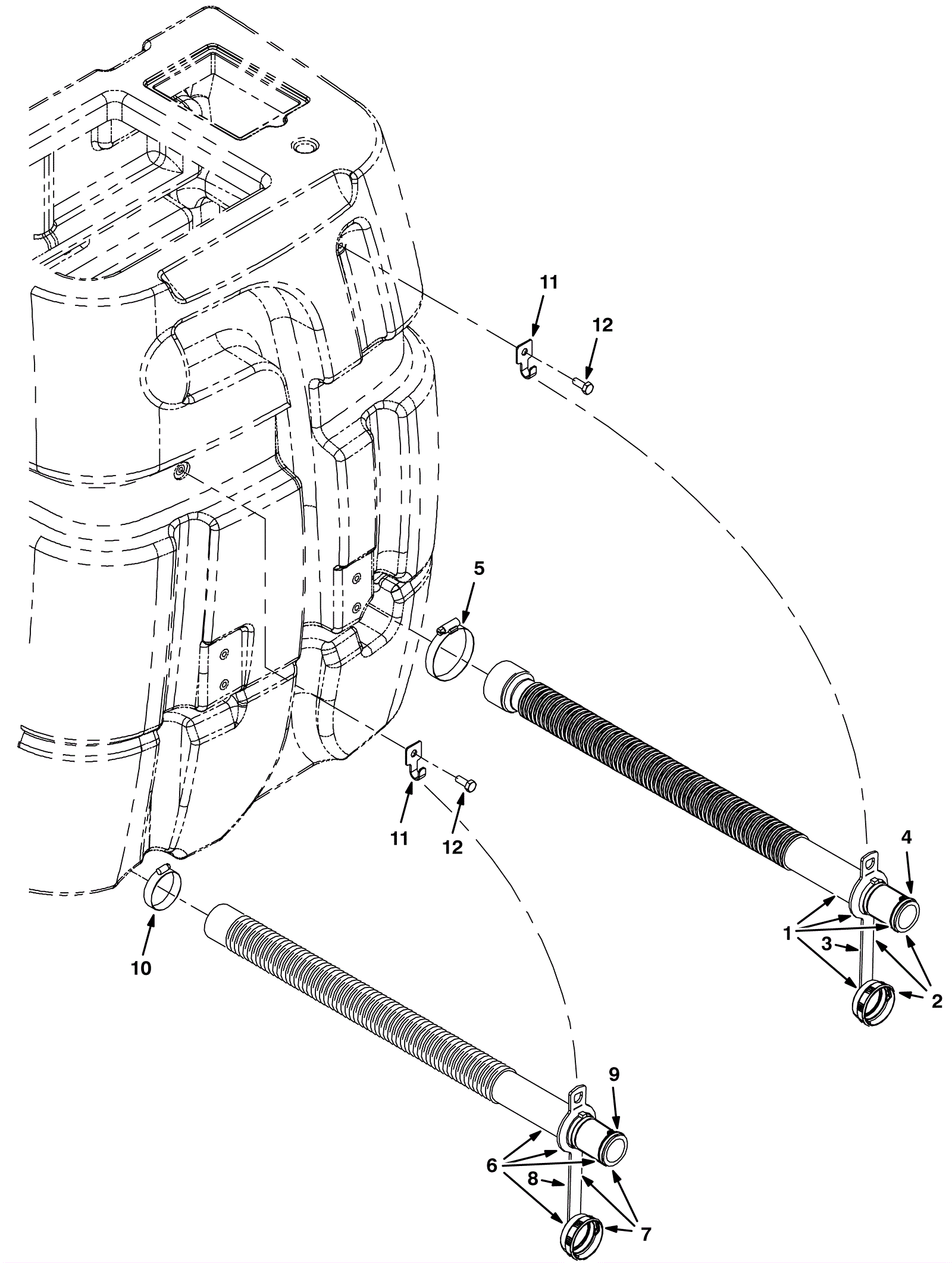

STRIVE RIDER Drain Hose Assembly

#PartDescriptionPriceReqNotesAvailability
1a 275-8189 Recovery drain hose assembly $66.30 1 (includes 2-4) ships same day
1b 991-2423 Hose assembly $50.24 1 ships same day
2a 175-4214 Drain plug assembly $21.78 1 (includes 3 and 4) ships same day
2b 991-3028 Drain plug assembly $14.39 1 ships same day
3 175-4214 Drain plug assembly $21.78 1 ships same day
4 175-5804 O-ring $12.65 1 usually ships 10-16 days
5 997-2006 Hose clamp $3.23 1 ships same day
6 275-1597 Solution drain hose assembly $89.43 1 (includes 7-9) ships same day
7a 175-4214 Drain plug assembly $21.78 1 (includes 8 and 9) ships same day
7b 991-3028 Drain plug assembly $14.39 1 ships same day
8 175-4214 Drain plug assembly $21.78 1 ships same day
9 175-5804 O-ring $12.65 1 usually ships 10-16 days
10 997-2000 Hose clamp $2.37 1 ships same day
11 175-2256 Hose hanger clip $7.37 2 ships same day
12 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 ships same day
