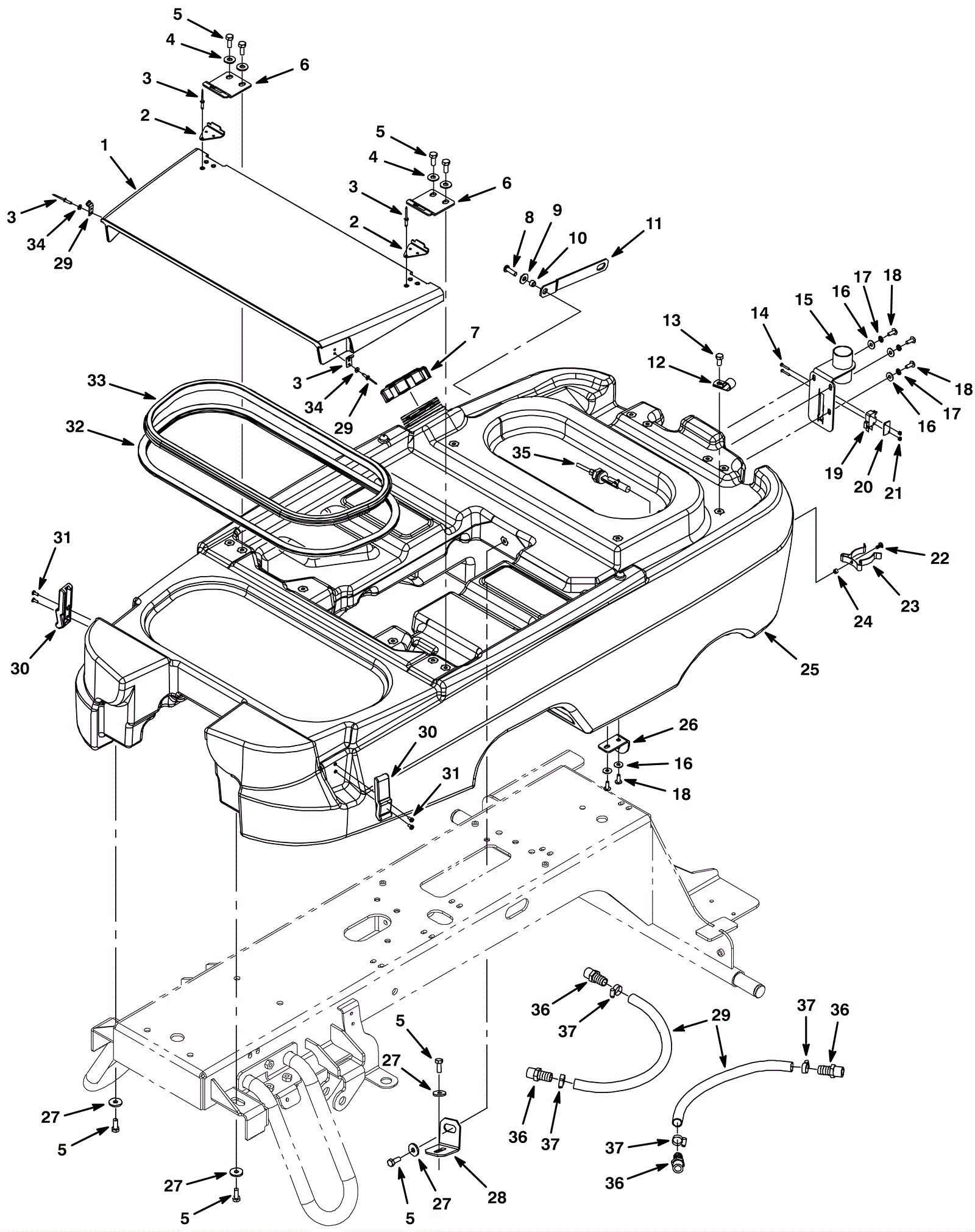

Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 275-9747 Solution tank cover 1
2 275-9749 Tab plate 2
3 275-9403 Blind rivet 10
4 999-9097 Washer M8 flat stainless steel 4
5 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 4
6 275-9748 Catch 1
7 275-8185 Tank cap 4
8 999-0910 Screw M8-1.25 x 25mm button head socket 1
9 275-8068 Washer 1/2 flat steel 1
10 175-2263 Sleeve 1
11 275-8186 Tank arm 1
12 175-0559 P clamp 2
13 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 2
14 999-1040 Screw M3-.5 x 20mm pan head 2
15 275-9663 Vacuum hose bracket 1
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 5
17 175-4544 Washer M6 locking 3
18 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 5
19 275-6035 Switch 1
20 175-1200 Switch backing plate 1
21 999-1161 Nut M3-.5 hex nylock stainless steel 2
23 275-9664 Tool clip 1
24 175-4732 Nylon spacer 1
25 275-9859 Solution tank with decal 1
26 275-9666 Hose bracket 1
27 175-7920 Washer M8 flat stainless steel 4
28 275-8184 Tank mounting bracket 1
29 275-9667 36 inch PVC hose 1
30a 175-3369 Hood latch 2
30b 991-8561 Rubber draw latch with keeper 2
31 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 4
32 275-8181 8 foot closed cell bulb seal 2
33 275-8182 8 foot closed cell bulb seal 5
34 999-1215 Washer #6 SAE flat zinc plated 4
35 175-9554 Float switch 1
36 275-4219 FITTING, PLSTC, STR, BM10/PM08 (Tennant Industrial) 4
37 175-6081 Hose clamp 4
