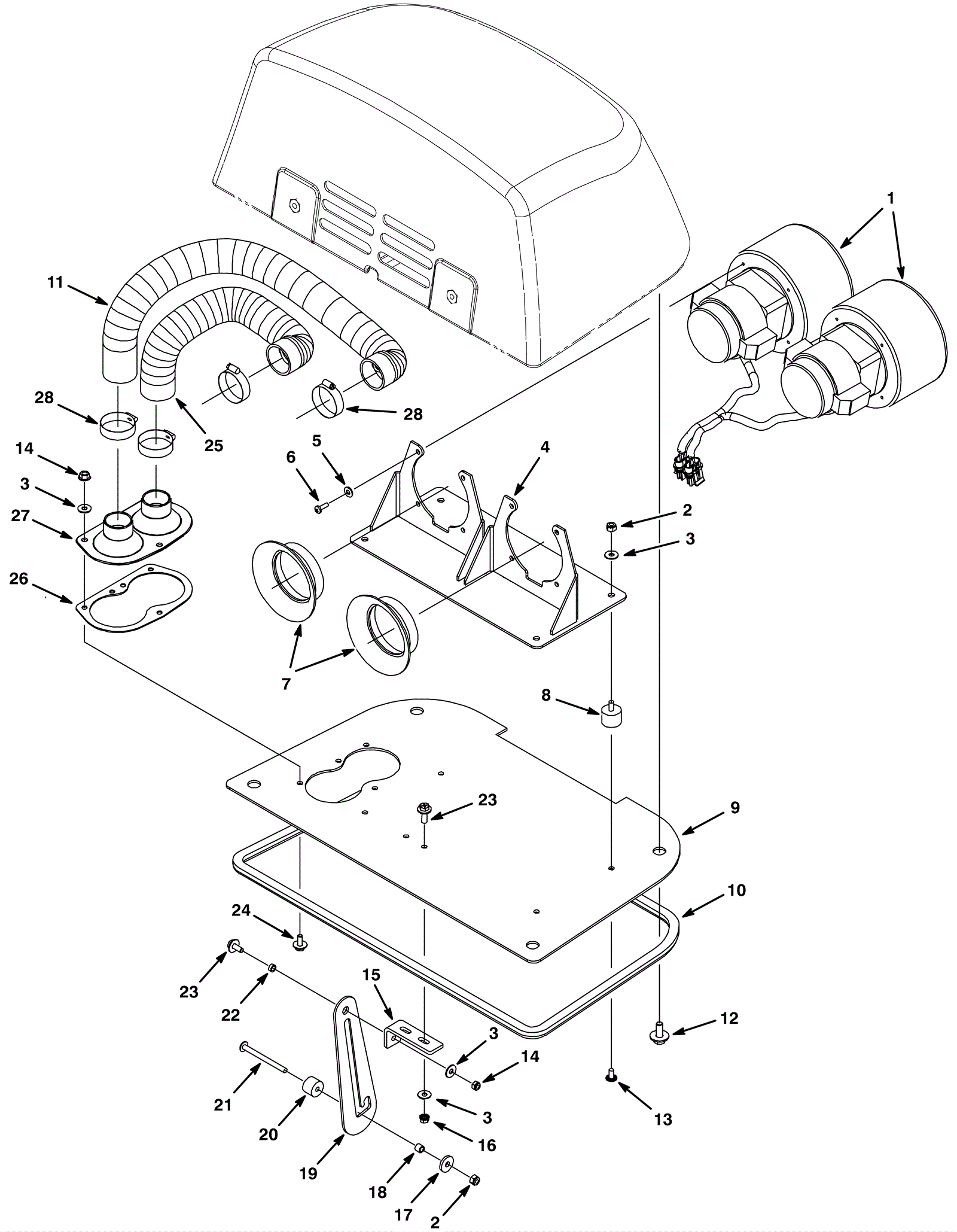

# | Part | Description | Price | Req | Notes | Availability |
1a |
275-8003
|
24V 3 stage vacuum motor |
$220.89
|
2 |
(includes 1b and 1c) |
ships same day |
1b |
175-7791
|
Carbon brush (pkg of 2) |
$36.41
|
2 |
|
ships same day |
1c |
175-5275
|
Housing |
$19.60
|
2 |
|
usually ships 6-16 days |
1d |
991-1253-D
|
24V 3 stage vacuum motor peripheral w/ intake & Delphi plug |
$237.37
|
2 |
|
ships same day |
2 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
$0.99
|
5 |
|
ships same day |
3 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
11 |
|
ships same day |
4 |
275-9659
|
Fan mounting bracket weldment |
$86.70
|
1 |
|
usually ships 1-5 days |
5 |
999-0006
|
Washer 3/16 flat zinc plated |
$0.99
|
8 |
|
ships same day |
6 |
275-8168
|
Screw M5 x 16mm pan head |
$3.19
|
8 |
|
ships same day |
7 |
275-8172
|
Motor seal |
$9.90
|
2 |
|
ships same day |
8 |
175-5513
|
Neoprene stud |
$16.61
|
4 |
|
usually ships 6-16 days |
9 |
275-9660
|
Fan plate weldment |
$148.70
|
1 |
|
usually ships 6-16 days |
10 |
275-9661
|
Bulb seal |
$41.91
|
1 |
|
usually ships 6-16 days |
11 |
275-9138
|
Vacuum hose |
$20.20
|
1 |
|
usually ships 1-5 days |
12 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
$3.30
|
4 |
|
ships same day |
13 |
999-0821
|
Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc |
$0.90
|
4 |
|
ships same day |
14 |
999-6694
|
Nut M6-1 hex serrated flange stainless steel |
$0.99
|
4 |
|
ships same day |
15 |
275-9399
|
Bracket |
$63.25
|
1 |
|
usually ships 6-16 days |
16 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
$1.03
|
2 |
|
ships same day |
17 |
175-1097
|
Washer flat stainless steel |
$4.73
|
1 |
|
ships same day |
18 |
175-0152
|
Spacer |
$3.85
|
1 |
|
ships same day |
19 |
275-9400
|
Bracket arm |
$37.51
|
1 |
|
usually ships 6-16 days |
20 |
175-6685
|
Spacer |
$3.30
|
1 |
|
ships same day |
21 |
275-9401
|
Screw 1/4-20 x 3 truss head phillips stainless steel |
$2.42
|
1 |
|
usually ships 6-16 days |
22 |
175-0777
|
P/M sleeve |
$4.84
|
1 |
|
usually ships 6-16 days |
23 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
$0.99
|
3 |
|
ships same day |
24 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
$0.99
|
3 |
|
ships same day |
25 |
275-9662
|
Vacuum hose |
$14.20
|
1 |
|
usually ships 6-16 days |
26 |
275-6032
|
Adapter gasket |
$8.10
|
1 |
|
usually ships 6-16 days |
27 |
275-6031
|
Hose adapter |
$9.30
|
1 |
|
usually ships 6-16 days |
28 |
997-2000
|
Hose clamp |
$2.37
|
4 |
|
ships same day |
