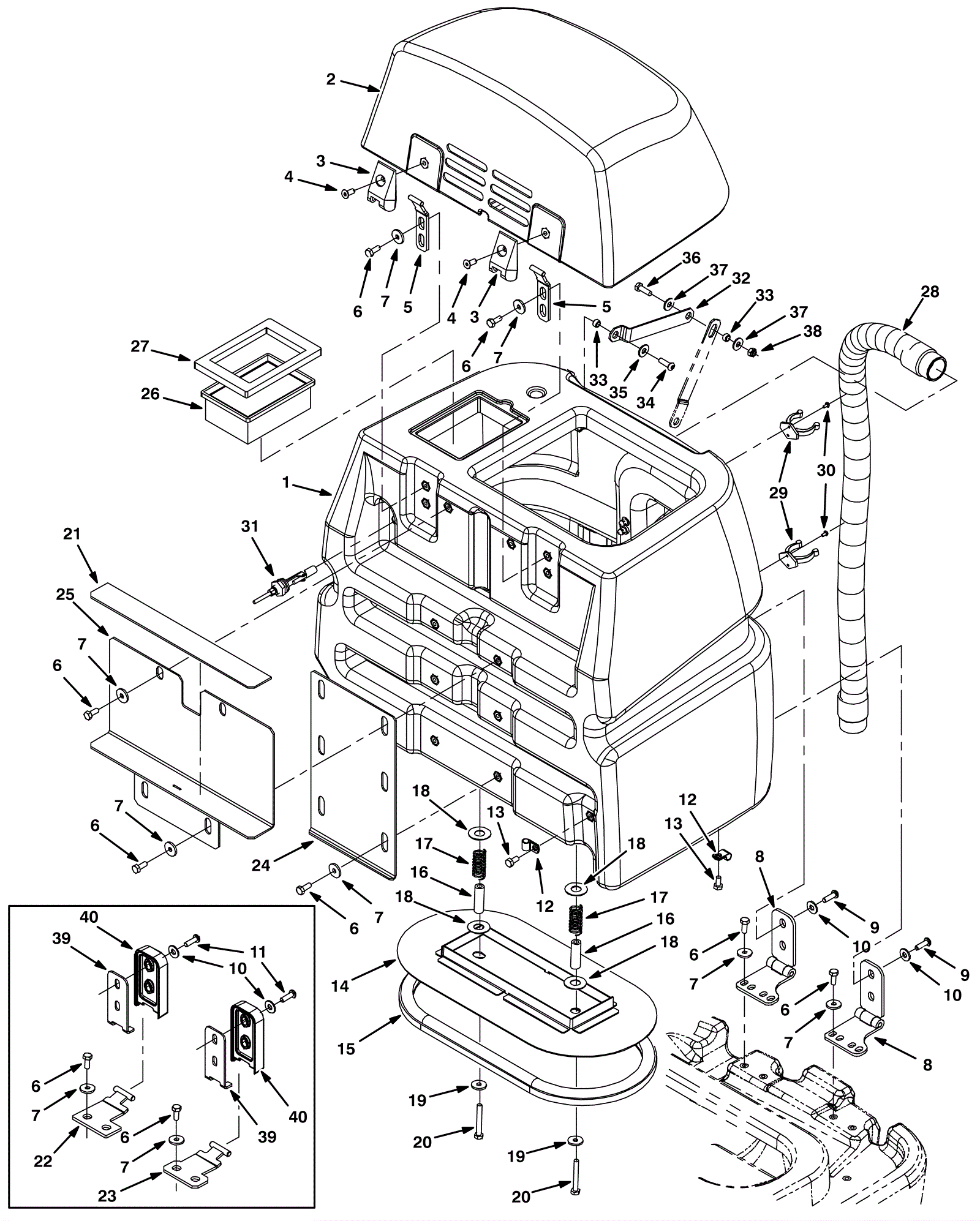

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1 275-9857 Recovery tank with decal 1
2 275-9858 Recovery tank cover 1
3 175-2271 Leaf hinge 2
4 999-1324 Screw M8-1.25 x 20mm flat head stainless steel 2
5 275-8152 Hinge 2
6 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 16
7 175-7920 Washer M8 flat stainless steel 16
8 275-9394 Hinge weldment kit 2
9 175-4927 Screw M8-1.25 x 20mm button head 4
10 275-8068 Washer 1/2 flat steel 4
11 999-0910 Screw M8-1.25 x 25mm button head socket 4 (before SN 10346364)
12 175-0559 P clamp 4
13 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 4
14 275-8155 Plate weldment 1
15 275-8156 Seal 1
16 275-8157 Spacer 2
17 275-1215 Compression spring 2
18 175-7361 Washer 11/16 x 1/2 flat stainless steel 4
19 175-7920 Washer M8 flat stainless steel 2
20 999-1155 Screw M8-1.25 x 60mm hex head 2
21 275-8159 Rubber pad 1
22 275-9394 Hinge weldment kit 1 (before SN 10346364)
23 275-9394 Hinge weldment kit 1 (before SN 10346364)
24 275-8162 Tank support plate 1
25 275-9657 Tank support bracket weldment 1
26a 175-2259 Vacuum fan filter 1 (OEM)
26b 991-9073 Vacuum fan filter 1 (NON-OEM)
27 275-8164 Filter gasket 1
28 275-9658 Vacuum hose (black) 1
29 275-8165 Hose clip 2
30 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 4
31 175-9554 Float switch 1
32 275-9395 Tank arm 1
33 175-2263 Sleeve 2
34 999-0910 Screw M8-1.25 x 25mm button head socket 2
35 275-8068 Washer 1/2 flat steel 1
36 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 1
37 999-9097 Washer M8 flat stainless steel 2
38 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
39 275-9394 Hinge weldment kit 2 (before SN 10346364)
40 275-9394 Hinge weldment kit 2 (before SN 10346364)
