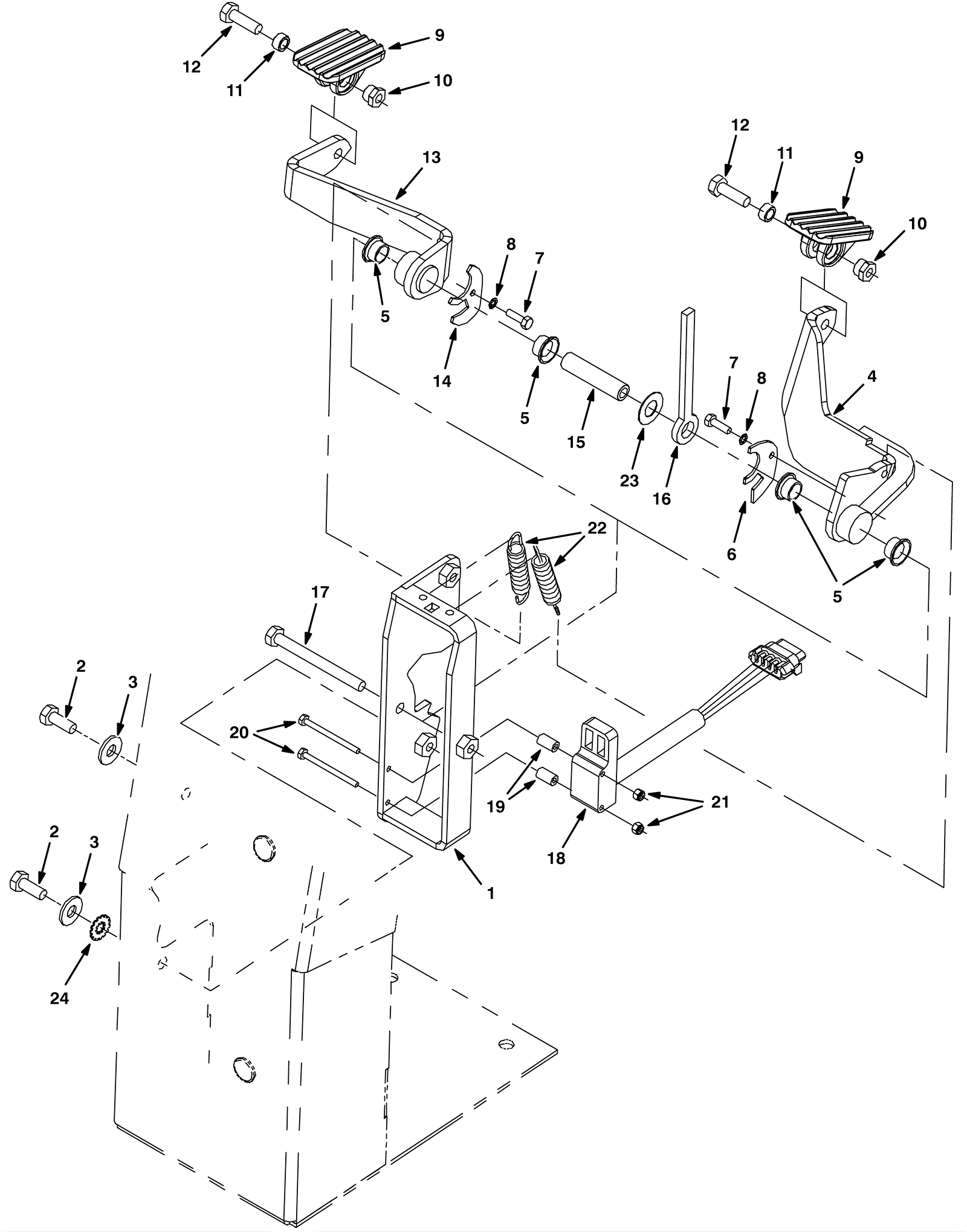

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-9358
|
Pedal assembly |
1 |
|
|
2 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
3 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
4 |
275-8099
|
Brake arm weldment |
1 |
|
|
5 |
175-3335
|
Flanged bushing |
4 |
|
|
6 |
275-8100
|
Brake plate |
1 |
|
|
7 |
175-6939
|
Screw M5 x 16mm stainless steel |
2 |
|
|
8 |
999-0053
|
Washer #10 split lock plain finish |
2 |
|
|
9 |
275-8101
|
Foot pedal |
2 |
|
|
10 |
275-8102
|
Nut M8 x -1.25 T |
2 |
|
|
11 |
275-8103
|
Sleeve bushing |
2 |
|
|
12 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
2 |
|
|
13 |
275-8104
|
Accelerator arm weldment (OBSOLETE) |
1 |
|
|
14 |
275-8105
|
Accelerator plate |
1 |
|
|
15 |
275-8106
|
Tube pivot |
1 |
|
|
16 |
275-8107
|
Thrust bearing |
1 |
|
|
17 |
275-0066
|
Screw M8-1.25 x 80mm hex head 8.8 |
1 |
|
|
18 |
275-7039
|
Hall sensor |
1 |
|
|
19 |
275-8109
|
Stand off tube |
2 |
|
|
20 |
999-1947
|
Screw M4-.7 x 50 hex stainless steel |
2 |
|
|
21 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
2 |
|
|
22 |
275-9360
|
Extension spring |
2 |
|
|
23 |
999-1156
|
Washer M12-.7 nylon |
1 |
|
|
24 |
175-2893
|
Washer 5/16 internal/external locking |
1 |
|
|
