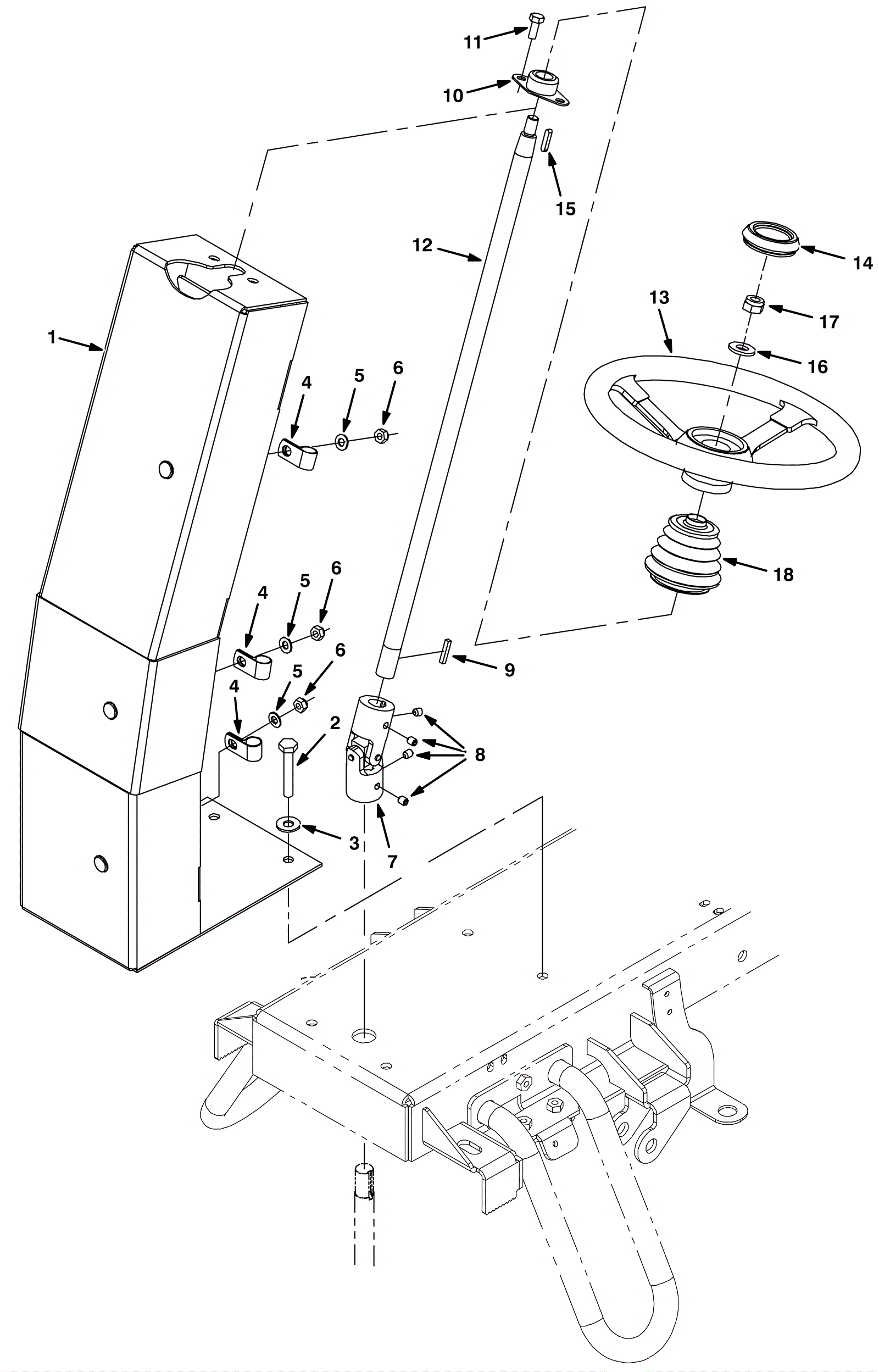

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-8077
|
Steering support weldment |
1 |
|
|
2 |
999-1321
|
Screw M10-1.5 x 70mm hex head stainless steel |
4 |
|
|
3 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
|
4 |
175-2260
|
P clamp |
3 |
|
|
5 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
3 |
|
|
6 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
3 |
|
|
7 |
275-5323
|
U joint |
1 |
|
|
8 |
175-4926
|
Screw 5/16-18 x 3/8 set nylon lock |
4 |
|
|
9 |
175-3200
|
Square keyway |
1 |
|
|
10 |
175-3201
|
Flanged bearing |
1 |
|
|
11 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
12 |
275-8078
|
Steering wheel shaft |
1 |
|
|
13 |
275-8079
|
Steering wheel |
1 |
|
|
14 |
275-8080
|
Steering wheel cap |
1 |
|
|
15 |
275-1468
|
Square keyway |
1 |
|
|
16 |
275-9343
|
WASHER, FLAT, 0.53B 1.12D .11, STL, PL (Tennant Industrial) |
1 |
|
|
17 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
1 |
|
|
18 |
275-8081
|
Steering shaft bellows |
1 |
|
|
