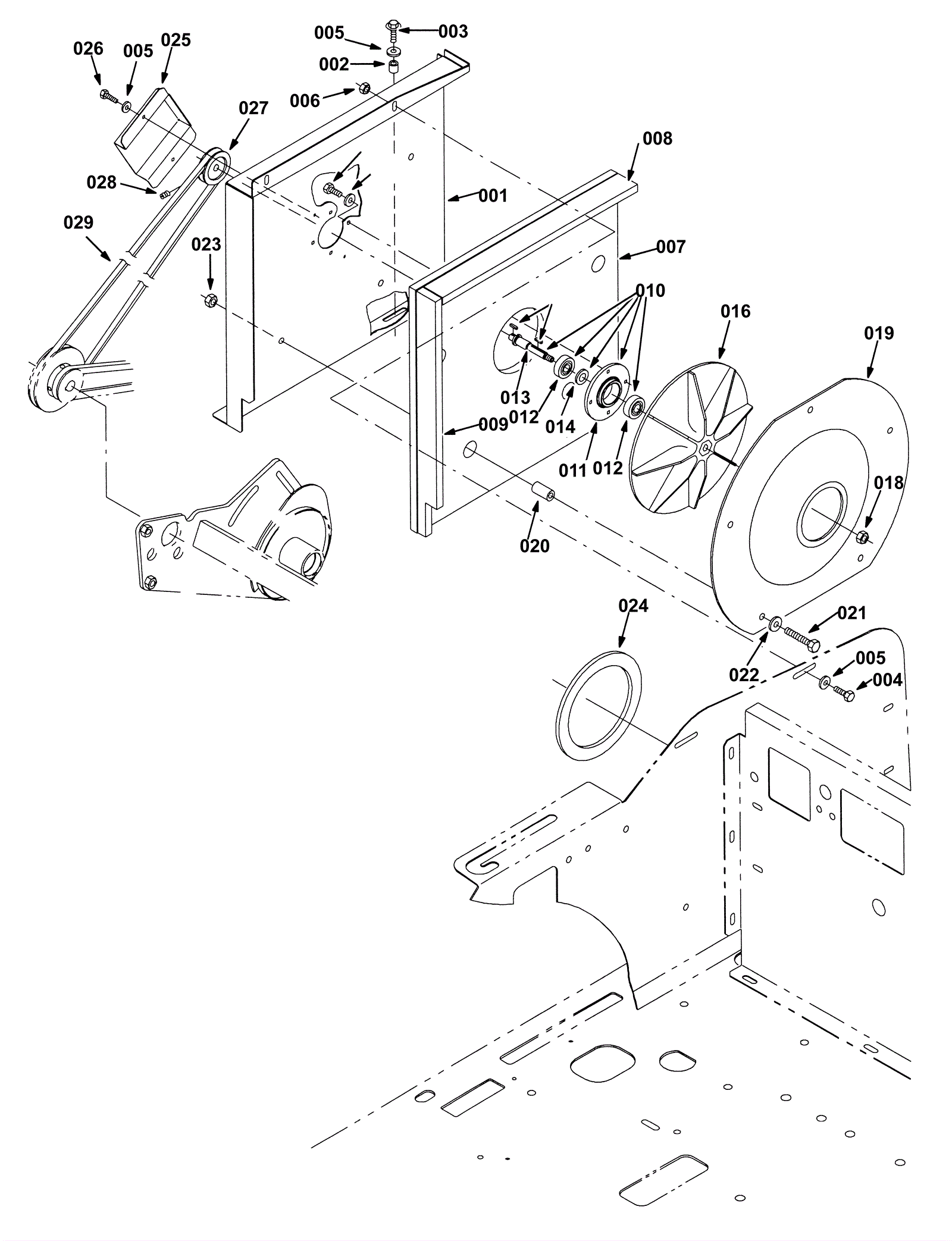

6100 Vacuum Fan Assembly

#PartDescriptionPriceReqNotesAvailability
001 275-0852 Housing bearing plate $116.82 1 usually ships 1-5 days
002 175-2249 Sleeve $3.08 2 ships same day
003 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 2 ships same day
004 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
005 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
006 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
007 175-6966 MOTOR, HYD, GEAR, EXT 0.40 LH 3000 (Tennant Industrial) $743.15 1 usually ships 1-5 days
008 275-0853 Insulation $7.15 1 usually ships 1-5 days
009 175-7213 VALVE, CNTRL, HYD, SOLENOID, 12VDC 10GPM (Tennant Industria $2,453.73 1 usually ships 1-5 days
010 275-0509 Vacuum fan bearing replacement kit $147.18 1 usually ships 5-16 days
011 275-0510 Vacuum fan bearing housing $27.28 1 usually ships 1-5 days
012 275-0511 Ball bearing $16.50 2 usually ships 5-16 days
013 275-0512 Vacuum fan drive shaft $100.32 1 usually ships 1-5 days
014 275-0513 Washer .52b .9d flat steel plated $6.93 1 usually ships 1-5 days
015 275-0092 Washer 1/4 flat belleville $3.19 4 usually ships 5-16 days
016 275-0514 Impeller $94.16 1 usually ships 1-5 days
017 175-9158 Square key 1/8 x 1/8 inch $3.30 2 usually ships 1-5 days
018 175-9286 Nut 5/16 x 24 hex flex lock thin plated $3.96 1 usually ships 1-5 days
019 275-0854 Fan (painted) plate $79.64 1 usually ships 1-5 days
020 275-0855 Tube $8.91 5 usually ships 5-16 days
021 999-0309 Bolt M8-1.25 x 50mm hex head part thread zinc $0.99 5 ships same day
022 999-0024 Washer 5/16 flat stainless steel $1.34 5 ships same day
023 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 5 ships same day
024 275-0856 Vac fan seal $7.92 1 usually ships 1-5 days
025 275-0507 Fan sheave guard $23.76 1 usually ships 1-5 days
026 175-5113 Bolt M6 x 12mm hex head $2.42 2 usually ships 1-5 days
027 275-0518 SHEAVE, 01GRV, 01.6PD 0.38B [3L] (Tennant Industrial) $98.03 1 usually ships 1-5 days
028 275-0516 Screw M6-1 x 6 set socket head $3.08 2 usually ships 1-5 days
029 275-0857 Belt $19.25 1 usually ships 5-16 days
030 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 4 ships same day
