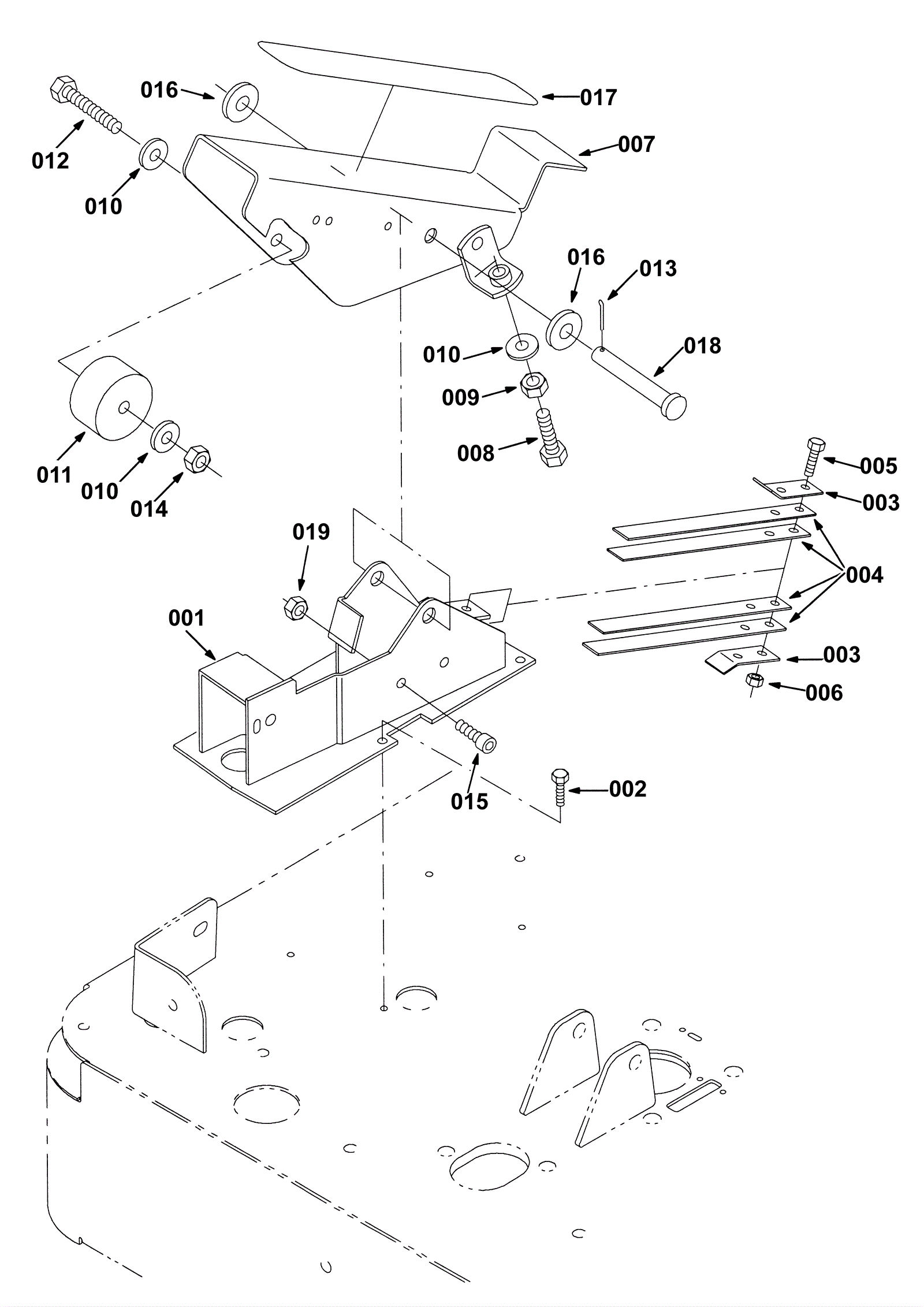

6100 Directional Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-3297 Control plate weldment (Tennant Industrial) $96.03 1 usually ships 5-16 days
002 999-1319 Screw M6-1 x 12mm hex head plain finish $0.99 4 ships same day
003 175-3299 Spring retainer $16.83 2 usually ships 1-5 days
004 175-3300 Strip stainless $16.83 4 usually ships 1-5 days
005 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 2 ships same day
006 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
007 175-3301 Accelerator pedal weldment $73.15 1 usually ships 1-5 days
008 175-3285 Bolt 1/4-20 x 5/16-1 shoulder $6.60 1 usually ships 1-5 days
009 999-0767 Nut M10-1.5 hex coarse thread $0.99 1 ships same day
010 999-0120 Washer 3/8 SAE flat $0.99 3 ships same day
011 175-3303 Spacer $7.26 1 usually ships 1-5 days
012 999-9081 Screw M10-1.5 x 65mm hex head stainless steel $2.99 1 ships same day
013 175-3281 Cotter pin $2.42 1 usually ships 5-16 days
014 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 1 usually ships 1-5 days
015 999-0802 Screw M8-1.25 x 16mm socket head $0.99 2 ships same day
016 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
017 175-3307 Non-skid tread $5.83 1 usually ships 5-16 days
018 175-3280 Clevis pin $5.83 1 usually ships 5-16 days
019 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
