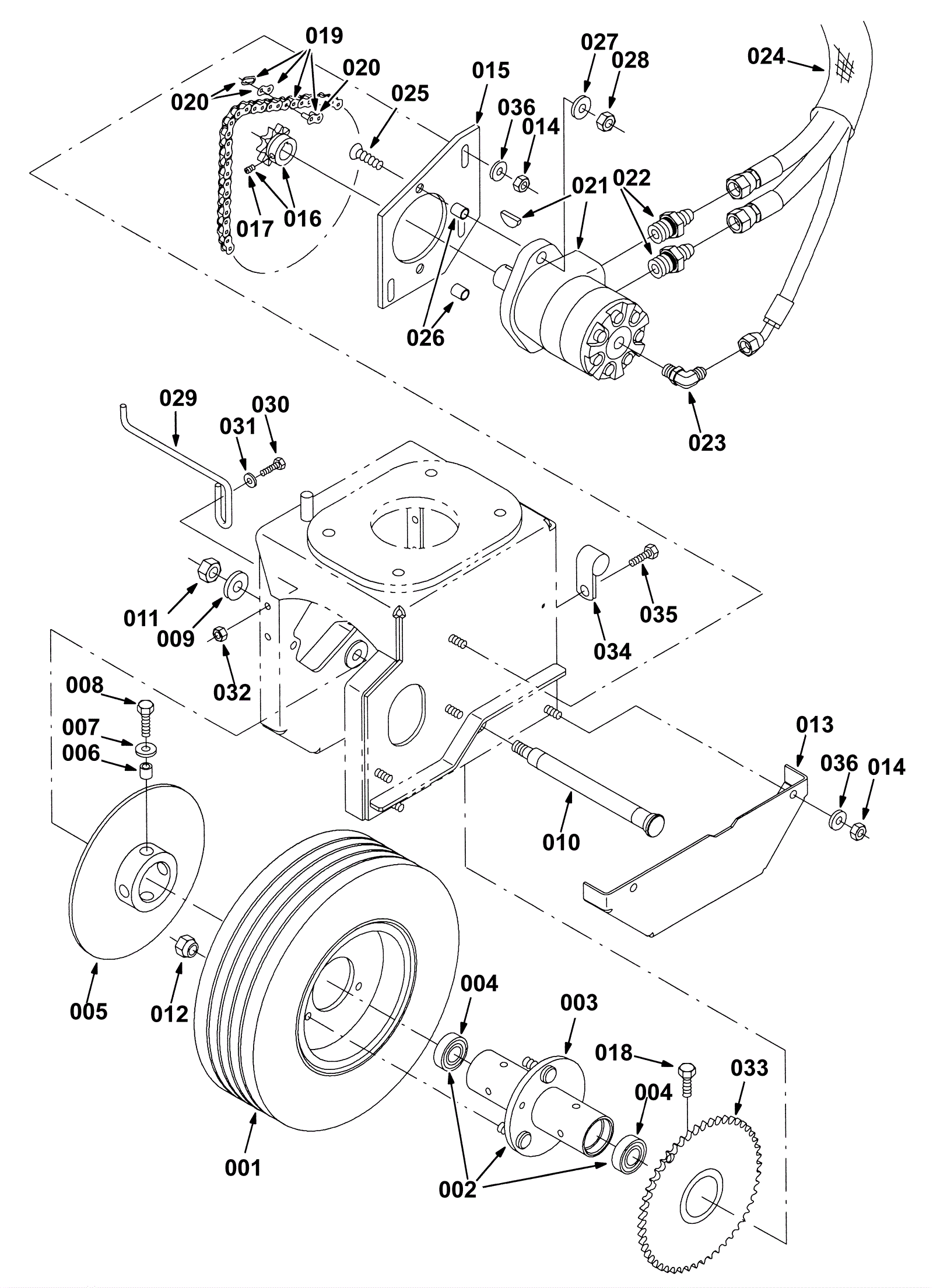

6100 Front Drive Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-3296 Solid tire assembly $204.05 1 usually ships 5-16 days
002 275-0717 Front wheel bearing assembly $301.40 1 usually ships 1-5 days
003 275-0718 Front wheel housing $380.71 1 usually ships 1-5 days
004 175-9998 Ball bearing $12.98 2 usually ships 5-16 days
005 275-0719 Brake disc weldment $686.62 1 usually ships 1-5 days
006 175-2249 Sleeve $3.08 4 ships same day
007 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
008 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 4 ships same day
009 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
010 275-0720 Front wheel axle $361.02 1 usually ships 1-5 days
011 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 1 ships same day
012 175-2208 Plastic star knob $3.96 3 ships same day
013 275-0721 Guard chain (Tennant Industrial) (OBSOLETE) $102.88 1 usually ships 1-5 days
014 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 5 ships same day
015 275-0722 PLATE, MTG (Tennant Industrial) (OBSOLETE) $184.13 1 usually ships 1-5 days
016 275-0723 SPROCKET, 40, 12TOOTH, 1.00B 0.88W (Tennant Industrial) $35.91 1 usually ships 1-5 days
017 275-0724 Screw M1/4 - 20 x 5/16 socket set $4.29 2 usually ships 1-5 days
018 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
019 275-0725 CHAIN, RLR, 40 X 049 PITCHES, ORG (Tennant Industrial) $149.13 1 usually ships 5-16 days
020 275-0726 Masterlink $13.20 1 usually ships 5-16 days
021 275-0727 MOTOR, HYD, GEAR, INT 02.2 BI-DIR 2500 (Tennant Industrial) $862.72 1 usually ships 1-5 days
022 275-0425 Straight hydraulic fitting $13.97 2 usually ships 1-5 days
023 175-6919 Elbow fitting $13.97 1 usually ships 5-16 days
024 275-0426 Number 27 nylon sleeve 65l $41.69 1 usually ships 5-16 days
025 999-9142 Screw M10-1.5 x 35mm flat head $2.27 2 usually ships 11-24 days
026 275-0439 BRACKET WLDT, MTG, RECIRCULATION (Tennant Industrial) $99.87 2 usually ships 1-5 days
027 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
028 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 2 usually ships 1-5 days
029 275-0728 ROD, SPPT, HOSE (Tennant Industrial) $27.39 2 usually ships 1-5 days
030 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 4 ships same day
031 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
032 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 4 ships same day
033 275-0571 SEAL, HPPR, LIP (Tennant Industrial) $45.09 1 usually ships 1-5 days
034 175-3171 Cable clamp $4.95 1 usually ships 1-5 days
035 999-1319 Screw M6-1 x 12mm hex head plain finish $0.99 1 ships same day
036 999-0105 Washer 5/16 external star lock zinc plated $0.99 5 ships same day
