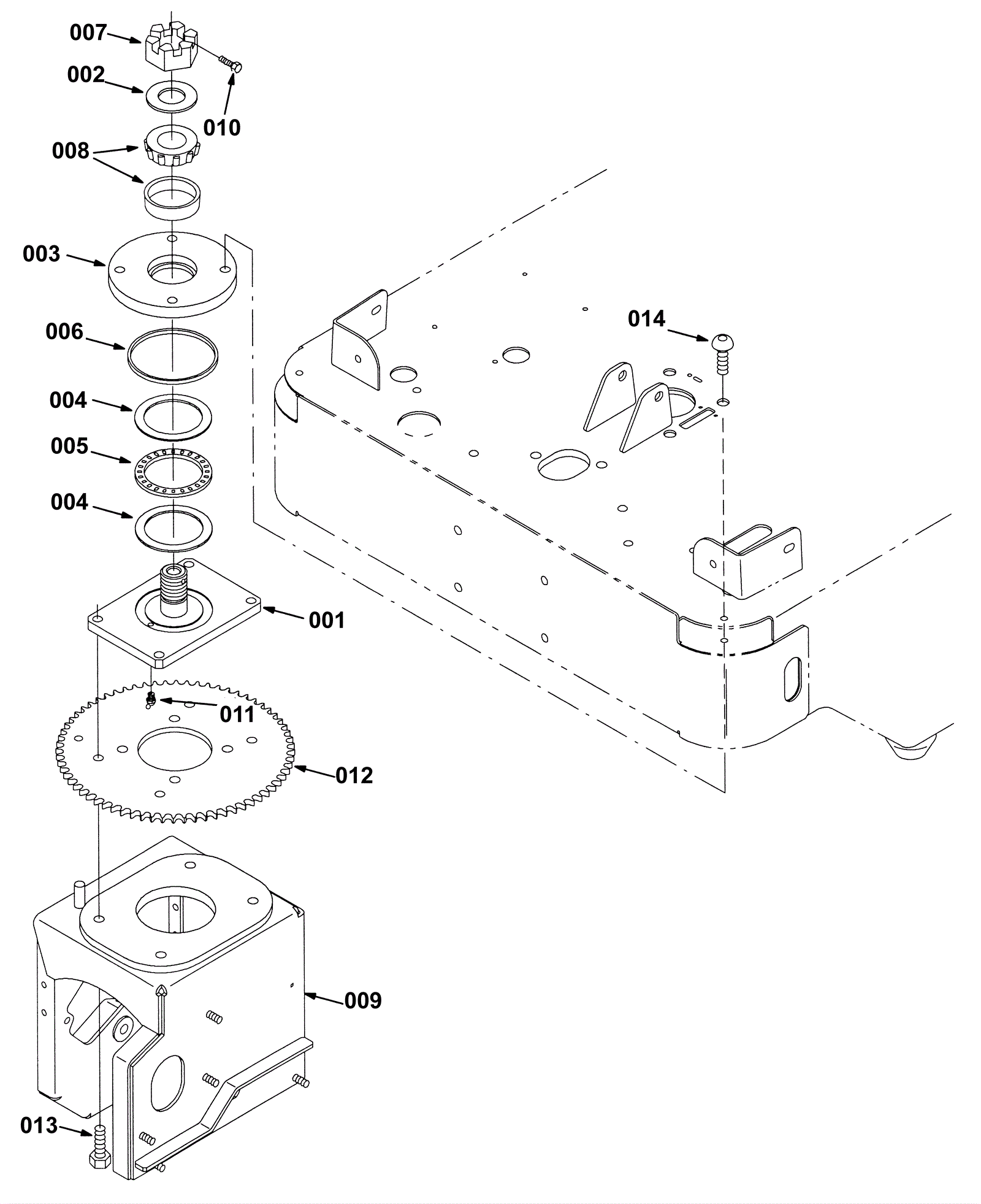

6100 Front Wheel Pivot Assembly

#PartDescriptionPriceReqNotesAvailability
001 275-0714 Swivel plate weldment $819.39 1 usually ships 5-16 days
002 175-3254 Washer $6.60 1 usually ships 5-16 days
003 175-3252 Bottom swivel plate $276.98 1 usually ships 5-16 days
004 175-3249 Washer thrust $6.60 2 usually ships 5-16 days
005 175-3250 Thrust bearing $21.45 1 usually ships 5-16 days
006 175-3251 Felt seal $7.92 1 usually ships 5-16 days
007 175-3255 Nut hexslot 1 1/4 x 12 $9.35 1 usually ships 1-5 days
008 175-3253 Bearing assembly cup/cone $97.35 1 usually ships 5-16 days
009 275-0715 Front wheel housing weldment (Tennant Industrial) (OBSOLETE) $2,687.88 1 usually ships 1-5 days
010 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 1 ships same day
011 275-0716 Grease fitting $12.87 1 usually ships 1-5 days
012 175-9970 Drive steering sprocket $39.82 1 usually ships 1-5 days
013 175-6784 Screw M12- 1.75 x 30mm hexhead $3.96 4 usually ships 1-5 days
014 175-3256 Screw M12-1.75 x 25mm button head $7.26 4 usually ships 1-5 days
