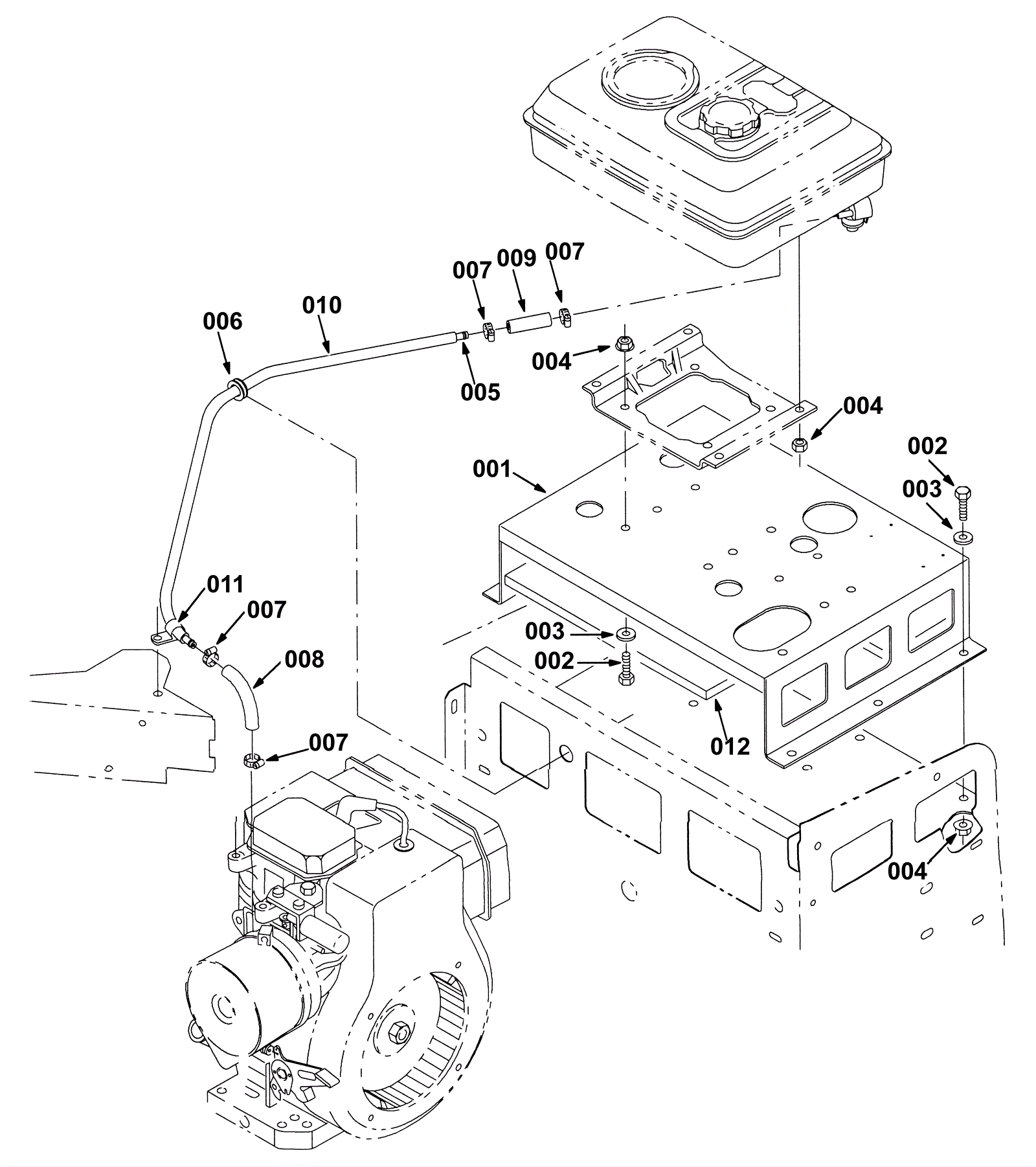

6100 Fuel Line Assembly - Gas

#PartDescriptionPriceReqNotesAvailability
001 275-0682 Vacuum box bracket (OBSOLETE) $141.13 1 usually ships 1-5 days
002 999-0783 Screw M8-1.25 x 16mm hex head $0.99 10 ships same day
003 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 10 ships same day
004 999-0665 Nut M8-1.25 flange lock $0.99 10 ships same day
005 275-0683 FUELLINE, .31D BEAD/BEAD (Tennant Industrial) $83.02 1 usually ships 1-5 days
006 275-0684 Rubber grommet $3.30 1 usually ships 1-5 days
007 175-3594 Hose clamp $5.28 4 usually ships 10-13 days
008 275-0685 HOSE, FUEL, 0.31ID, 05.0L (Tennant Industrial) $12.67 1 usually ships 1-5 days
009 275-0686 Fuel hose $3.83 1 usually ships 1-5 days
010 275-0687 HOSE, FUEL, 0.38ID, 24.0L (Tennant Industrial) $14.17 1 usually ships 1-5 days
011 175-0559 P clamp $3.30 1 usually ships 10-13 days
012 275-0688 Heat insulation (Tennant Industrial) (OBSOLETE) $13.38 1 usually ships 1-5 days
