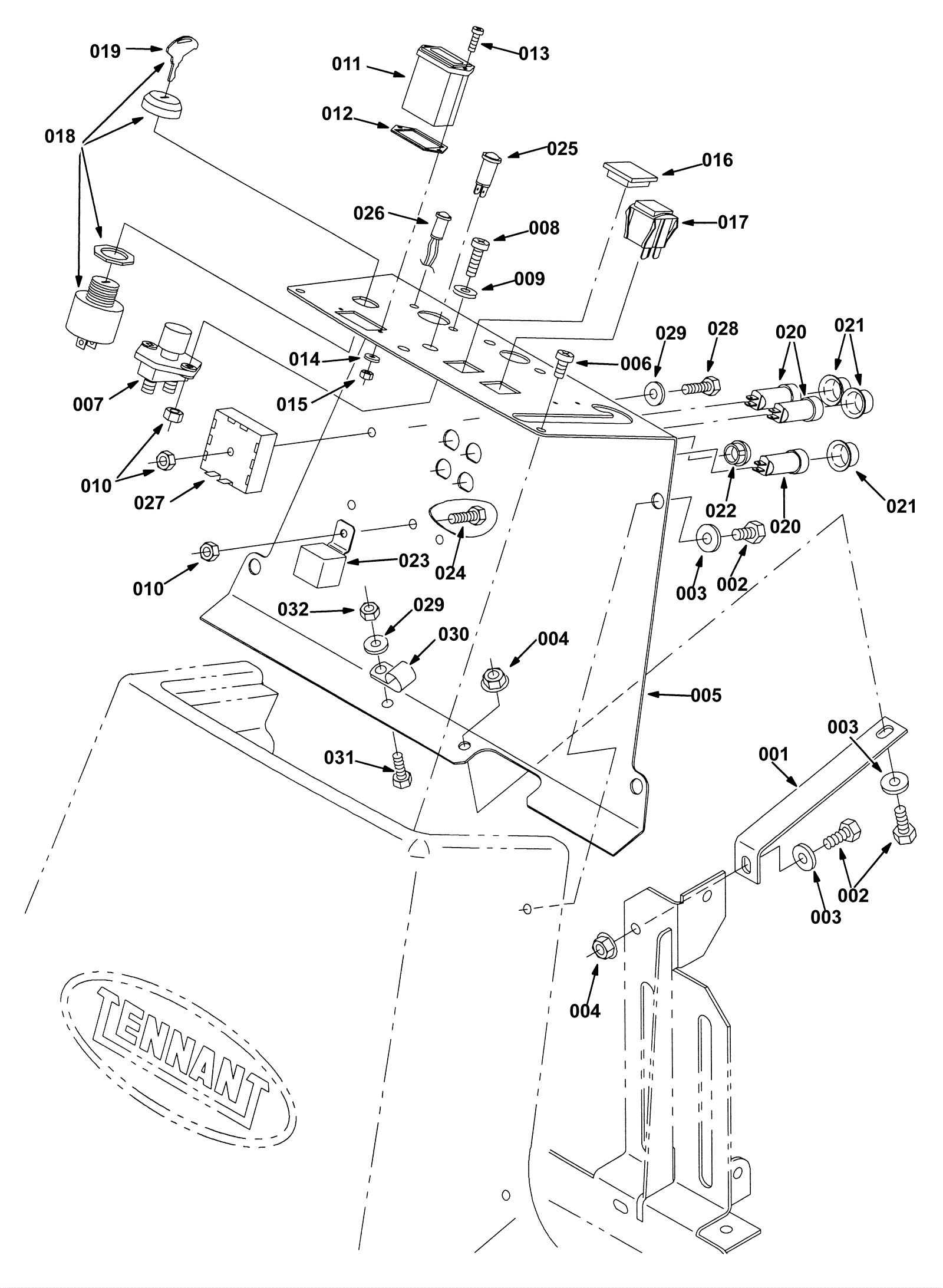

6100 Instrument Panel Assembly

#PartDescriptionPriceReqNotesAvailability
001 275-0673 Brace $15.07 1 usually ships 1-5 days
002 999-0783 Screw M8-1.25 x 16mm hex head $0.99 6 ships same day
003 999-0024 Washer 5/16 flat stainless steel $1.34 6 ships same day
004 999-0665 Nut M8-1.25 flange lock $0.99 2 ships same day
005 N/A Not available Call for price 1 Instrument panel usually ships 3-26 days
006 175-3223 Screw 12-16 x 1/2 pan head plastic $3.96 2 usually ships 1-5 days
007 175-3218 Push switch SPST $24.09 1 usually ships 5-16 days
008 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel $1.01 2 ships same day
009 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
010 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
011 175-2536 Hour meter $78.54 1 usually ships 5-16 days
012 175-2327 Gasket $4.29 1 usually ships 5-16 days
013 999-1430 Screw M3-.5 x 12mm pan head zinc plated $0.99 4 usually ships 1-5 days
014 999-0479 Washer #4 internal star lock zinc plated $0.99 4 ships same day
015 999-0768 Nut M3-.5 hex coarse thread plain finish $1.54 4 ships same day
016 175-2537 Switch plug $7.48 1 usually ships 5-16 days
017 275-0278 Rocker switch DPDT mom/off/on $32.01 1 usually ships 5-16 days
018 175-9379 Key switch $183.70 1 usually ships 5-16 days
019a 175-9380 Key set $30.25 1 (engine powered machines) usually ships 5-16 days
019b 175-3215 Key (sold individually) $13.97 1 (battery powered machines) ships same day
020 175-5969 15amp circuit breaker (Tennant Industrial) $7.52 3 ships same day
021 275-2596 Circuit breaker boot (Tennant Industrial) $18.87 3 ships same day
022 175-9940 Black nylon plug (Tennant Industrial) $4.84 1 usually ships 1-5 days
023 275-0285 Relay 12VDC 40A SPDT N/O $16.17 1 usually ships 5-16 days
024 175-3229 Screw 6mm-1 x 16 pan head $3.30 1 usually ships 1-5 days
025 275-0280 Red panel light 14VDC .6d $14.63 1 usually ships 1-5 days
026a 275-0675 Light oil (gas) $96.47 1 usually ships 1-5 days
026b 275-0676 VR, LAMP, OIL (Tennant Industrial) (OBSOLETE) $34.63 1 usually ships 1-5 days
027 275-0289 TIMER, 12VDC, 10A [25HZ PWM, 70%DUTY] (Tennant Industrial) $338.01 1 usually ships 5-16 days
028 275-5062 Screw M6-1 x 35mm hex head $3.30 1 usually ships 5-16 days
029 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
030 275-0563 CLAMP, CABLE, STL, 0.75D X 0.75W, 1HOLE $3.30 1 usually ships 5-16 days
031 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 1 ships same day
032 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 1 ships same day
