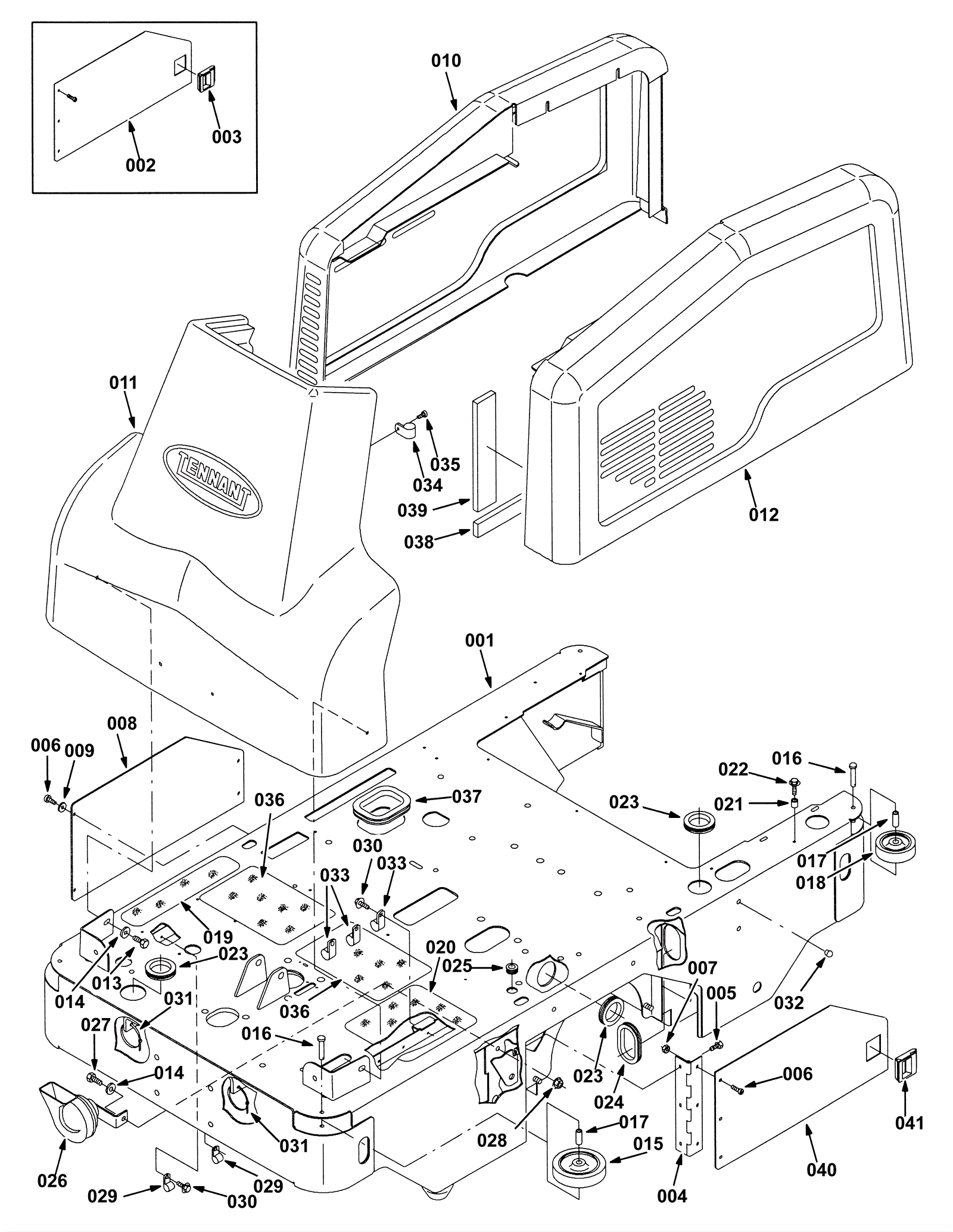

6100 Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 N/A Not available Call for price 1 Sweeper frame weldment usually ships 3-26 days
002 275-0649 DOOR KIT, BRUSH, CI [6100] (Tennant Industrial) $78.68 1 usually ships 1-5 days
003 275-0255 Push latch 1 1/2 x 1.8 $13.09 1 usually ships 10-13 days
004 275-0251 Hinge $28.05 1 usually ships 10-13 days
005 175-5113 Bolt M6 x 12mm hex head $3.30 7 usually ships 1-5 days
006 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel $1.01 3 ships same day
008 275-0652 Front shroud $366.96 1 usually ships 1-5 days
009 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
010 275-0651 SHROUD, SIDE, RH (Tennant Industrial) $630.59 1 usually ships 1-5 days
011 275-0652 Front shroud $366.96 1 usually ships 1-5 days
012 N/A Not available Call for price 1 Lefthand shroud usually ships 3-26 days
013 999-0783 Screw M8-1.25 x 16mm hex head $0.99 4 ships same day
014 999-0024 Washer 5/16 flat stainless steel $1.34 5 ships same day
015 175-3156 Bumper wheel $16.61 2 usually ships 10-13 days
016 275-0041 Clevis pin 5/16 x 1 3/4 inch $4.49 4 usually ships 1-5 days
017 175-4916 Sleeve $5.50 4 usually ships 10-13 days
018 175-2066 3 inch bumper wheel $10.45 2 usually ships 10-13 days
019 175-3307 Non-skid tread $6.49 1 usually ships 10-13 days
020 275-0653 Floor tread $11.22 1 usually ships 1-5 days
021 175-2249 Sleeve $4.22 1 ships same day
022 275-0654 Screw M6 - 1 x 25 (OBSOLETE) $2.64 1 usually ships 1-5 days
023 275-0543 Rubber grommet $6.27 3 usually ships 1-5 days
024 275-8203 Molding $48.40 1 usually ships 1-5 days
025 175-9590 Rubber grommet $5.28 1 usually ships 1-5 days
026 775-0114 12VDC horn $124.73 1 usually ships 1-5 days
027 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 1 ships same day
028 999-0665 Nut M8-1.25 flange lock $0.99 1 ships same day
029 175-3170 P clamp $4.22 2 ships same day
030 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 5 ships same day
031 175-2162 Nylon wire tie $3.30 2 usually ships 10-13 days
032 175-2359 Plug $4.49 6 usually ships 1-5 days
033 175-3179 P clamp $5.28 2 usually ships 10-13 days
034 275-0656 Cable clamp $3.17 1 usually ships 1-5 days
035 175-3223 Screw 12-16 x 1/2 pan head plastic $5.28 1 usually ships 1-5 days
036 275-0240 Non-skid hand floor tread 6 x 9 inch $15.95 2 usually ships 1-5 days
037 275-8203 Molding $48.40 1 usually ships 1-5 days
038 N/A Not available Call for price 1 Foam sound insulation usually ships 3-26 days
039 N/A Not available Call for price 1 (acustic insulation) usually ships 3-26 days
040 275-0616 Left brush door plate $93.28 1 usually ships 10-13 days
041 275-0250 Push latch 1 x 1 1/2 $7.37 1 usually ships 10-13 days
