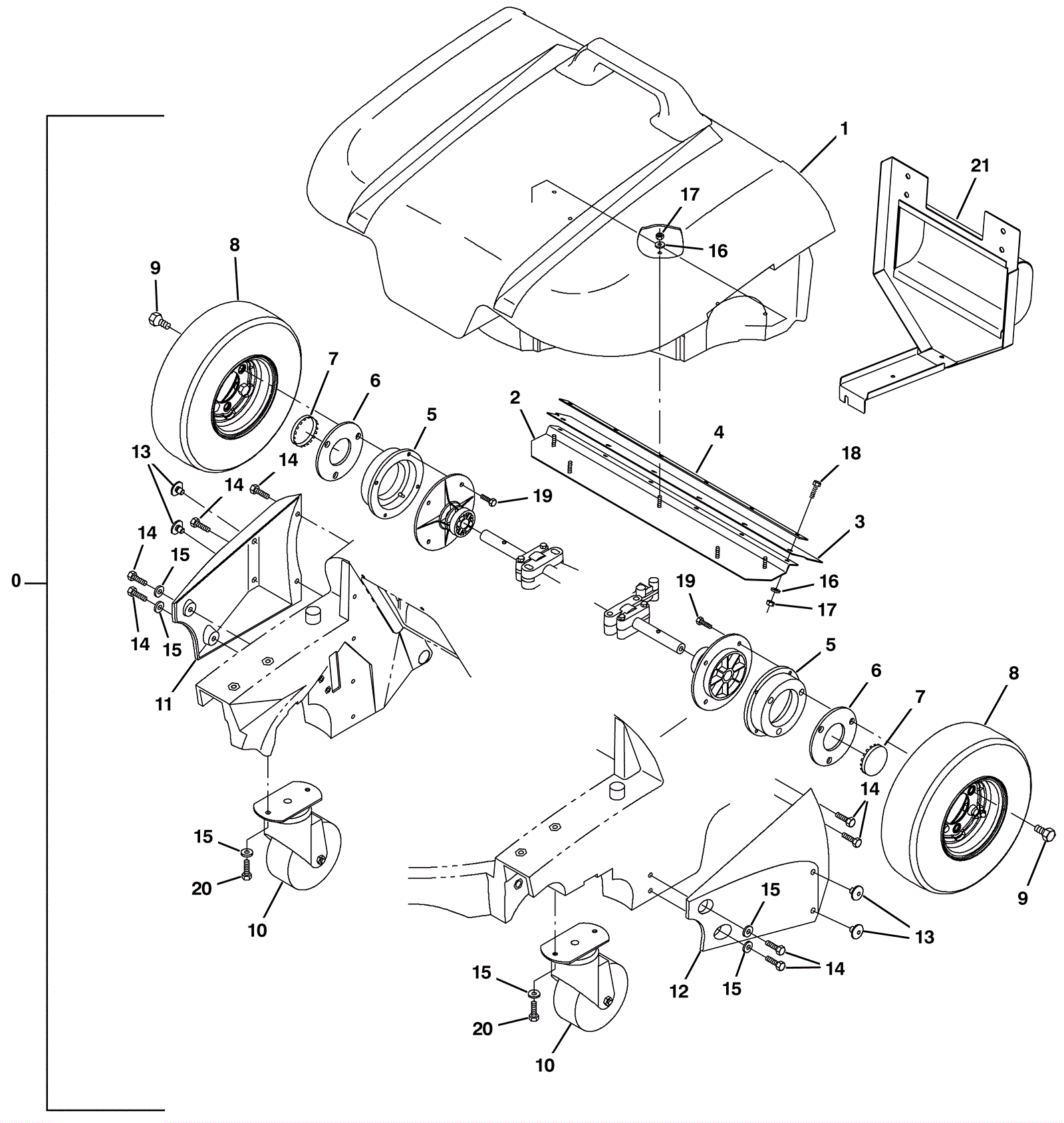

3640 BAT Wide Track Wheels Kit

#PartDescriptionPriceReqNotesAvailability
0 175-9423 Wide track 6080 wheels kit $3,076.70 1 (includes 1-21) usually ships 1-5 days
1 175-9424 Wide track hopper $319.44 1 usually ships 1-5 days
2 175-9425 Wear plate $60.83 1 usually ships 1-5 days
3 175-9191 Hopper skirt $15.73 1 usually ships 10-16 days
4 175-9426 Retainer lip $23.54 1 usually ships 1-5 days
5 175-9427 Wheel adaptor $328.02 2 usually ships 1-5 days
6 175-9428 Hub cap plate $30.58 2 usually ships 1-5 days
7 175-9429 Plug button $13.64 2 usually ships 1-5 days
8 175-2383 Tire and rim assembly (black) $108.57 2 ships same day
9 175-9430 Lug bolt $28.49 6 usually ships 1-5 days
10 275-9839 Swivel caster wheel $219.45 2 usually ships 10-16 days
11 175-9432 Right wheel guard $180.40 1 usually ships 1-5 days
12 175-9433 Left wheel guard $251.57 1 usually ships 1-5 days
13 175-9393 Wear button $18.26 4 usually ships 1-5 days
14 275-9837 Screw 5/16-9 x 1 1/4 hex wood $4.22 8 usually ships 1-5 days
15 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 11 ships same day
17 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 11 ships same day
18 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 6 ships same day
19 175-5113 Bolt M6 x 12mm hex head $3.04 8 usually ships 1-5 days
20 999-0783 Screw M8-1.25 x 16mm hex head $0.99 4 ships same day
21 275-9838 Back plate weldment (Tennant Industrial) $278.22 1 usually ships 1-5 days
