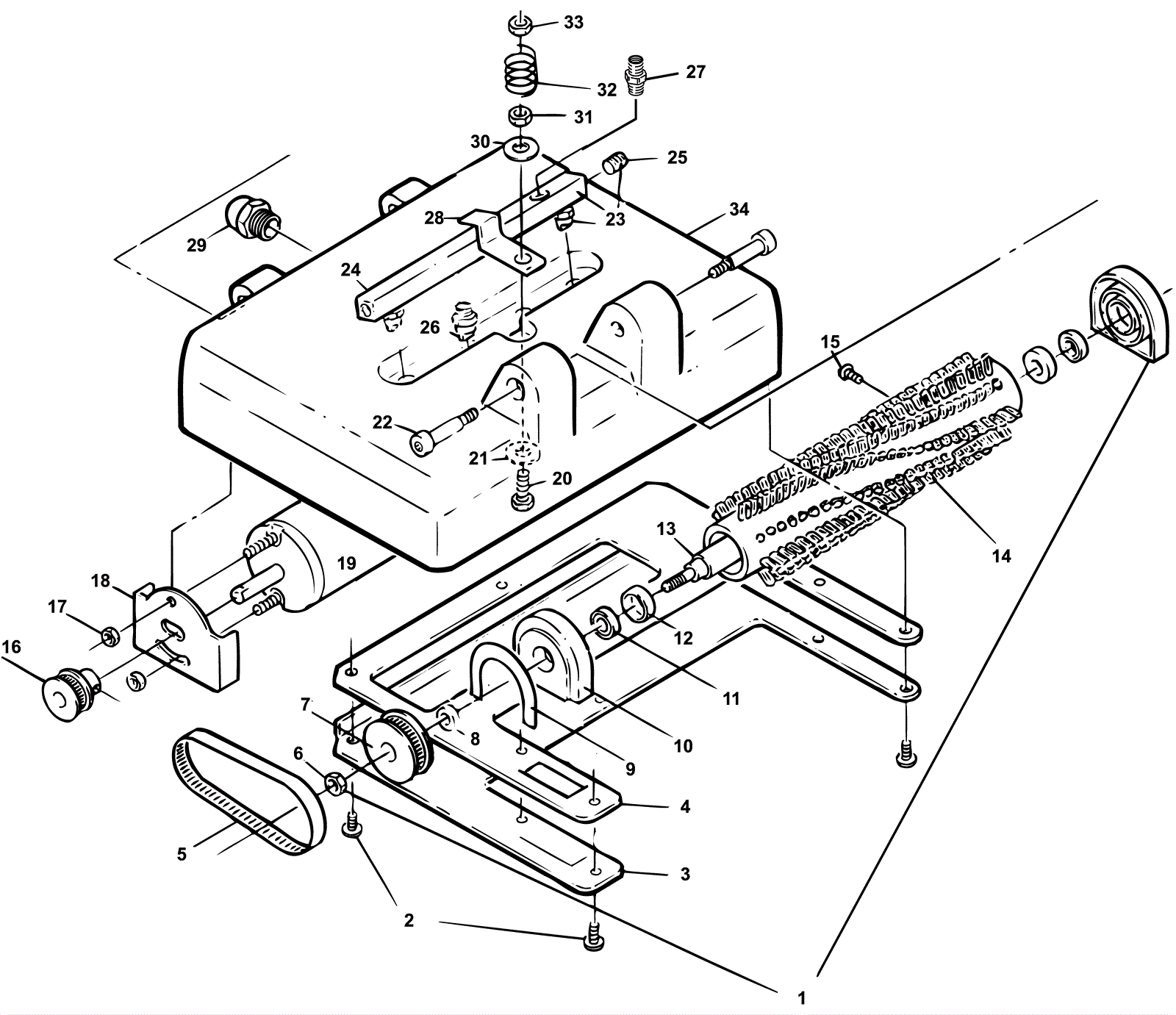

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-1607
|
16 inch brush assembly |
1 |
|
|
2 |
999-0811
|
Screw 10-32 x 3/8 pan head phillips stainless steel |
10 |
|
|
3 |
175-6144
|
16 inch brush base plate |
1 |
|
|
4 |
175-6142
|
16 inch base gasket |
1 |
|
|
5 |
175-6141
|
Brush drive belt |
1 |
|
|
6 |
999-0430
|
Nut 5/16-18 hex jam plain finish |
1 |
|
|
7 |
175-6140
|
Brush pulley |
1 |
|
|
8 |
175-6139
|
Spacer |
1 |
|
|
9 |
175-6143
|
Bearing block gasket |
1 |
|
|
10 |
175-6133
|
Bearing block |
2 |
|
|
11a |
175-0069
|
Brush bearing |
2 |
(OEM) |
|
11b |
991-5125
|
Brush bearing |
2 |
(NON-OEM) |
|
12 |
775-0402
|
Brush bearing seal |
2 |
|
|
13 |
175-6137
|
16 inch brush shaft |
1 |
|
|
14 |
175-6135
|
Scrubbing brush - CYLINDRICAL |
1 |
|
|
15 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
16 |
175-6129
|
Motor pulley (Tennant Industrial) |
1 |
|
|
17 |
999-0239
|
Nut 10-32 k-lock zinc plated |
2 |
|
|
18 |
175-6130
|
Motor bracket |
1 |
|
|
19 |
175-6131
|
120V brush motor |
1 |
|
|
20 |
999-1006
|
Screw 3/8-16 x 1 3/4 hex head stainless steel |
1 |
|
|
21 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
22 |
175-6156
|
Screw 3/8 x 3/4 shoulder |
2 |
|
|
23 |
175-1609
|
16 inch spraybar assembly |
1 |
(includes 24-27) |
|
24 |
175-6039
|
16 inch spray bar manifold |
1 |
|
|
25 |
175-6121
|
Brass plug |
3 |
|
|
26 |
175-1608
|
Brass nozzle without screen |
4 |
|
|
27 |
175-6042
|
Adapter |
1 |
|
|
28 |
175-6115
|
Spray bar clamp |
1 |
|
|
29a |
175-6065
|
Interconnect cord |
1 |
|
|
29b |
175-6124
|
Cord grip |
1 |
|
|
30 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
31 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
1 |
|
|
32 |
175-1611
|
Spring |
1 |
|
|
33 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
1 |
|
|
34 |
275-6110
|
16 inch (400mm) brush housing (gray) |
1 |
|
|
