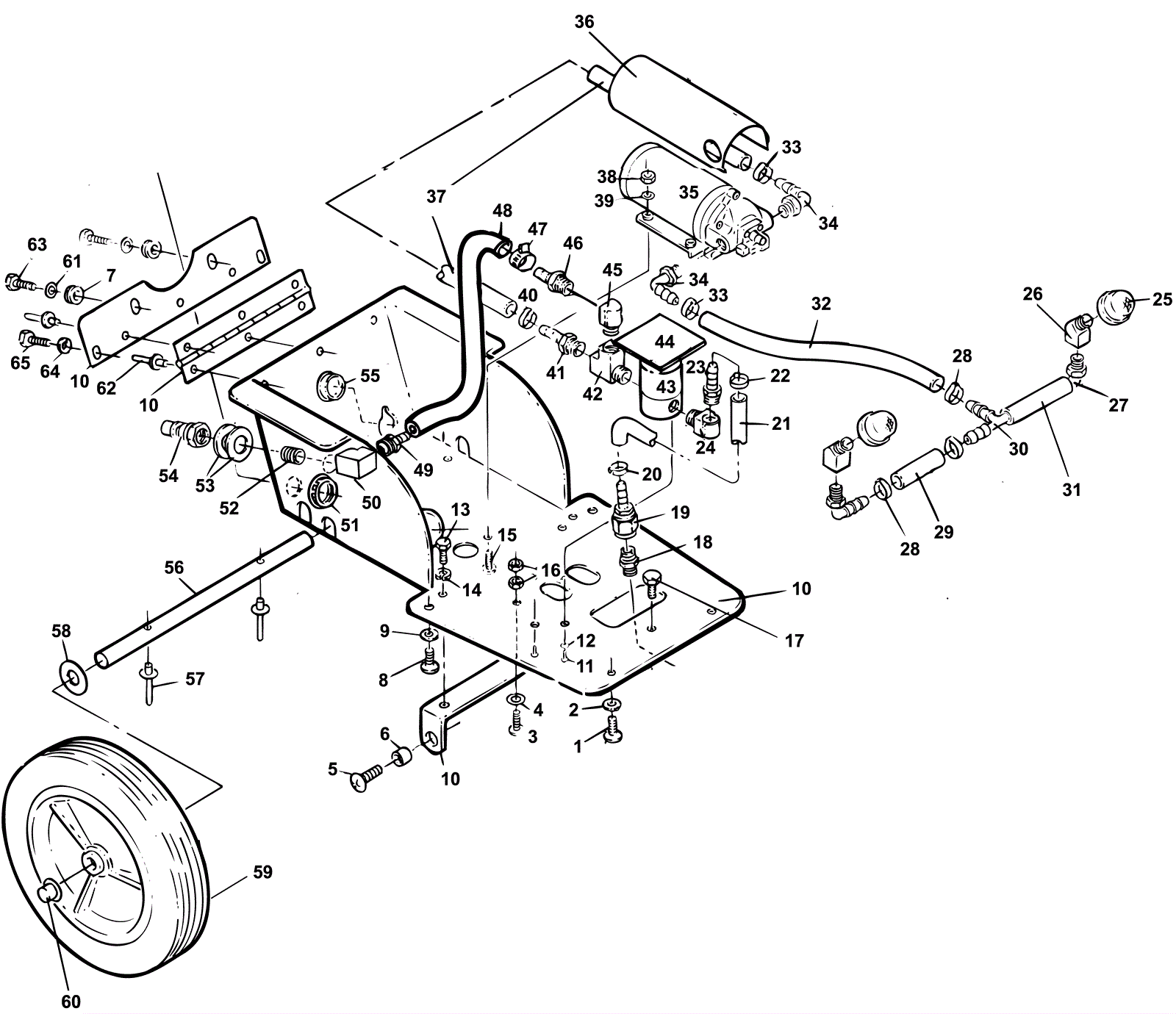

Chassis Assembly

#PartDescription ReqNotesAvailability
1 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
2 999-1024 Washer 1/4 external tooth lock stainless steel 8
3 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated 1
4 999-0311 Washer #10 external star lock zinc plated 1
5 175-6187 Screw 3/8-16 x 3/4 inch truss head phillips 2
6 175-6154 Spacer 2
7 175-1625 Rubber grommet 2
8 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
9 999-1024 Washer 1/4 external tooth lock stainless steel 2
10 275-4907 Chassis (black) 1
11 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 2
12 999-1083 Washer #8 internal star lock stainless steel 1
13 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
14 999-0632 Washer 1/4 split lock stainless steel 2
15 999-0009 Screw 10-24 x 1 round head slotted zinc plated 2
16 999-0356 Nut 10-24 lock stainless steel 2
17 999-0590 Screw 3/8-16 x 1/2 socket head shoulder 1
18 175-6042 Adapter 1
19 175-6043 Hosebarb 1
20 175-6170 Hose clamp 1
21a 175-4876 PVC hose 1/4 x 12 inch (gray) 1
21b 175-7332 Hose guard 1
22 175-6170 Hose clamp 1
23 175-6024 Hosebarb 1
24 175-2614 90 degree elbow fitting 1
25 175-6079 Mesh filter screen 2
26 175-6031 Straight jet fitting 2
27 175-2844 90 degree elbow fitting 2
28 175-6032 Hose clamp 5
29 175-7334 Hose 3/8 x 4 inch 1
30 175-1615 Tee fitting 1
31 175-8865 Hose 3/4 x 4 inch 1
32 175-6020 Braided hose 3/8 x 45 inch (gray) 1
33 175-6081 Hose clamp 2
34 175-6019 90 degree barbed elbow 2
35a 175-6011 120V 100 PSI pump 1
35b 991-8225 Shurflo pump 1
36 175-1616 Pump shield 1
37a 275-4585 11 inch PVC hose (gray) 1
38 999-0356 Nut 10-24 lock stainless steel 2
39 999-0006 Washer 3/16 flat zinc plated 2
40 175-6032 Hose clamp 6
41 175-2613 Straight brass fitting 2
42 175-6029 Straight tee 1
43a 175-6025 Solution solenoid valve 1 (if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve)
43b 991-8598 Replacement plunger with spring for solenoid valve 1
44 175-7336 Solenoid shield 1
45 175-2614 90 degree elbow fitting 1
46 175-6030 Straight hosebarb 2
47 175-6081 Hose clamp 2
48a 175-6035 26 inch rubber hose (red) 1
48b 175-1618 Hose guard 1/2 x 26 inch 1
49 175-6030 Straight hosebarb 2
50 175-6248 90 degree elbow 1
51 175-3554 Wiring harness 1
52 175-6244 Nipple 1
53 999-0114 Washer 1/2 SAE flat 2
54 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
55 175-2755 Snap bushing 1
56 275-4907 Chassis (black) 1
57 175-1620 Pop rivet (OBSOLETE) 2
58 999-0187 Washer 1/2 flat plain finish 2
59 175-1621 10 inch wheel (gray) 2
60 175-6097 Hub cap 2
61 999-0016 Washer 1/4 flat plain finish 2
62 175-1623 Pop rivet 6
63 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
64 999-0632 Washer 1/4 split lock stainless steel 2
65 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
