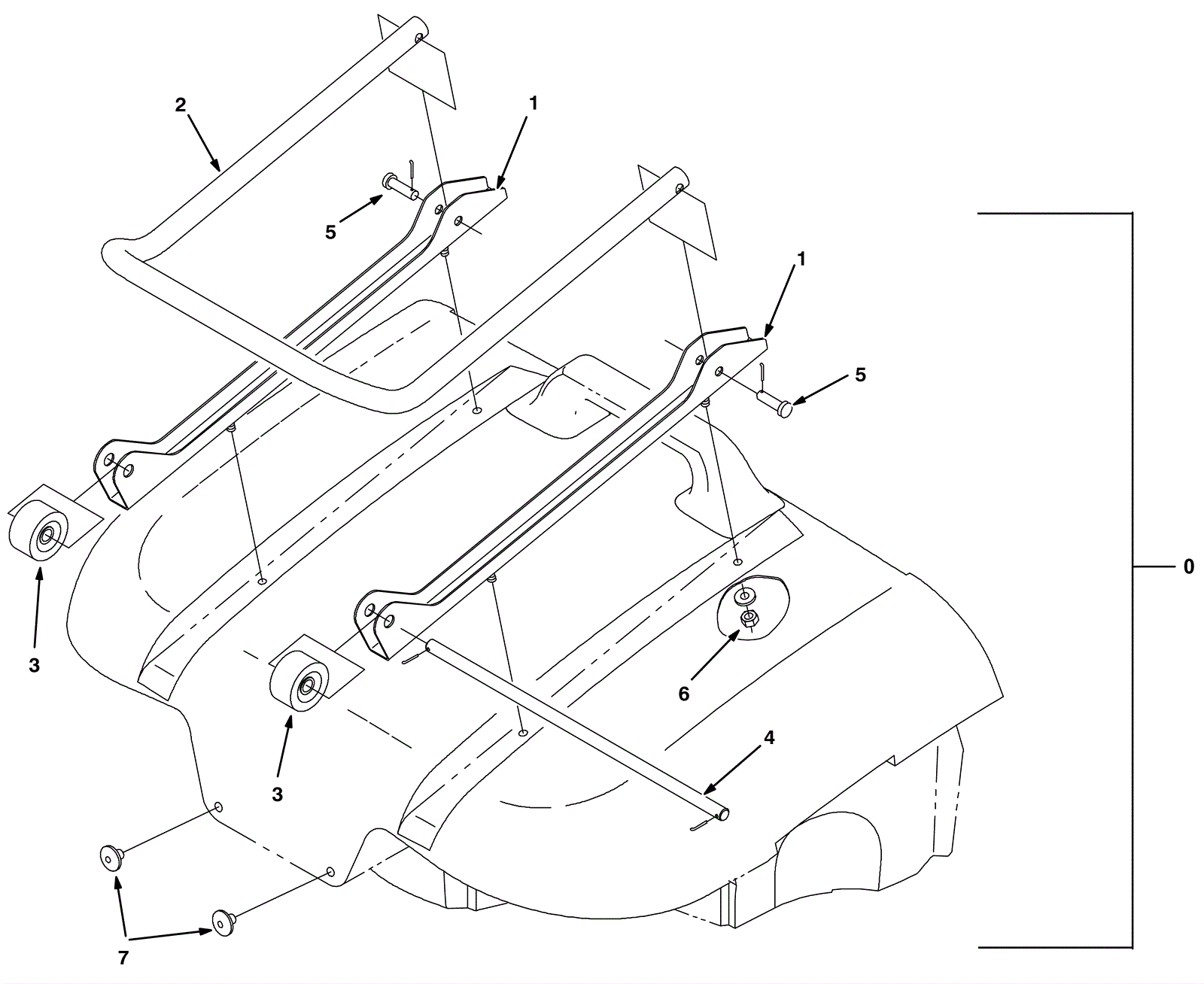

3640 BAT Hopper Dump Assist Kit

#PartDescriptionPriceReqNotesAvailability
0 175-9389 Hopper dump assist kit $352.44 1 (includes 1-7) usually ships 1-5 days
1 175-9390 Hopper assist bracket $48.07 2 usually ships 1-5 days
2 175-9391 Hopper assist handle $66.11 1 usually ships 1-5 days
3a 175-2245 Wheel $9.46 2 ships same day
3b 991-3044 2 inch wheel $7.17 2 (NON-OEM) usually ships 5-16 days
4 175-9392 Hopper assist shaft $23.65 1 usually ships 1-5 days
5 175-0744 Clevis pin .37D x 1 5/16 $3.08 2 usually ships 5-16 days
6 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 usually ships 11-24 days
7 175-9393 Wear button $16.61 2 usually ships 1-5 days
