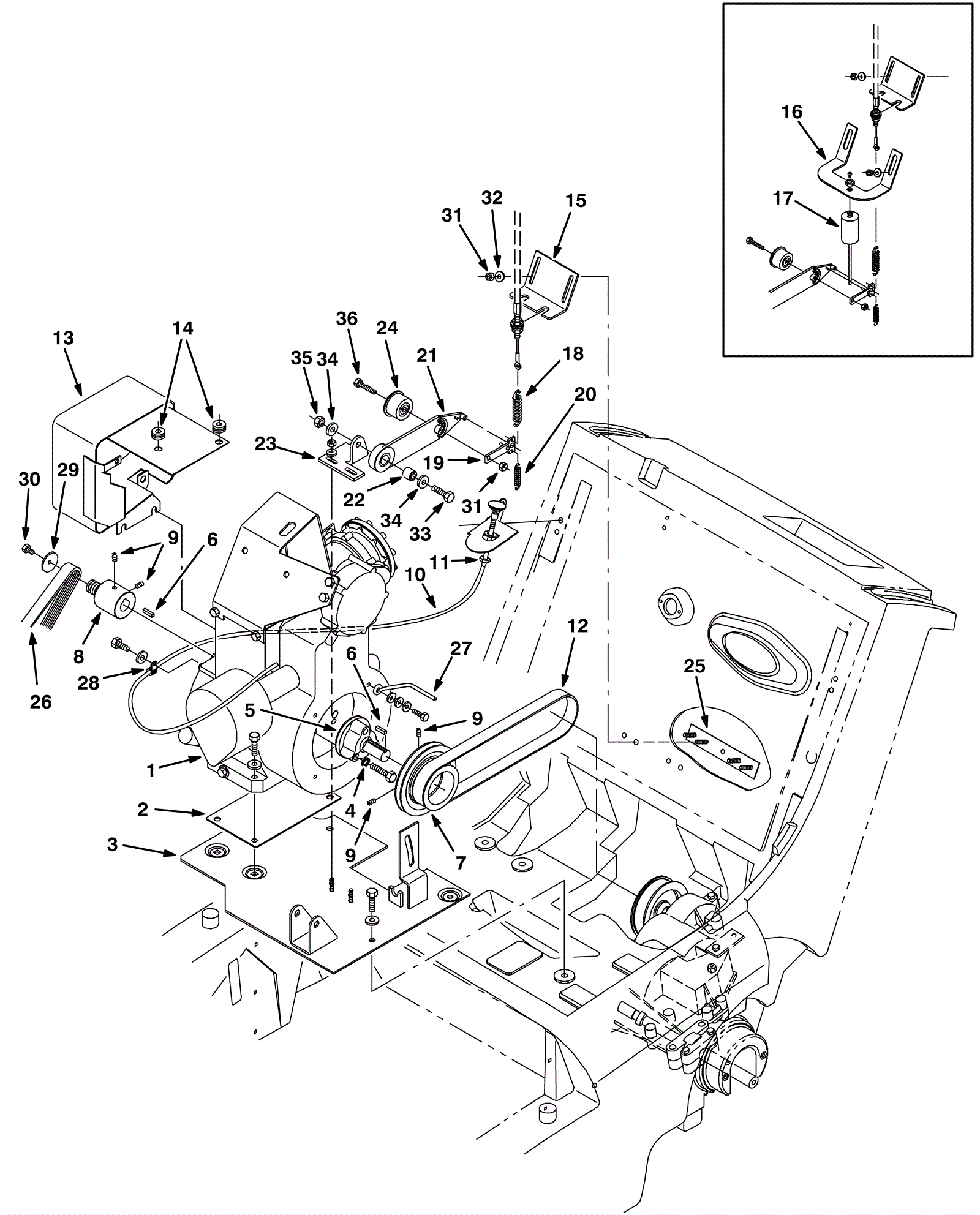

3640 LPG Engine Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-9818 LPG engine assembly (OBSOLETE) $1,410.20 1 usually ships 1-5 days
2 275-9806 Engine mounting gasket $5.50 1 usually ships 1-5 days
3 275-9807 Floor plate weldment $162.14 1 usually ships 10-16 days
4 999-0406 Washer 5/16 internal star lock zinc plated $0.99 3 ships same day
5 275-9808 Shaft $73.59 1 usually ships 1-5 days
6 175-9352 Square key $4.09 2 usually ships 1-5 days
7 275-9809 Sheave $123.09 1 usually ships 1-5 days
8 175-9338 SHEAVE, PYV, 08GRV, 00.8D 0.75B (Tennant Industrial) $96.35 1 usually ships 1-5 days
9 175-9339 Screw M6-1 x 8mm set socket $4.88 4 usually ships 10-16 days
10 275-9810 Choke cable $73.81 1 usually ships 1-5 days
11 275-9811 Nut $5.02 2 usually ships 1-5 days
12 275-2305 Belt $25.30 1 usually ships 10-16 days
13 275-9812 Heat shield weldment $163.79 1 usually ships 1-5 days
14 275-9813 Rubber grommet $3.04 2 usually ships 1-5 days
15 175-9342 Clutch cable bracket $13.31 1 usually ships 1-5 days
16 N/A Not available Call for price 1 (Mounting bracket) usually ships 3-26 days
17 N/A Not available Call for price 1 Push dampener usually ships 3-26 days
18 175-7129 Tension spring $7.70 1 ships same day
19 175-9349 Clutch bar $14.41 1 usually ships 1-5 days
20 175-9348 SPRING, EXTN, 0.36OD 0.02WIR 01.5L (Tennant Industrial) $14.50 1 usually ships 10-16 days
21 175-9345 Clutch pivot arm $69.52 1 usually ships 1-5 days
22 175-9347 Sleeve $5.50 1 usually ships 10-16 days
23 175-9346 Clutch pivot bracket $14.30 1 usually ships 1-5 days
24 175-9350 Idler pulley $35.97 1 usually ships 10-16 days
25 175-9351 Clutch cable spring $17.27 1 usually ships 1-5 days
26a 275-5799 Belt kit - 33 1/2 inch grooved $45.21 1 (includes 26b) usually ships 10-16 days
26b 275-9814 Ribbed belt $42.46 1 usually ships 10-16 days
27 275-9815 Belt brake $43.34 1 usually ships 1-5 days
28 175-2152 P clamp $4.09 1 usually ships 1-5 days
29 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 1 ships same day
30 175-9354 Screw M6 hex $3.04 1 usually ships 10-16 days
31 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 3 ships same day
32 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
33 175-0634 Bolt M8-1 1/4 x 35mm hex head $4.09 1 usually ships 1-5 days
34 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
35 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 usually ships 12-18 days
36 175-0574 Bolt 6mm-1 x 35 hex head $4.09 1 usually ships 10-16 days
