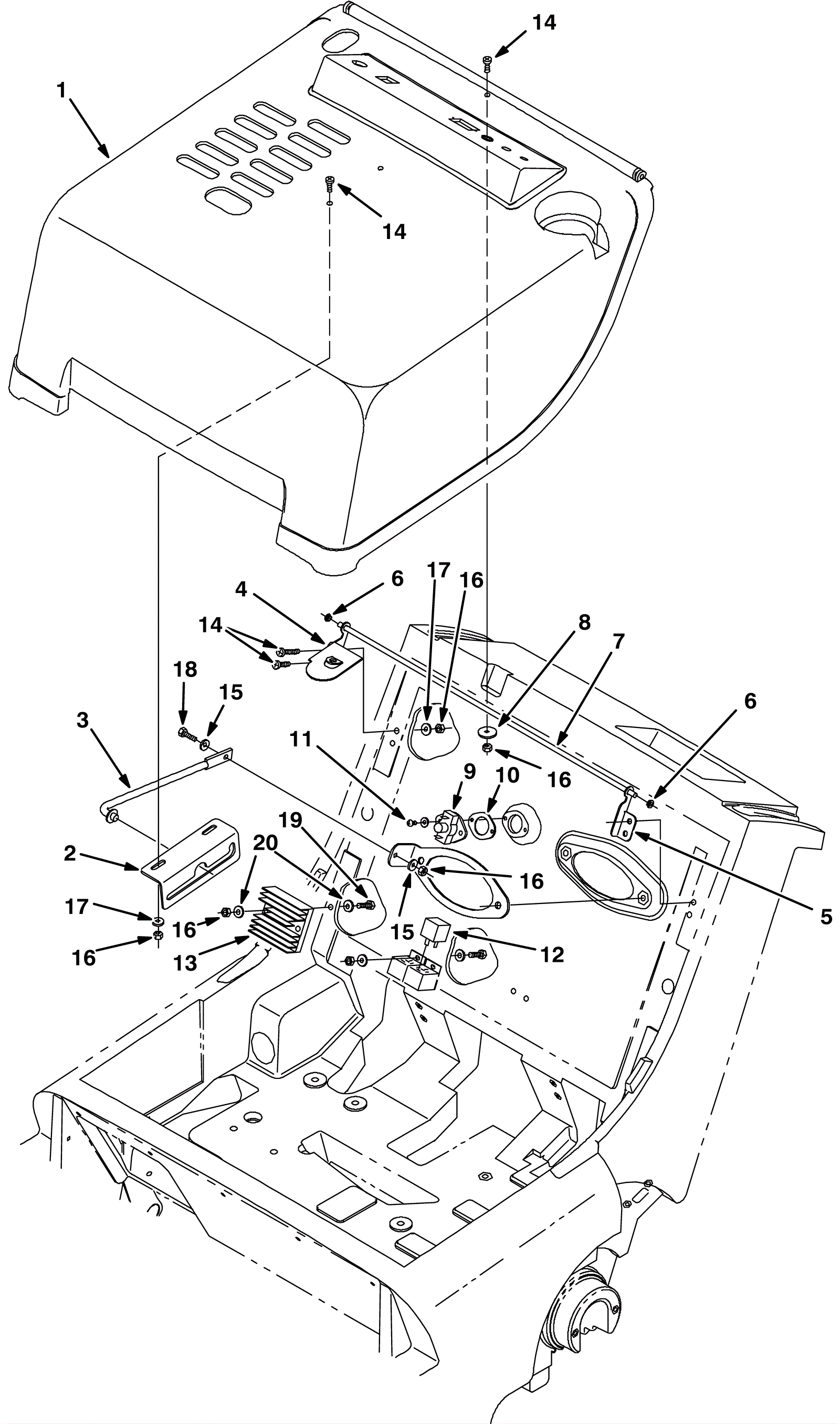

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
275-9816
|
Gas engine cover with label (OBSOLETE) |
$286.00
|
1 |
|
usually ships 1-5 days |
2 |
175-9357
|
BRACKET, ROD, PROPEL (Tennant Industrial) |
$26.01
|
1 |
|
usually ships 1-5 days |
3 |
175-9358
|
Seat rod |
$69.19
|
1 |
|
usually ships 13-17 days |
4 |
275-9817
|
Right hand engine cover hinge pivot |
$31.68
|
1 |
|
usually ships 13-17 days |
5 |
175-9360
|
Left hand engine cover hinge pivot |
$23.54
|
1 |
|
ships same day |
6 |
175-9361
|
Snap in bearing |
$6.27
|
2 |
|
usually ships 13-17 days |
7 |
175-9362
|
Hinge pin rod nylon |
$14.19
|
1 |
|
usually ships 13-17 days |
8 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
$0.99
|
1 |
|
ships same day |
9 |
275-8509
|
Thermostat |
$45.98
|
1 |
|
usually ships 1-5 days |
10 |
175-9365
|
Fire switch gasket |
$13.31
|
1 |
|
usually ships 13-17 days |
11 |
175-9366
|
Screw 8-10 x 1/2 pan head plastic |
$5.28
|
2 |
|
ships same day |
12 |
275-0285
|
Relay 12VDC 40A SPDT N/O |
$17.71
|
1 |
|
usually ships 13-17 days |
13 |
275-1161
|
Regulator |
$293.81
|
1 |
|
usually ships 1-5 days |
14 |
999-1168
|
Screw M6-1 x 20mm pan head phillips stainless steel |
$1.01
|
7 |
|
ships same day |
15 |
999-0016
|
Washer 1/4 flat plain finish |
$0.99
|
6 |
|
ships same day |
16 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
$1.32
|
10 |
|
ships same day |
17 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
18 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
$0.99
|
1 |
|
ships same day |
19 |
175-6758
|
Screw M6-1 x 30mm hex head |
$4.36
|
2 |
|
ships same day |
20 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
$0.99
|
4 |
|
ships same day |
