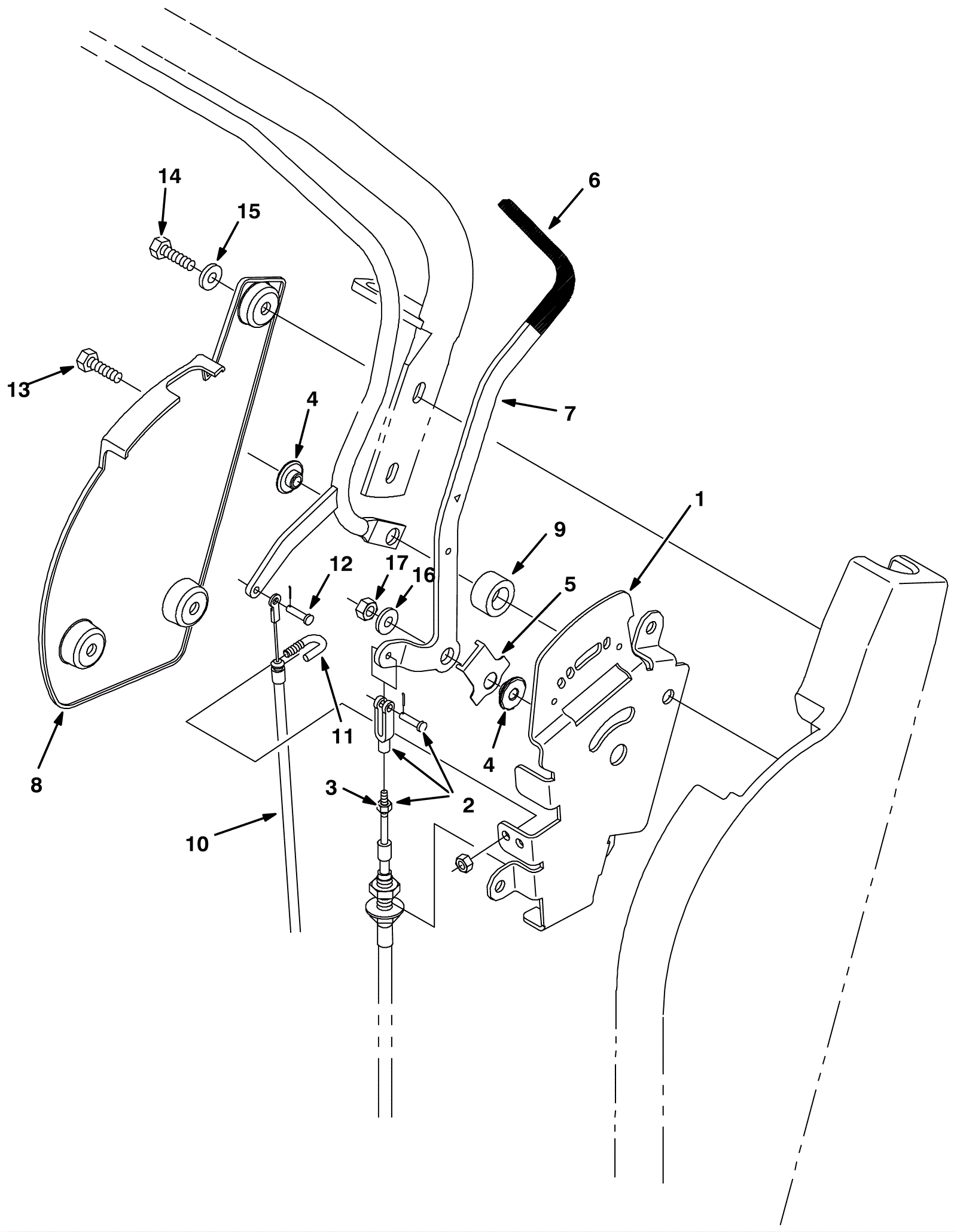

3640 Clutch and Shift Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-9331 Left hand pivot plate $74.25 1 usually ships 1-5 days
2 175-9332 Yoke assembly 10-32 $22.55 1 (includes item 3) usually ships 1-5 days
3 999-0460 Nut 10-32 hex $0.99 1 ships same day
4 675-9890 Flanged bushing $6.27 2 ships same day
5 175-7115 Detent spring $13.97 1 usually ships 1-5 days
6 175-9327 Vinyl grip $10.56 1 usually ships 10-13 days
7 175-9333 Shift handle $59.51 1 usually ships 1-5 days
8 175-9334 Left hand access plate $20.35 1 usually ships 1-5 days
9 175-9335 Pivot spacer $4.22 1 usually ships 1-5 days
10 175-7116 Pull cable $58.52 1 usually ships 10-13 days
11 175-5998 Bolt $5.50 1 usually ships 1-5 days
12 175-7117 Clevis pin $4.36 1 usually ships 1-5 days
13 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
14 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 3 ships same day
15 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
16 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
17 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
