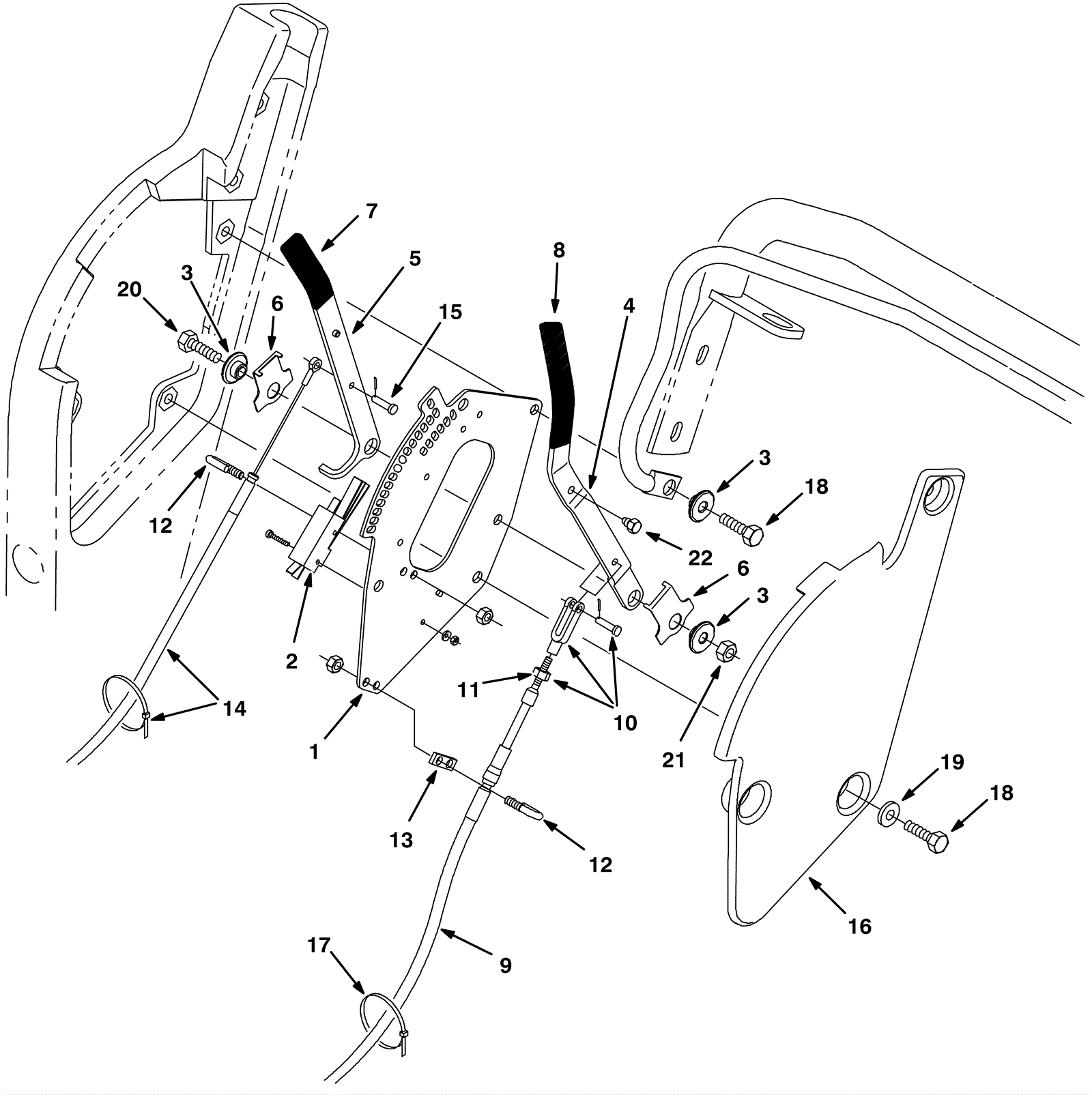

3640 Brush Lift Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-9323 Right hand mounting plate $82.17 1 usually ships 1-5 days
2a 175-0337 Snap switch $38.06 1 usually ships 10-13 days
3 675-9890 Flanged bushing $6.27 3 ships same day
4 175-9324 HANDLE, LIFT, BRUSH, MAIN (Tennant Industrial) $121.36 1 usually ships 1-5 days
5 175-9325 HANDLE, LIFT, BRUSH, SIDE (Tennant Industrial) $95.35 1 usually ships 1-5 days
6 175-7115 Detent spring $13.97 2 usually ships 1-5 days
7 175-9326 Vinyl grip $6.49 1 usually ships 10-13 days
8 175-9327 Vinyl grip $10.56 1 usually ships 10-13 days
9 175-9328 Main brush cable assembly $160.71 1 usually ships 1-5 days
10 175-3424 Clevis 10-32 adjustment $16.06 1 (includes 11) usually ships 10-13 days
11 999-0460 Nut 10-32 hex $0.99 1 ships same day
12 175-5998 Bolt $5.50 2 usually ships 1-5 days
13 175-5999 Cable support $7.04 1 usually ships 10-13 days
14 175-9329 Sidebrush cable replacement kit $72.27 1 usually ships 10-13 days
15 175-7117 Clevis pin $4.36 1 usually ships 1-5 days
16 175-9330 Right hand access plate $23.21 1 usually ships 1-5 days
17 175-2162 Nylon wire tie $3.30 2 usually ships 10-13 days
18 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 4 ships same day
19 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
20 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 1 ships same day
21 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
22 175-9459 Screw 250-20 $21.23 1 usually ships 1-5 days
