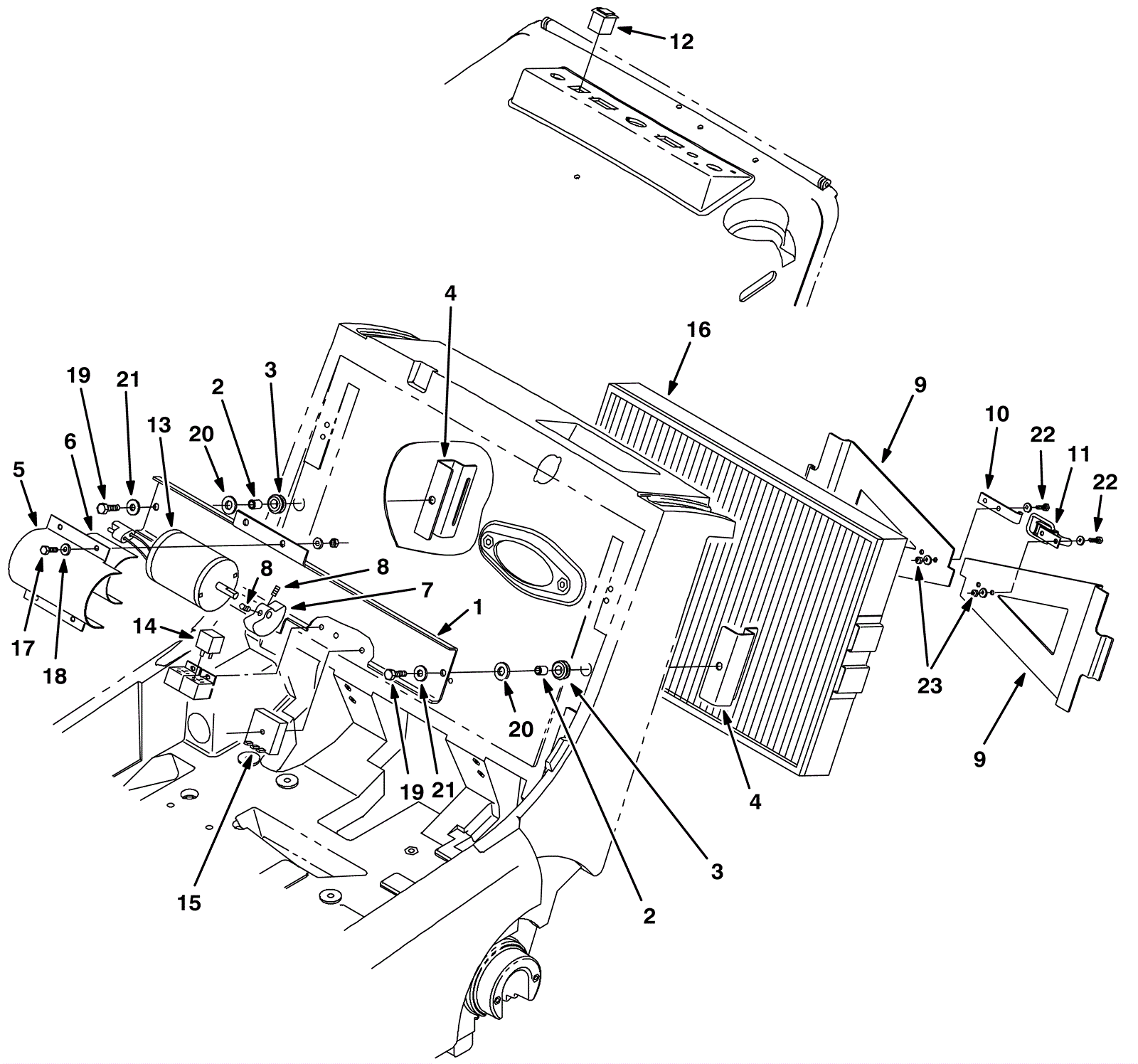

3640 Panel Filter Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-9309 Motor shaker bar $59.07 1 usually ships 1-5 days
2 175-3398 Sleeve $7.48 2 usually ships 10-16 days
3 175-9310 Rubber grommet $4.09 2 usually ships 10-16 days
4 175-9311 BRACKET, SHAKR $18.15 2 usually ships 1-5 days
5 175-9314 Shaker motor strap $21.23 1 usually ships 1-5 days
6 175-9315 Strip (rubber) $5.28 1 usually ships 1-5 days
7a 275-0773 Eccentric weight (OBSOLETE) Call for price 1 (gas models) usually ships 1-5 days
7b 275-4999 Eccentric weight (Tennant Industrial) $105.85 1 (battery/electric model) usually ships 1-5 days
8 175-9317 Screw #10 set $4.09 2 usually ships 10-16 days
9 175-9318 Retainer bracket $68.75 2 usually ships 10-16 days
10 175-9319 Latch strike $17.27 1 usually ships 10-16 days
11 175-8927 Catch $6.71 1 usually ships 10-16 days
12 175-9320 Rocker switch $38.06 1 usually ships 10-16 days
13a 175-9398 Shaker motor 24 volt $153.12 1 (gas models) usually ships 1-5 days
13b 275-9010 24V electric motor $206.47 1 (battery/electric model) usually ships 1-5 days
14 175-8635 40amp relay $29.26 1 ships same day
15 175-9322 Timer 24 volt $94.71 1 usually ships 10-16 days
16 175-9198 Panel filter package , 94 pleats $162.03 1 usually ships 10-16 days
17 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
18 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
19 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
20 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
21 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
22 175-0852 Bolt 5mm-.8 x 12 hex head $4.88 4 usually ships 10-16 days
23 175-2894 Nut M5-.8 hex nylon locking $3.04 4 usually ships 10-16 days
