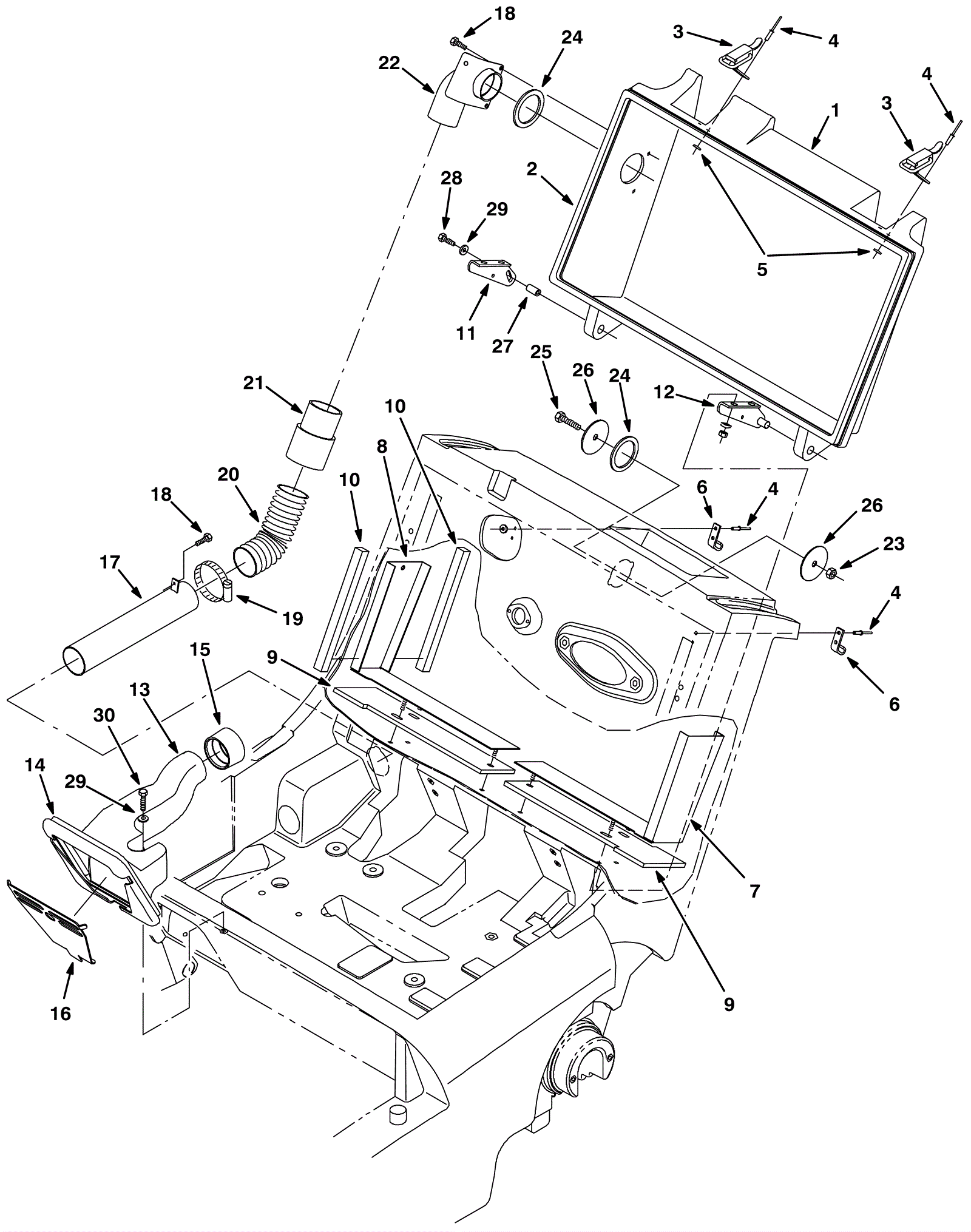

3640 BAT Vacuum Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-9293 DOOR KIT, CLEAN-OUT, FILTERBOX, REPLMT (Tennant Industrial) $340.18 1 usually ships 1-5 days
2 175-9189 Seal (Tennant Industrial) $27.39 1 usually ships 5-16 days
3 175-8927 Catch $6.49 2 usually ships 5-16 days
4 175-5957 Pop rivet 3/16 x 49/69 x 38dhd $3.08 8 usually ships 1-5 days
5 175-5988 Washer 13/64 x 1/2 x 5/8 $3.19 8 usually ships 1-5 days
6 175-9294 Latch clip $9.57 2 usually ships 1-5 days
7 175-9295 Plate (OBSOLETE) $42.46 1 usually ships 1-5 days
8 175-9296 Right hand sealing bracket (OBSOLETE) $39.60 1 usually ships 1-5 days
9 175-9297 Cover seal $7.81 2 usually ships 5-16 days
10 175-9298 Foam seal $42.02 4 usually ships 5-16 days
11 175-9299 BRACKET, PIVOT, RH (Tennant Industrial) $22.88 1 usually ships 1-5 days
12 175-9300 Left hand pivot bracket $26.51 1 usually ships 1-5 days
13 175-9301 Vacuum hi flow housing $131.78 1 usually ships 5-16 days
14 175-9193 Chamber seal $18.15 1 usually ships 5-16 days
15 175-9302 Vacuum tube seal $20.57 1 usually ships 5-16 days
16 175-9303 Vacuum inlet screen $28.71 1 usually ships 5-16 days
17 175-9304 TUBE WLDT, VACUUM, 1.88D 9.8L (Tennant Industrial) $74.32 1 usually ships 1-5 days
18 175-5924 Screw 10 x 5/8 hex $3.19 4 usually ships 5-16 days
19 997-2003 Hose clamp $2.66 1 ships same day
20 175-9305 Flex hose $11.11 1 usually ships 5-16 days
21 175-9306 Hose cuff $29.59 1 usually ships 5-16 days
22 175-9307 Elbow hose coupling $110.11 1 usually ships 1-5 days
23 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
24 175-9192 Cuff gasket $6.27 2 usually ships 5-16 days
25 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 1 ships same day
26 275-9836 Flat washer (Tennant Industrial) $9.85 2 usually ships 1-5 days
27 175-9308 PIN, TAPPED, 0.44D 0.81L (Tennant Industrial) $35.40 1 usually ships 1-5 days
28 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 1 ships same day
29 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
30 175-6758 Screw M6-1 x 30mm hex head $3.19 1 usually ships 5-16 days
