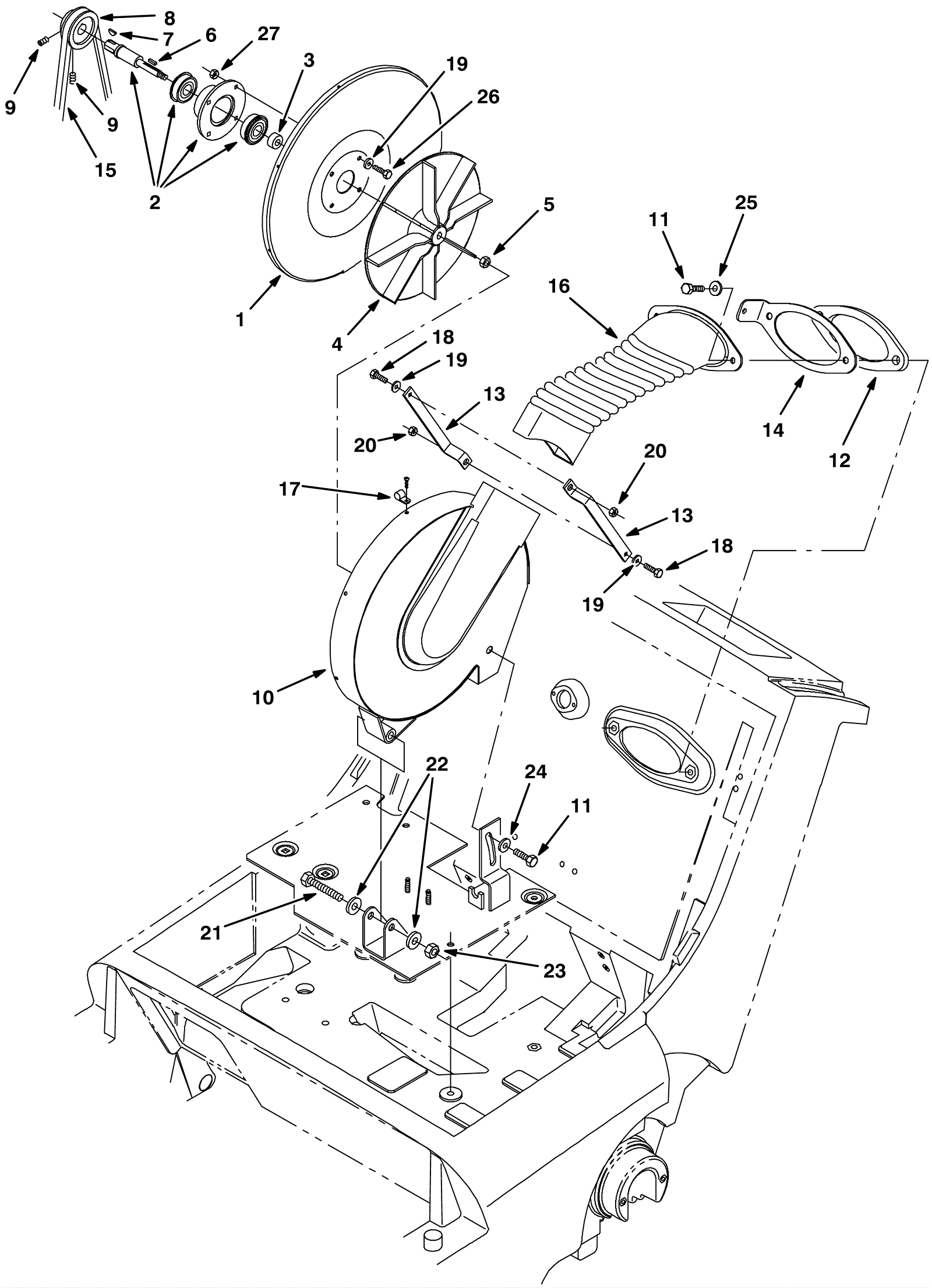

3640 Vacuum Fan Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-9283 Vacuum fan backing plate $59.29 1 usually ships 1-5 days
2 175-9157 Shaft $290.51 1 usually ships 10-13 days
3 175-9284 TUBE, 0.39ID 0.81OD 00.4L, STL (Tennant Industrial) $13.84 1 usually ships 1-5 days
4 175-9285 Impeller 9-39/64 x 3/8 $85.14 1 usually ships 10-13 days
5 175-9286 Nut 5/16 x 24 hex flex lock thin plated $5.28 1 usually ships 1-5 days
6 175-9158 Square key 1/8 x 1/8 inch $4.49 1 usually ships 1-5 days
7 175-9159 Woodruff key $3.30 1 usually ships 1-5 days
8 275-9801 Sheave (Tennant Industrial) $124.52 1 usually ships 1-5 days
9 175-4926 Screw 5/16-18 x 3/8 set nylon lock $5.28 2 ships same day
10 175-9288 Vacuum fan housing $421.08 1 usually ships 1-5 days
11 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 3 ships same day
12 175-9194 Vacuum fan gasket $13.97 1 usually ships 1-5 days
13 275-9802 Mounting bracket $24.86 2 usually ships 1-5 days
14 175-9289 Vacuum fan plate rod $21.56 1 usually ships 1-5 days
15 275-9803 V-belt $19.36 1 usually ships 1-5 days
16 275-9804 Vacuum duct $67.98 1 usually ships 1-5 days
17 175-9292 Poly cable clamp $4.36 1 usually ships 1-5 days
18 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 2 ships same day
19 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
20 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 2 ships same day
21 999-9081 Screw M10-1.5 x 65mm hex head stainless steel $2.99 1 ships same day
22 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
23 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 1 usually ships 1-5 days
24 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
25 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
26 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
27 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
