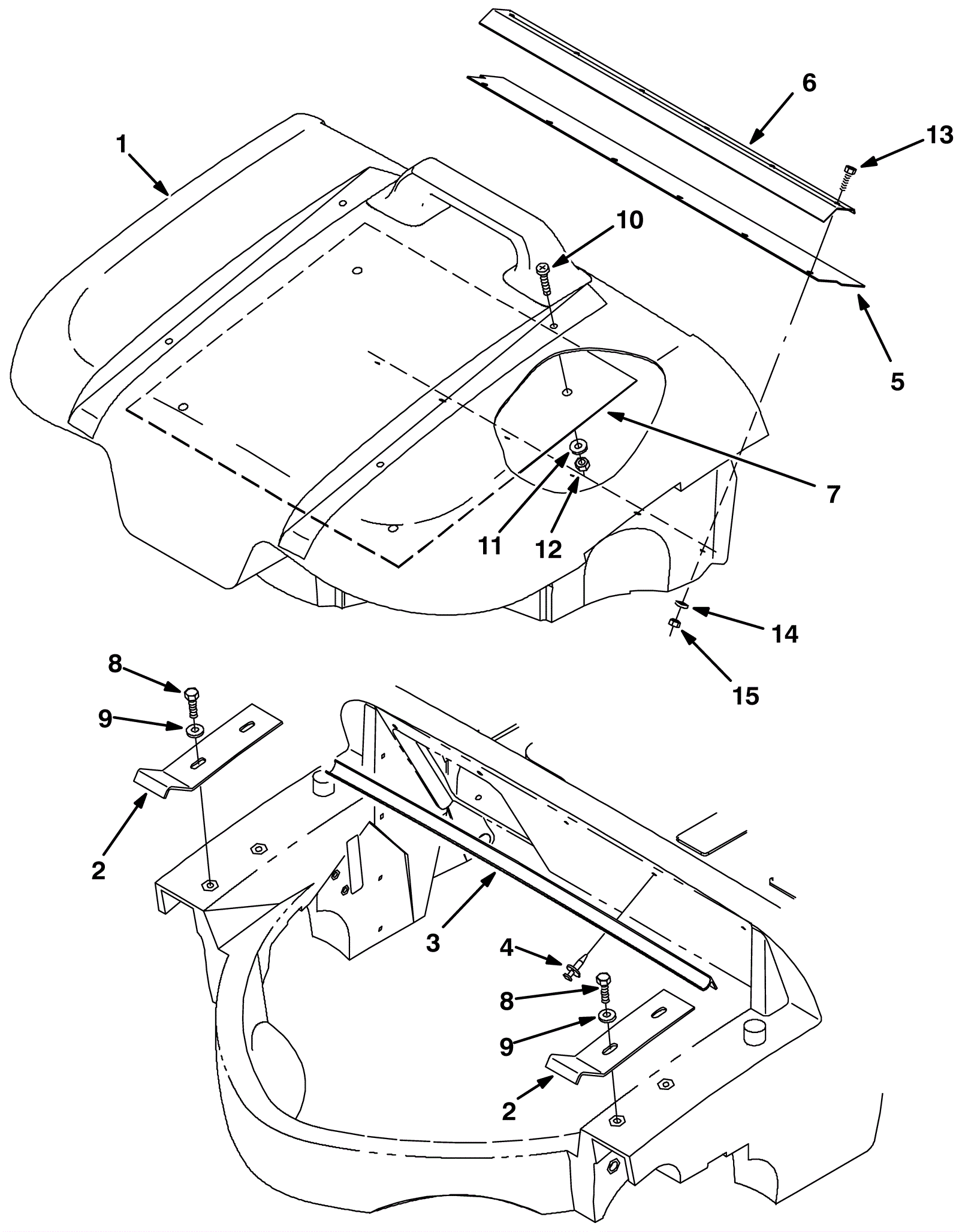

3640 BAT Hopper Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-9280 Hopper $430.87 1 usually ships 1-5 days
2 175-9281 Support bracket $20.35 2 usually ships 1-5 days
3 175-9190 Seal $23.10 1 usually ships 5-16 days
4 175-5971 Plastic rivet $3.08 5 ships same day
5 175-9191 Hopper skirt $14.30 1 usually ships 5-16 days
6 175-9197 Lip angle $30.03 1 usually ships 5-16 days
7 175-9282 Firewall plate $68.09 1 usually ships 1-5 days
8 999-0783 Screw M8-1.25 x 16mm hex head $0.99 4 ships same day
9 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
10 175-3202 Screw M8-1.25 x 20mm $3.30 4 usually ships 5-16 days
11 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
12 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 usually ships 11-24 days
13 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 6 ships same day
14 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
15 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 6 ships same day
