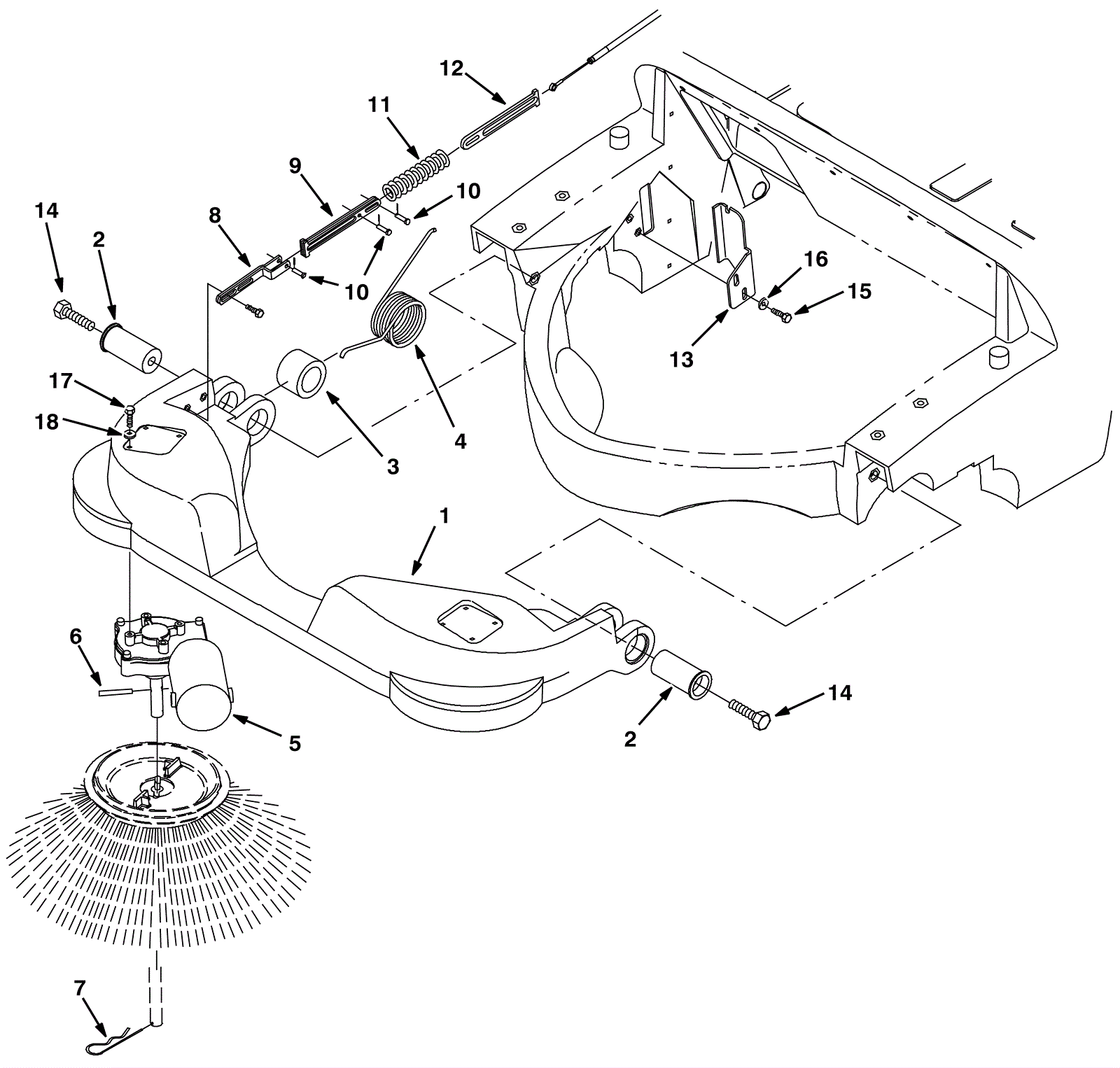

3640 Side Brush Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-9264 Side brush housing $249.15 1 usually ships 1-5 days
2 175-9265 Pivot bushing $37.18 2 usually ships 1-5 days
3 175-9266 Sleeve 1-3/4 x 2-7/64 x 1-1/2 plated $16.28 1 usually ships 1-5 days
4 175-9267 SPRING, TORS, 2.6 ID .17WIR 07.6COIL (Tennant Industrial) $91.85 1 usually ships 1-5 days
5a 275-4998 24V electric motor $755.04 1 (for battery/electric models) (includes 5c-5f) usually ships 10-16 days
5b 275-9800 12V brush motor $846.89 1 (for gas models) (includes 5b-5f) usually ships 10-16 days
5c 175-9269 Brush and spring assembly $29.26 1 usually ships 10-16 days
5d 175-9270 Brush cap $4.88 2 usually ships 10-16 days
5e 175-9271 Brush holder $22.33 2 usually ships 10-16 days
5f 175-9272 Clip $5.83 2 usually ships 10-16 days
6 175-9273 Roll pin $4.09 1 usually ships 10-16 days
7 175-2106 Cotter hair pin $4.09 1 ships same day
8 175-9274 Lift bracket weldment $36.41 1 usually ships 1-5 days
9 175-9275 GUIDE, SPRING, BRUSH, SIDE (Tennant Industrial) $18.67 2 usually ships 1-5 days
10 175-9276 Clevis pin 3/16 x 3/4 $4.88 3 usually ships 1-5 days
11 175-9277 Complete spring wire 47/64 x 7/64 $11.44 1 usually ships 1-5 days
12 175-9278 Spring strip (Tennant Industrial) $27.51 1 usually ships 1-5 days
13 175-9279 Cable bracket $18.37 1 usually ships 1-5 days
14 999-1280 Screw M12-1.75 x 80mm hex $4.88 2 usually ships 1-5 days
15 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
17 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 4 ships same day
18 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
