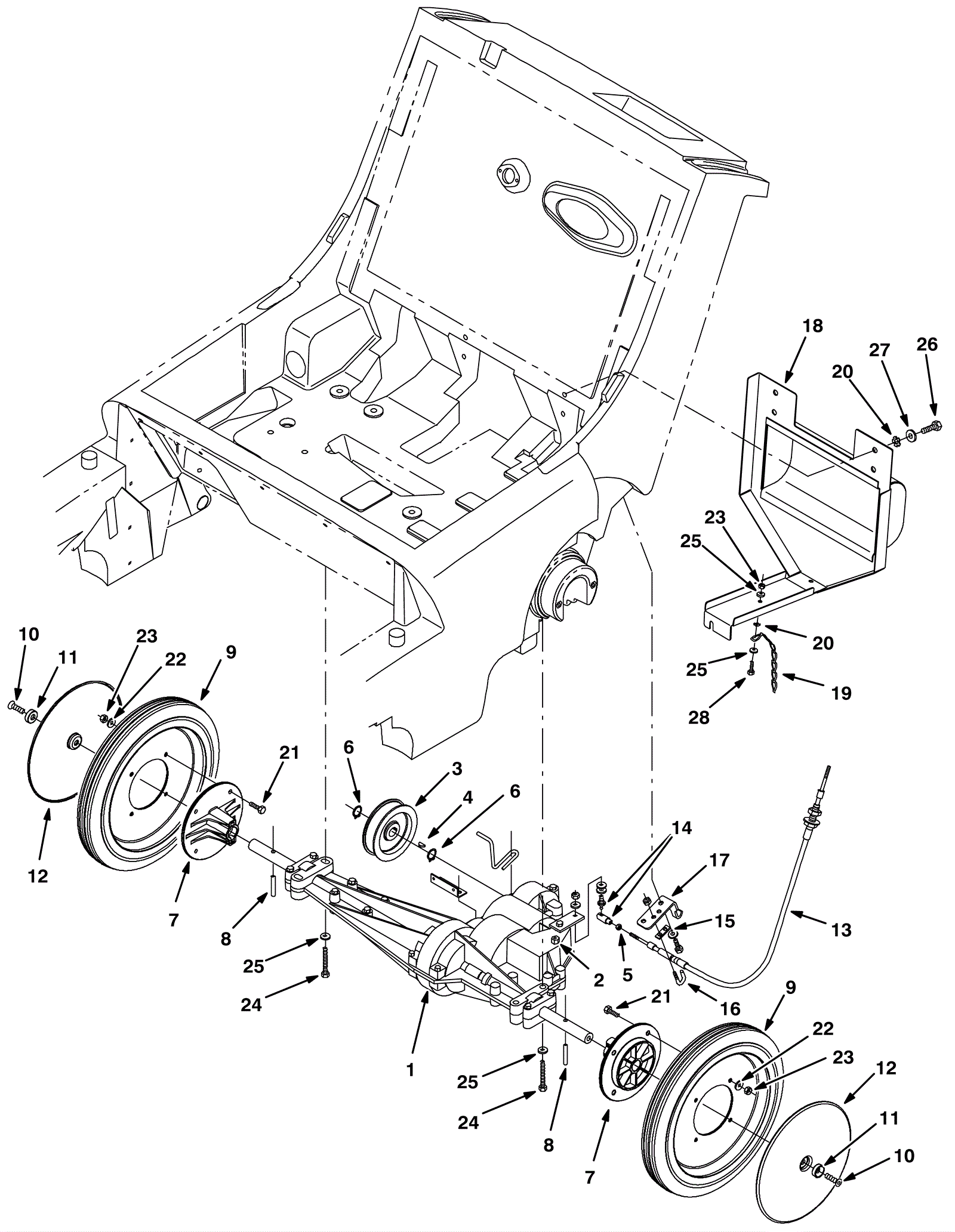

3640 BAT Drive System Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-9233 Transaxle kit assembly $1,016.73 1 (includes item 2) usually ships 5-16 days
2 175-9234 Relief fitting 1/8 $4.40 1 usually ships 1-5 days
3 175-9235 Flat shaft $104.94 1 usually ships 1-5 days
4 175-9159 Woodruff key $2.42 1 usually ships 1-5 days
5 999-0460 Nut 10-32 hex $0.99 1 ships same day
6 175-9236 Heavy duty retainer ring $3.30 1 usually ships 5-16 days
7 175-9237 Wheel hub $36.41 2 usually ships 5-16 days
8 175-9238 Dowel pin 1/4 x 1-1/2 $3.30 2 usually ships 5-16 days
9 175-9239 Tire and wheel assembly $64.79 2 usually ships 5-16 days
10 175-9240 Screw M8-1.25 x 25mm flat head socket nylok stainless steel $3.96 2 usually ships 5-16 days
11 175-9241 Washer M8 plated $4.95 2 usually ships 1-5 days
12 175-9242 Hubcap $28.60 2 usually ships 5-16 days
13 175-9243 Push pull shift cable $141.35 1 usually ships 1-5 days
14 175-9244 Balljoint $17.38 1 usually ships 1-5 days
15 175-5999 Cable support $6.27 1 usually ships 5-16 days
16 175-5998 Bolt $4.95 1 usually ships 1-5 days
17 175-9245 PLATE, MTG, CABLE (Tennant Industrial) $16.70 1 usually ships 1-5 days
18 175-9246 Backstop plate weldment $222.64 1 usually ships 1-5 days
19 175-2431 Brass static chain $18.81 1 usually ships 1-5 days
20 175-2893 Washer 5/16 internal/external locking $3.30 2 usually ships 5-16 days
21 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 8 ships same day
22 999-0016 Washer 1/4 flat plain finish $0.99 8 ships same day
23 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 9 ships same day
24 275-0417 Screw M6-1 x 50 hex head $3.19 4 usually ships 1-5 days
25 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
26 999-0783 Screw M8-1.25 x 16mm hex head $0.99 4 ships same day
27 999-0024 Washer 5/16 flat stainless steel $1.34 6 ships same day
28 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 1 ships same day
