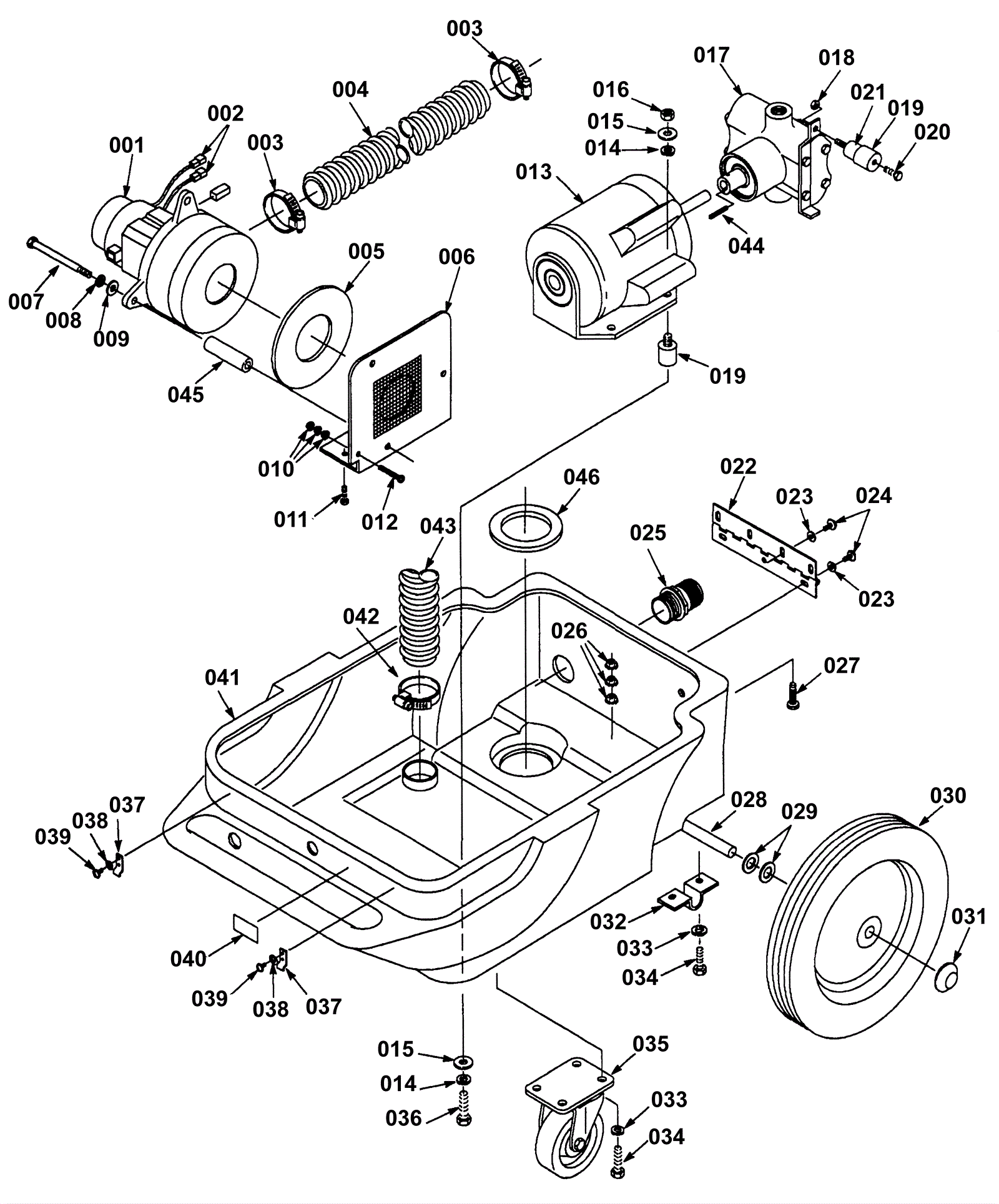

Lower Housing Assembly

#PartDescription ReqNotesAvailability
001a 175-6537 Vacuum motor 1 (OEM)
001b 991-1208 120V 2 stage vacuum motor peripheral 1 (NON-OEM)
001c 175-0251 Carbon brush (pkg of 2) 2
002 175-0142 1/4 inch male terminal 2
003 175-2057 Hose clamp 2
004 175-1876 Vacuum hose (OBSOLETE) 1
005 175-6085 Gasket 1
006 175-1878 Vacuum motor mounting bracket 1
007 999-0682 Bolt 1/4-20 x 3 1/2 hex head grade 5 zinc plated 3
008 999-0632 Washer 1/4 split lock stainless steel 3
009 999-0016 Washer 1/4 flat plain finish 3
010 999-0004 Nut 10-24 k-lock zinc plated 3
011 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
012 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 1
013 175-1885 1/3 HP pump drive motor 1
014 999-0553 Washer 5/16 medium split lock stainless steel 2
015 999-0024 Washer 5/16 flat stainless steel 2
016 999-0593 Nut 5/16-18 hex stainless steel 2
017 375-2583 Water pump kit 1
018 999-0593 Nut 5/16-18 hex stainless steel 1
019 175-1891 Motor mount 3
020 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 1
021 175-1893 Motor mount 1
022 175-6077 Tank hinge 1
023 999-0016 Washer 1/4 flat plain finish 7
024 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel 7
025 175-0203 Hose barb fitting 1
026 999-0356 Nut 10-24 lock stainless steel 3
027 999-1031 Screw 10-24 x 1 truss head phillips stainless steel 1
028 175-1900 Axle 1
029 999-0187 Washer 1/2 flat plain finish 4
030 175-1902 Wheel 2
031 175-6097 Hub cap 2
032 175-6098 Axle bracket 2
033 999-0632 Washer 1/4 split lock stainless steel 12
034 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 12
035 175-0888 4 inch swivel caster wheel 2
036 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 2
037a 175-3369 Hood latch 2
037b 991-8561 Rubber draw latch with keeper 2
038 999-1083 Washer #8 internal star lock stainless steel 4
039 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 4
040 175-1912 Chemical decal 1
041a 175-1913 Chassis (green) 1
041b 175-1914 Chassis (blue) (OBSOLETE) 1
041c 175-1915 Chassis (teal) 1
042 175-2057 Hose clamp 1
043 175-1917 Hose 2 x 28 inch 1
044 175-1918 Square keyway 1
045 175-1919 Spacer 3
046 175-1920 Vacuum motor intake gasket 1
