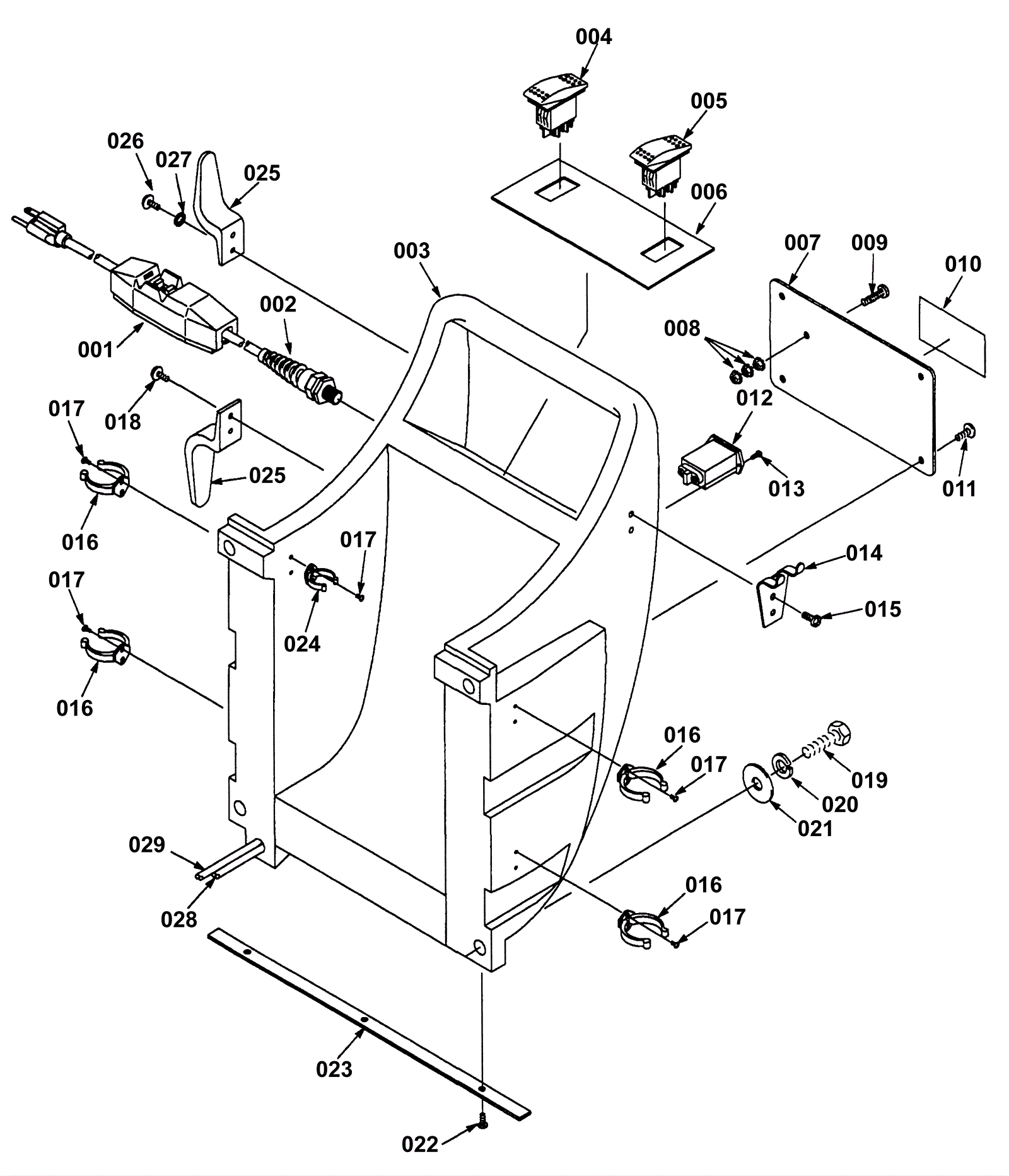

Handle Assembly

#PartDescription ReqNotesAvailability
001 175-1843 14/3 power cord 25 feet with GFCI 1
002 175-0001 Strain relief 1
003 175-1845 Handle (teal) 1
004 175-1008 Rocker switch 1 (pump)
005 175-1847 Rocker switch 1 (vacuum and blower)
006 175-1848 Dash decal 1
007 175-1849 Rear cover plate (black) (OBSOLETE) 1
008 999-0356 Nut 10-24 lock stainless steel 3
009 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 1
010 175-1852 Warning decal (OBSOLETE) 1
011 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel 4
012 275-6915 Hourmeter gauge 1
013 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 2
014 175-6069 Drain hose bracket 1
015 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 2
016 175-1858 Wand clip 4
017 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 10
018 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel 2
019 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 4
020 999-0034 Washer 3/8 split lock plain finish 4
021 999-0617 Washer 3/8 x 1 flat stainless steel 4
022 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 3
023 175-1865 Wand stop plate 1
024 175-1866 Telescoping wand clip 1
025 175-1756 Cord hook 2
026 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel 2
027 999-0311 Washer #10 external star lock zinc plated 2
028 175-1870 Cord assembly (black) 1
029 175-1871 14/3 power cord 63 inch (black) 1
