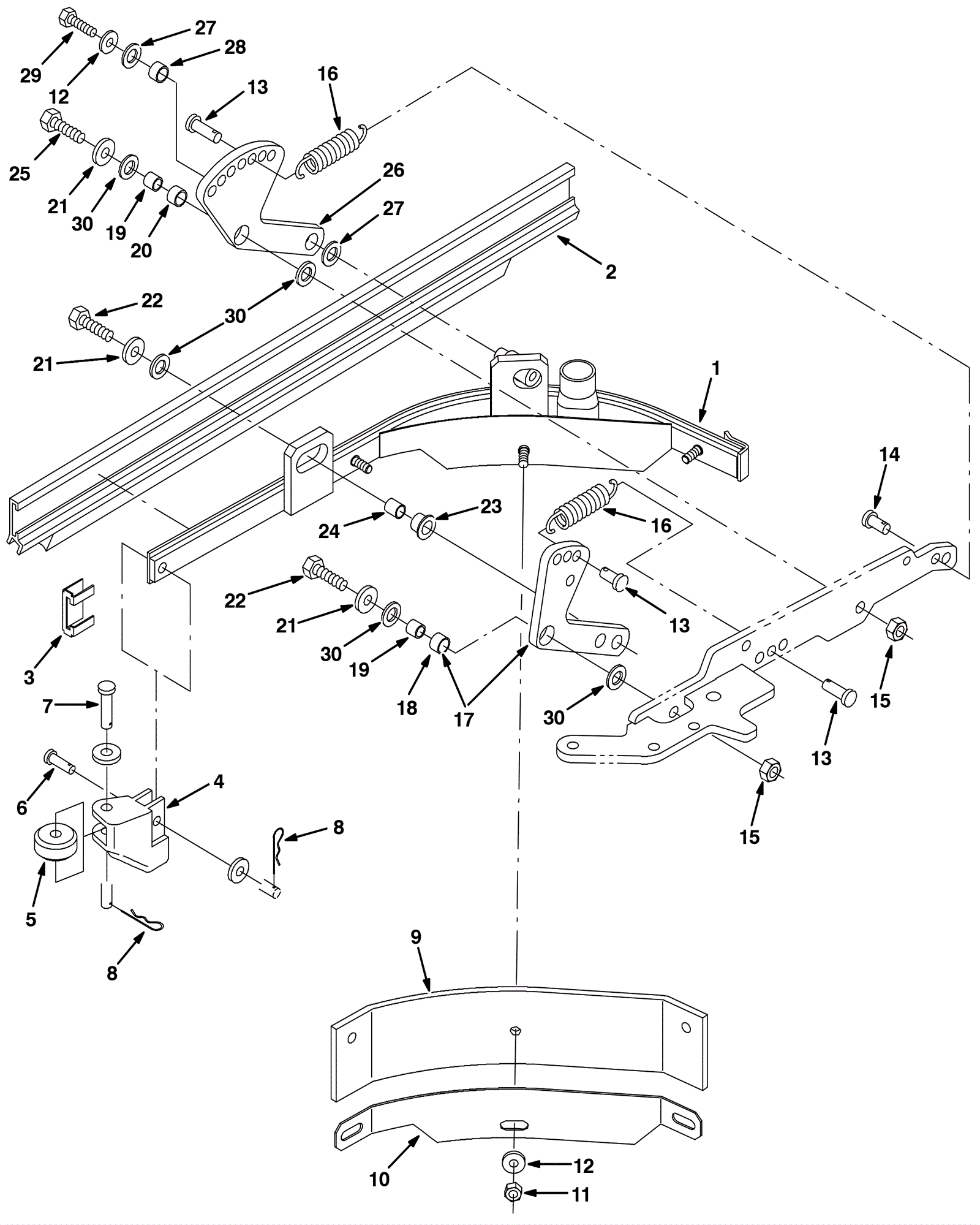

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-5434
|
SQUEEGEE ASSY, FRAME (Tennant Industrial) |
1 |
|
|
2a |
675-1314
|
BLADE ASSY, SQGE, SIDE 23.8L (Tennant Industrial) |
1 |
|
|
2b |
675-0608
|
BLADE ASSY, SQGE, SIDE, URE, RH [MP1200] (Tennant Industrial |
1 |
|
|
3 |
175-3357
|
Squeegee blade retainer |
1 |
|
|
4 |
575-6796
|
GUIDE, SQGE, SIDE (Tennant Industrial) |
1 |
|
|
5 |
575-3317
|
ROLLER, PYE, 1.50D 0.39B 0.68L (Tennant Industrial) |
1 |
|
|
6 |
175-3351
|
Clevis pin |
1 |
|
|
7 |
175-2111
|
Clevis pin |
1 |
|
|
8 |
175-7107
|
Cotter hair pin |
2 |
|
|
9 |
575-7703
|
BLADE, SQGE, .25 3.00W 014.1L, linatex (Tennant Industrial) |
1 |
|
|
10 |
575-6078
|
RETAINER, BLADE, SQGE, RH [MAXPRO] (Tennant Industrial) |
1 |
|
|
11 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
3 |
|
|
12 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
|
13 |
275-2753
|
PIN, CLEVIS, 0.38D X 1.13L (Tennant Industrial) |
3 |
|
|
14 |
275-0146
|
PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) |
1 |
|
|
15 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
|
16 |
175-0770
|
Extension spring |
2 |
|
|
17 |
575-9044
|
ARM ASSY, SQGE, SIDE, FRONT (OBSOLETE) |
1 |
(includes 18) |
|
18 |
175-3349
|
Sleeved bushing |
1 |
|
|
19 |
175-9532
|
Bearing sleeve 5/8 x 33/64 |
2 |
|
|
20 |
175-3349
|
Sleeved bushing |
1 |
|
|
21 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
3 |
|
|
22 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
23 |
575-0765
|
BUSHING, FLNG, 0.63B 0.75D 0.50L (Tennant Industrial) |
1 |
|
|
24 |
575-2143
|
TUBE, 0.41ID 0.62OD 00.6L, SS, CHAM (OBSOLETE) |
1 |
|
|
25 |
999-0246
|
Bolt M10-1.5 x 35mm hex head full thread |
1 |
|
|
26 |
575-9596
|
BELLCRANK, SQGE, REAR, LH (OBSOLETE) |
1 |
|
|
27 |
175-3354
|
Thrust washer |
2 |
|
|
28 |
175-3355
|
Sleeved bushing |
1 |
|
|
29 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
1 |
|
|
30 |
175-3347
|
Washer .61 thrust |
5 |
|
|
