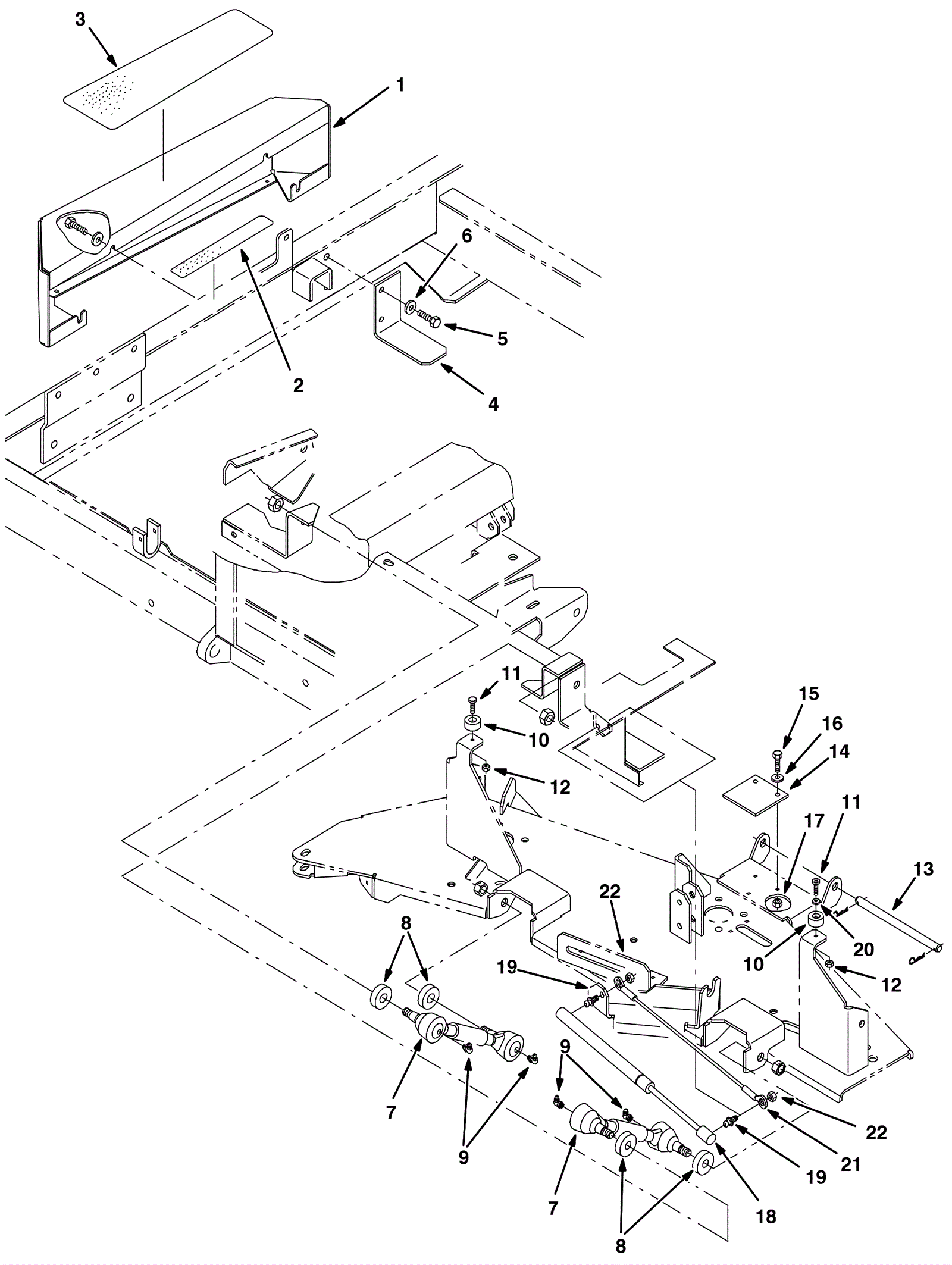

8210 Three-Brush Scrub Head Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-6025 Side bumper (OBSOLETE) Call for price 1 usually ships 5-16 days
2 475-8859 TREAD, NON-SKID, 01.4W 12.0L (Tennant Industrial) $5.17 1 usually ships 5-16 days
3 575-0336 TREAD, NON-SKID, 04.8W 15.0L (Tennant Industrial) $8.68 1 usually ships 5-16 days
4 375-6026 Up-stop angle (OBSOLETE) Call for price 1 usually ships 5-16 days
5 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
6 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
7 275-2563 Rod-end link assembly (Tennant Industrial) $193.54 2 usually ships 1-5 days
8 275-2563 Rod-end link assembly (Tennant Industrial) $193.54 4 usually ships 1-5 days
9 275-8601 FITTING, GREASE, E90 PM04 .75L (Tennant Industrial) $9.17 4 usually ships 1-5 days
10 275-2163 BUMPER, RBR, 1.0D 0.50TH 0.22H (Tennant Industrial) $8.84 2 usually ships 1-5 days
11 999-1671 Screw M5-.8 x 20mm pan head phillips stainless steel $0.99 2 ships same day
12 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
13 575-0205 PIN, 0.50D 07.5L, 2/.15H, 2CHAM (Tennant Industrial) $8.02 1 usually ships 5-16 days
14 575-2527 PLATE, WEAR [UHMW] (Tennant Industrial) $34.24 1 usually ships 5-16 days
15 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
17 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
18 175-0765 Gas spring, 56lb, 6.3 stroke (Tennant Industrial) $159.53 1 usually ships 5-16 days
19 175-0761 Gas spring ball stud $8.14 2 usually ships 5-16 days
20 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
21 175-0766 CABLE, GLV .13D 015.5L .50EYE /.50EYE (Tennant Industrial) $50.01 1 usually ships 1-5 days
22 175-0762 NUT, RETAINER, .31-18 (Tennant Industrial) $23.34 2 usually ships 1-5 days
