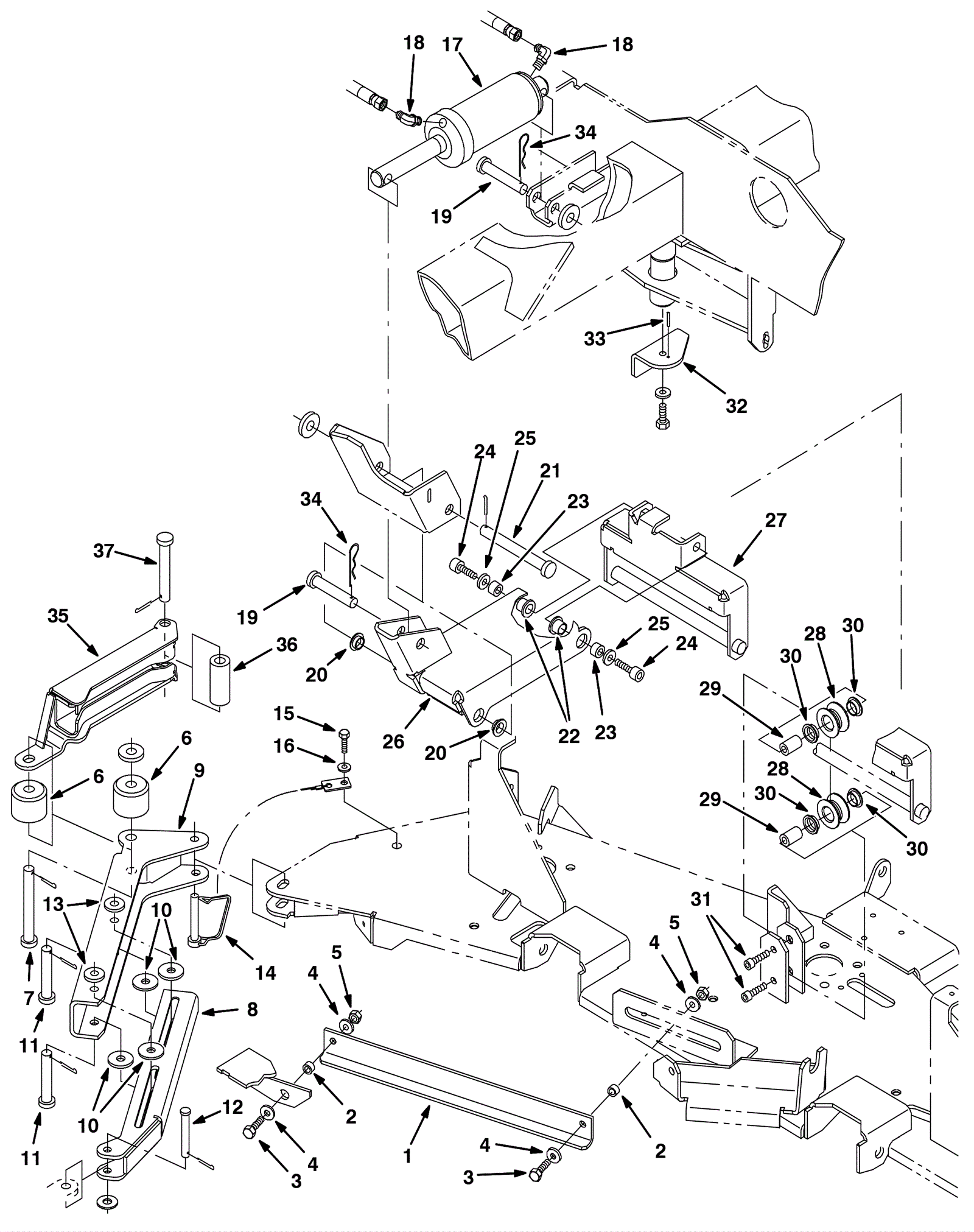

8210 Three-Brush Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 575-3042 BRACKET, ANGLE, STOP, SCB HEAD (Tennant Industrial) $43.18 1 usually ships 5-16 days
2 175-2249 Sleeve $3.83 2 ships same day
3 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
4 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
5 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
6 575-3685 ROLLER, PYE, 1.75D 0.52B 1.22L (Tennant Industrial) $25.22 2 usually ships 5-16 days
7 575-2286 PIN, CLEVIS, 0.50D X 3.75L (Tennant Industrial) $64.13 1 usually ships 5-16 days
8 575-8483 CHANNEL, INNER, GUARD, 3 BRUSH HEAD (Tennant Industrial) $147.46 1 usually ships 5-16 days
9 675-0428 CHANNEL, OUTER, GUARD, 3-BRUSH HEAD (Tennant Industrial) $231.80 1 usually ships 5-16 days
10 375-0403 Flat washer (Tennant Industrial) $10.00 4 usually ships 1-5 days
11 175-0743 PIN, CLEVIS, 0.38D X 2.50L (Tennant Industrial) $9.17 2 usually ships 1-5 days
12 175-2592 Clevis Pin 0.37 D X 1.75 L $4.88 1 ships same day
13 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
14 275-6555 Pin assembly (Tennant Industrial) $35.51 1 usually ships 1-5 days
15 175-6939 Screw M5 x 16mm stainless steel $3.70 1 ships same day
16 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
17 175-6917 Cylinder (Tennant Industrial) $340.90 1 usually ships 5-16 days
18 175-6919 Elbow fitting $14.30 2 usually ships 5-16 days
19 175-2382 Clevis pin $5.50 2 usually ships 5-16 days
20 175-3335 Flanged bushing $15.73 2 usually ships 1-5 days
21 175-0720 Clevis pin 1/2D x 5 1/2 $6.82 1 usually ships 5-16 days
22 175-2099 Flanged bushing $9.35 2 ships same day
23 175-0755 Sleeve $5.61 2 usually ships 5-16 days
24 475-9673 SCREW, SOC, M8 X 1.25 X 20, 12.9 (Tennant Industrial) $13.36 2 usually ships 5-16 days
25 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
26 675-5252 ARM WLDT, LIFT, SCB HEAD, 3 BRUSH (Tennant Industrial) $858.88 1 usually ships 5-16 days
27 675-3821 ARM WLDT, LIFT, SCB HEAD (Tennant Industrial) $558.28 1 usually ships 5-16 days
28 175-0753 ROLLER, V-GROOVE, 1.5D 0.72B 0.8L [STL] (Tennant Industrial $61.51 2 usually ships 1-5 days
29 175-2563 Sleeve $4.75 2 usually ships 5-16 days
30 175-2099 Flanged bushing $9.35 4 ships same day
31 475-9347 SCREW, SOC, M8 X 1.25 X 45, 12.9 (Tennant Industrial) $29.17 2 usually ships 5-16 days
32 575-2483 ANGLE, REAR, 3 BRUSH HEAD (Tennant Industrial) $60.96 1 usually ships 5-16 days
33 475-8086 PIN, ROLL, .125D X 0.75L, .125/.129 (Tennant Industrial) $4.60 1 usually ships 5-16 days
34 175-2117 Cotter pin $4.88 2 ships same day
35 675-4359 GUARD WLDT, SQGE, RH (Tennant Industrial) $636.94 1 usually ships 5-16 days
36 575-1764 ROLLER, PYU, 0.98D 0.51B 2.28L (Tennant Industrial) $17.20 1 usually ships 5-16 days
37 175-2591 Clevis pin $5.50 1 usually ships 1-5 days
